SOLD
BISST-195 *MIS-PAINT*
BISST-195 *MIS-PAINT* - Image 2
BISST-195 *MIS-PAINT* - Image 3
BISST-195 *MIS-PAINT* - Image 4
BISST-195 *MIS-PAINT* - Image 5

BISST-195 *MIS-PAINT*

MIS-PAINTED Bison 78″ Tiller | Univ. Skid | 0″-6″ Depth | 22-41 GPM | Dual Motors | Bi-Direct Rot

$6,570.00

Weight: 745lbs

MIS-PAINTED Bison 78″ Tiller | Univ. Skid | 0″-6″ Depth | 22-41 GPM | Dual Motors | Bi-Direct Rot

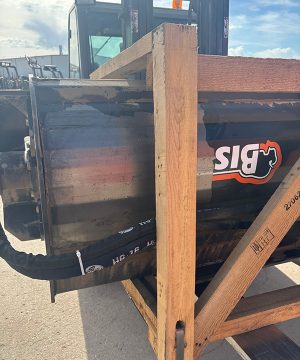

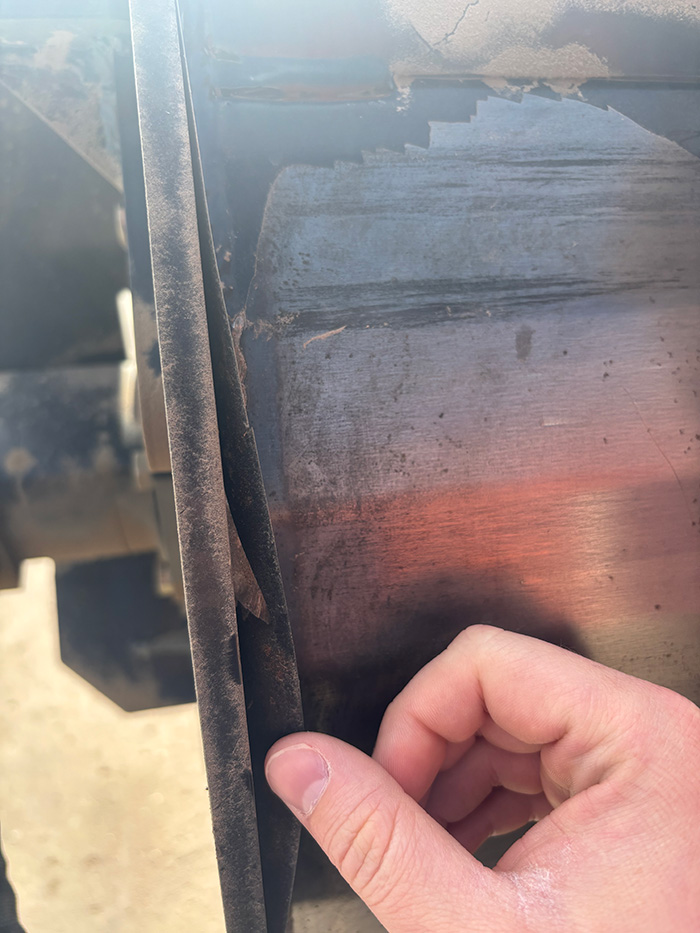

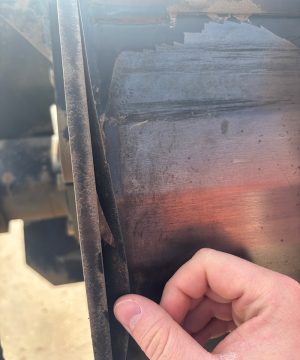

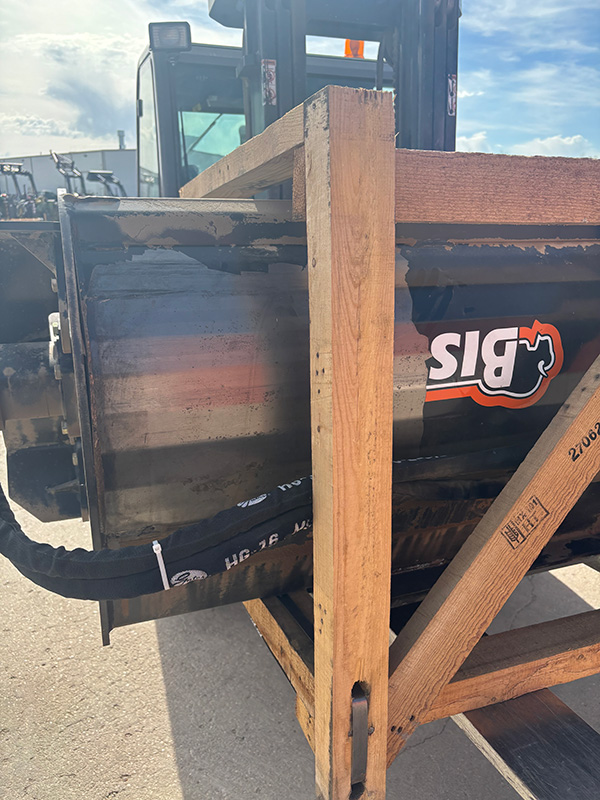

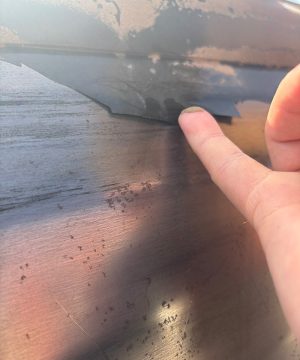

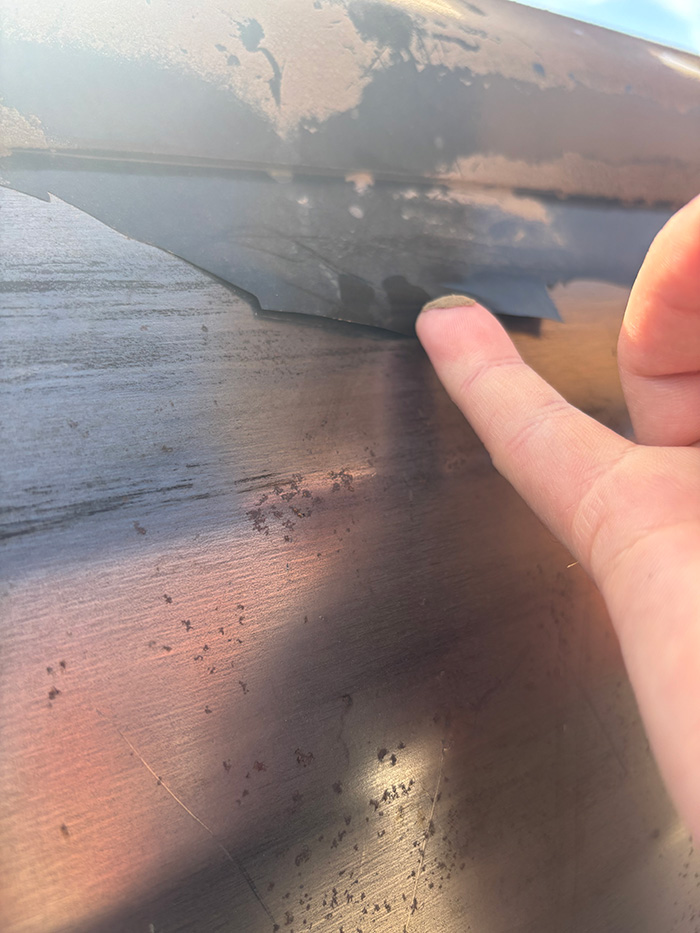

*MIS-PAINT – This Unit Did Not Get Fully Painted In Some Areas & Is Chipping.

*Includes Flat Face Couplers



Bison Tillers

• Depth Indicator – Know what depth of soil you are tilling
• Bi-Directional – Choose forward or reverse tilling by reversing hydraulic flow
• Multiple Models – Low flow and high flow allow these tillers to fit a variety of skid steers
• Skid Shoes – Replaceble for optimal state of use
• Spiral Rotor Design – Reduces vibration and strain
• Reversible Hardened Boron Steel Tines – Both sides sharpened for forward or reverse tilling, can be rotated if used for one direction primarily

SPECIFICATIONS
Model 72″ 78″ 84″
Overall Width 85″ 91″ 97″
Tilling Width 71.2″ 77.5″ 83.5″
Tilling Depth 0″ – 6″ 0″ – 6″ 0″ – 6″
Overall Height 18″ 18″ 18″
Number of Tines 44 48 52
Tine Rotation Bi-Direction Bi-Direction Bi-Direction
Weight 710 lbs. 745 lbs. 780 lbs.
Drive Line 2 motors 2 motors 2 motors
Hydraulic Flow Needed (gpm) 16-28 22-41 28-45
Hydraulic Pressure Needed (psi) 2500 3000 3500
Drive Direct Direct Direct

Is This A Right Hand Or Left Hand Tiller Blade?

Step 1: Remove the tiller blade from the tiller.

Step 2: Hold the tine so that it dangles from the bolt holes.

Step 3: Holding the blade in front of you, turn it so that the cutting edge faces you. If the blade curves to the left, it’s a left-hand blade.

Weight 745 lbs
