WLLBH316G
Baumalight Log Grapple | Bobcat MT Mini Skid | 12-45 HP | 5-20 GPM | Opens 39.65″ | Chain Rotation
$4,070.00
Weight: 705lbs

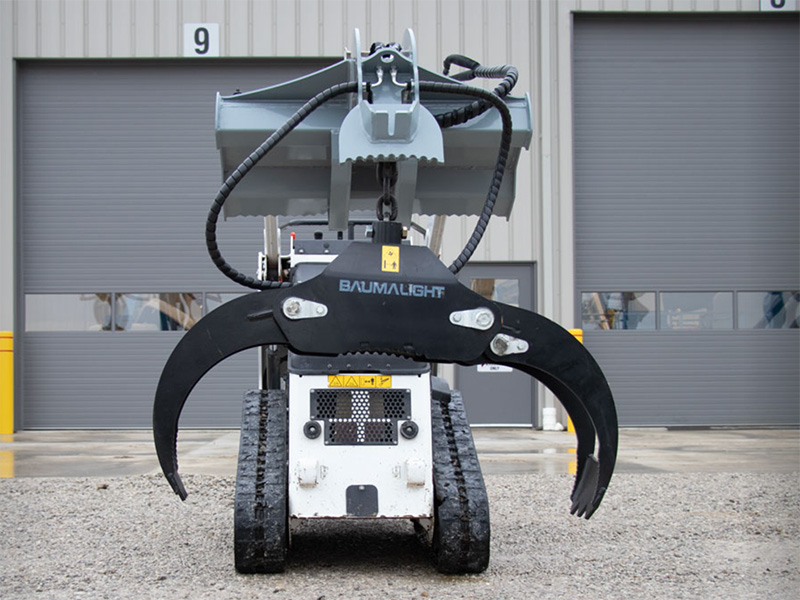

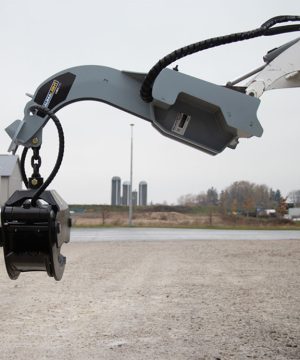

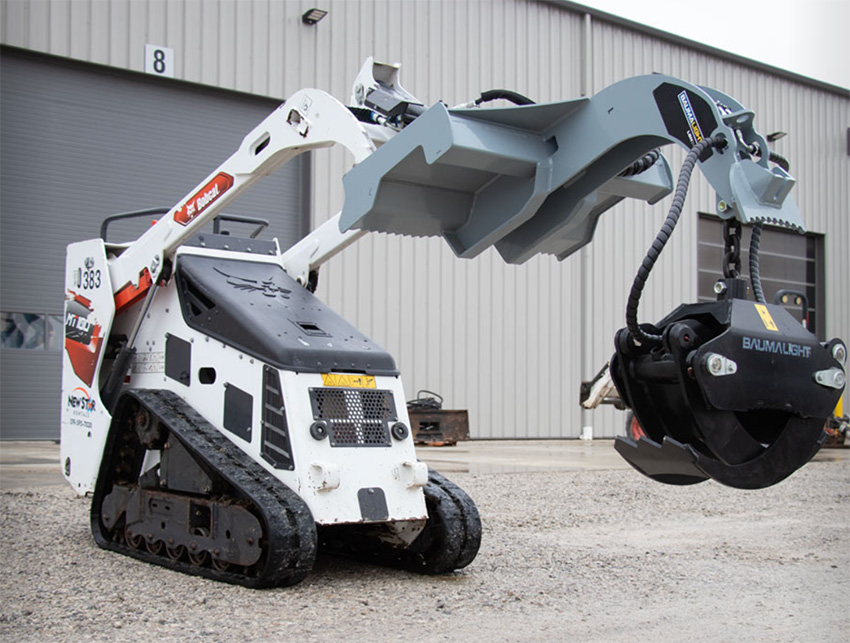

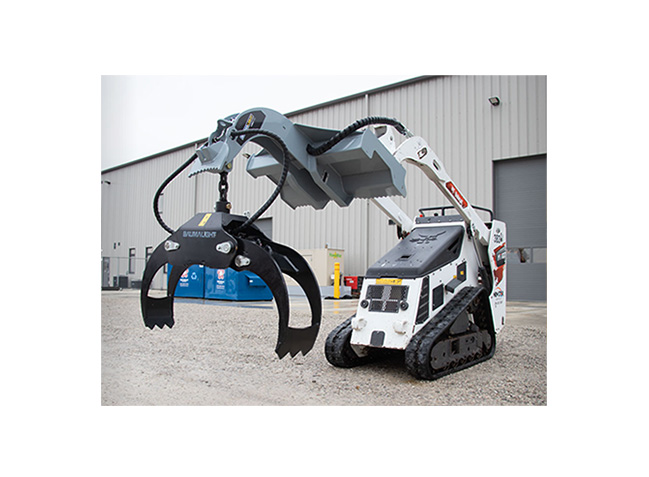

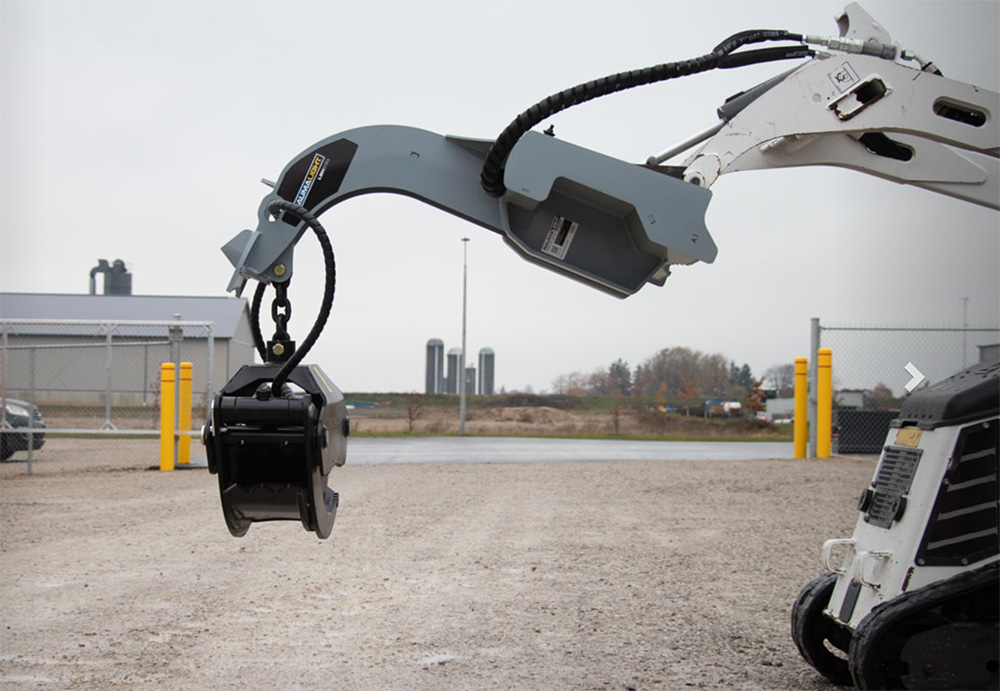

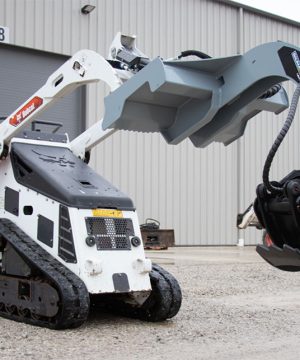

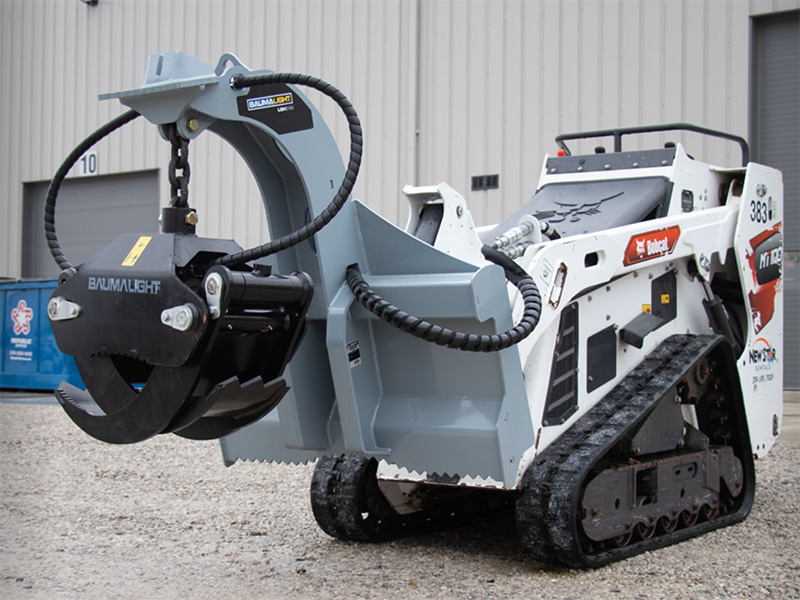

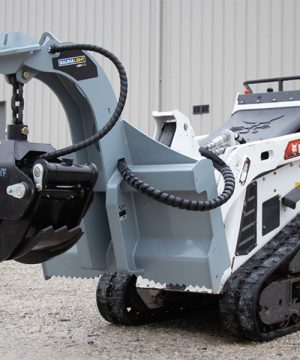

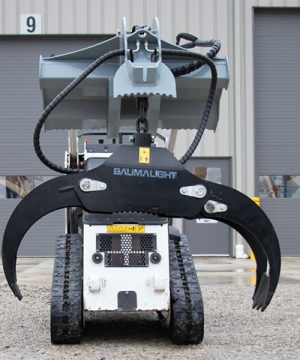

LBH316G Log Grapple â Bobcat Mini Skidsteer Forestry Attachment
The Baumalight LBH316G Log Grapple is a powerful mini skidsteer forestry attachment designed for handling logs, brush, and heavy debris with ease. Built for durability and efficiency, this grapple helps you tackle land clearing, woodlot management, and cleanup jobs with confidence.
Baumalight Bobcat MT Mini Skid Mounted Log Grapples
- Engine HP Range: 12-45
- Recommended Hydraulic Flow: 5-20 gpm
- Grapple Opening: 39.65â
- Grapple Rotation: Chain
- Clamp Force: 19792 lbs at 2800 psi
- Total Weight: 377.3 lbs (171.14 kg)
- Dimensions (LxWxH): 29â x 34.1â x 45â (73.66 cm x 79 cm x 114.3 cm)
- Mounting System: Common Bobcat MT Mini Skidsteer interface
- Min/Max log holding size : 4â-16â
Armoured & Sleeved Hydraulic Hoses
All hydraulic hoses are fully protected with armour and sleeves for maximum durability. This prevents damage from debris and wear, extending service life even in rugged conditions.
Heavy-Duty Jaw Operating Cylinder
The robust jaw cylinder provides strong clamping force for gripping large logs securely. Its heavy-duty design ensures long-lasting performance under tough working environments.
Durable Powder-Coated Finish
A premium powder-coated finish protects against rust, chips, and harsh weather. This durable coating keeps the grapple looking and performing like new over time.
AR400 Steel Jaws & Main Frame
Constructed from AR400 high-strength steel, the jaws and frame deliver maximum toughness. This ensures long wear life and resistance to bending or breaking in heavy-duty use.
Grease Pins on all Pivot Points
The Mini Dumper features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
Hardened Steel Bushings
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
| Weight | 705 lbs |
|---|
