Name: BNFL4814
SKU: 20846
Price: 23585.00 USD
Availability: InStock

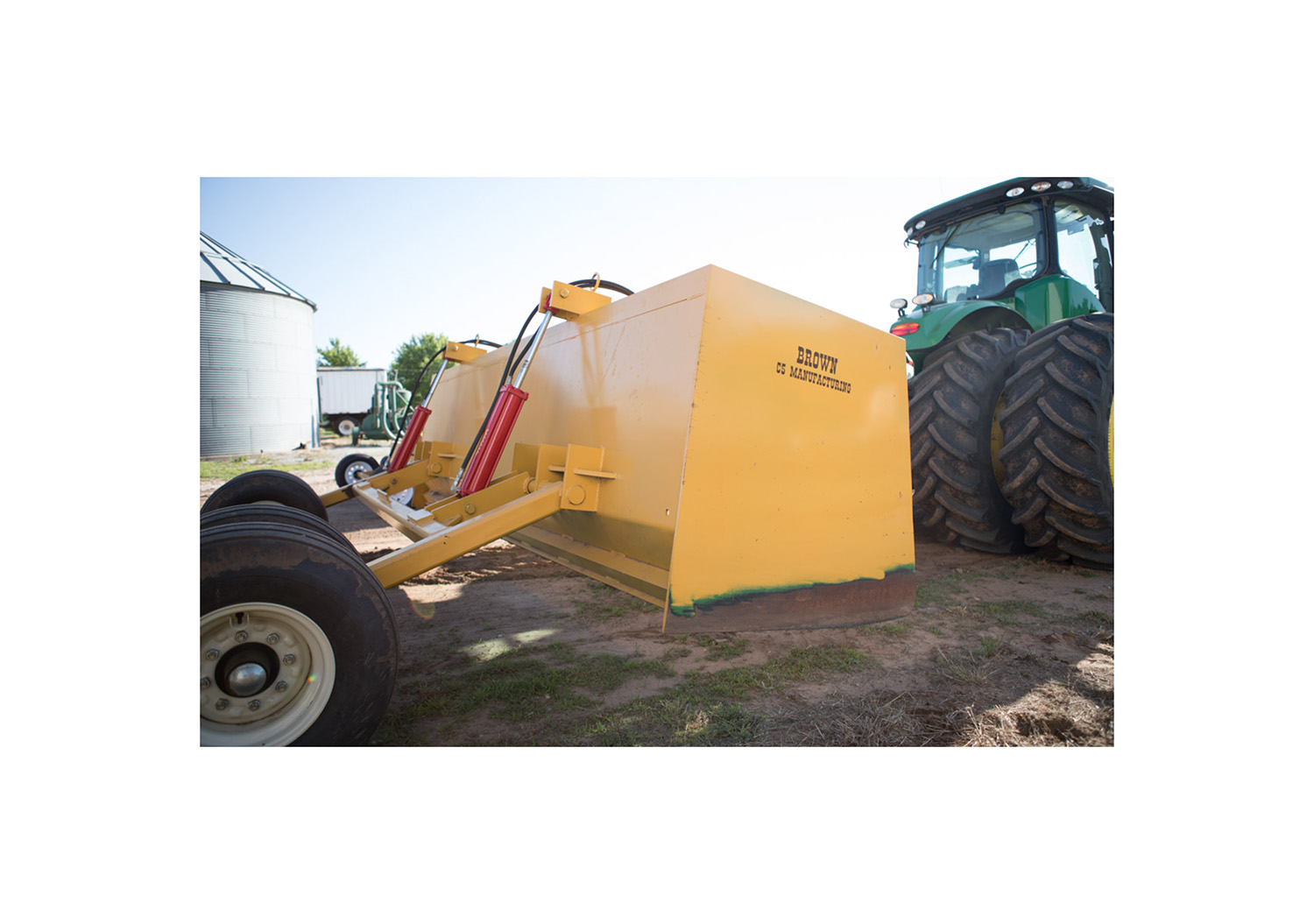

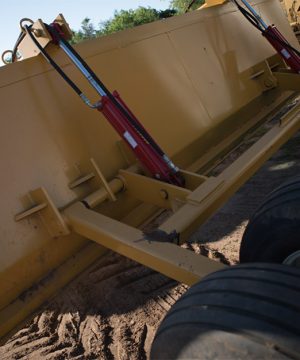

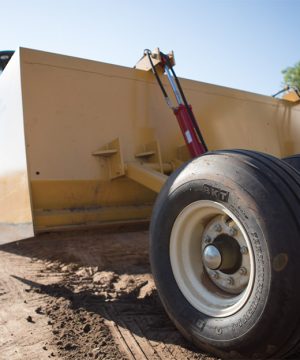

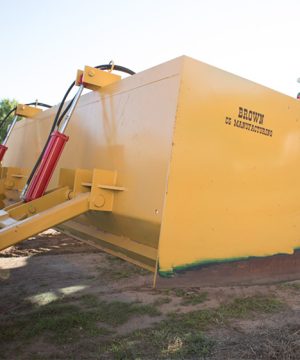

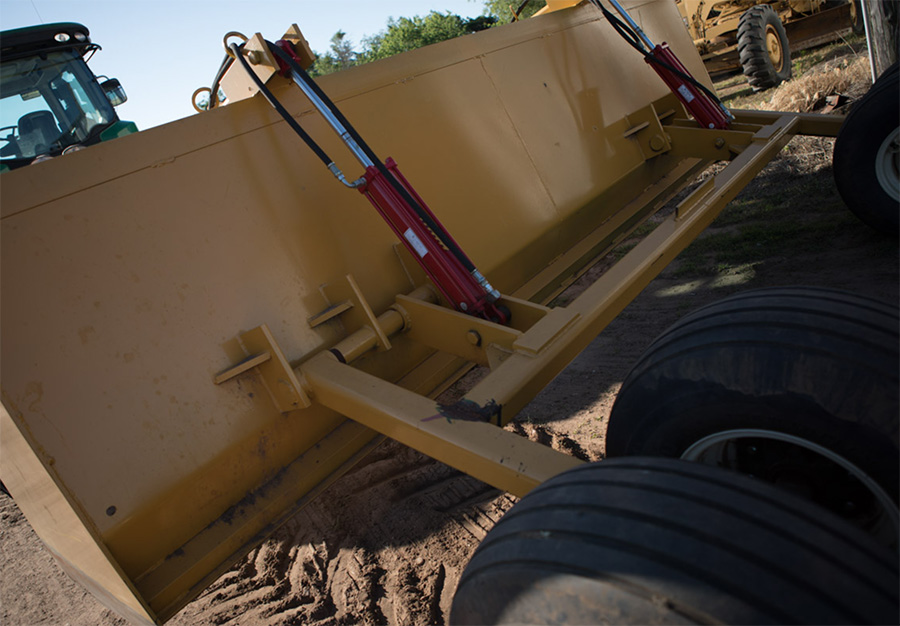

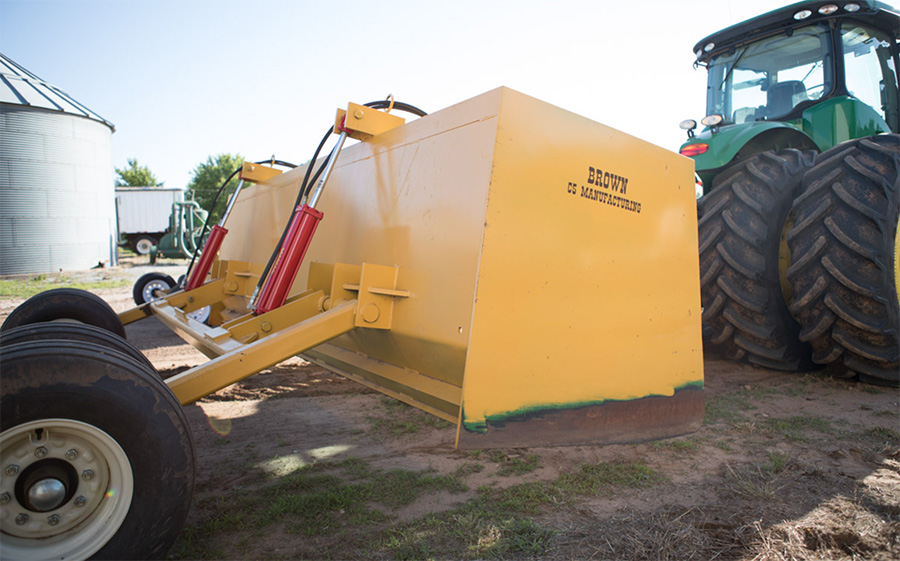

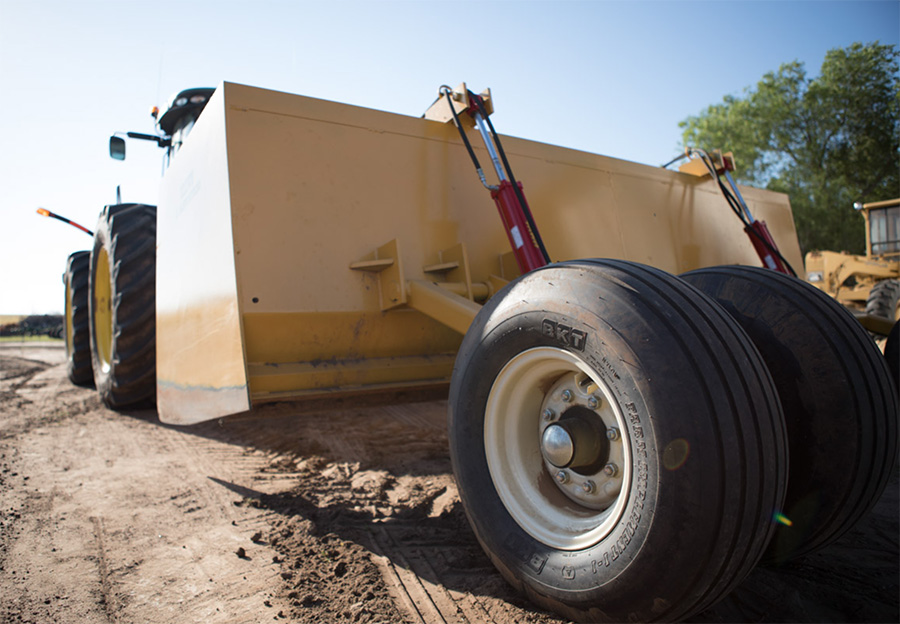

Brown 14′ HD Industrial Feedlot Scraper | Lift Inc-Tilt Opt. | 150+ HP | Dual Wheels

*Includes (2) 4″ x 18″ Lift Cylinders & Hoses

Overview
Tilt Option


Model	Mini Movers	Utility	Husky	Industrial	Industrial Max Feedlot
Widths	4′ – 8′	8′ – 12′	8′ – 14′	10′ – 14′	10′ – 14′
Lift/Tilt	Lift Only	Lift Only/Lift & Tilt	Lift Only/Lift & Tilt	Lift Only/Lift & Tilt	Lift Only/Lift & Tilt
HP Rating	25-75 HP	45-125 HP	65-150 HP	150+ HP	150+ HP
Height	18″ H	24″ H	24″ H	30″ H	48″ H
Depth	27″ Front To Rear @ Bottom 21″ Front To Rear @ Top	34″ Front To Rear @ Bottom 26″ Front To Rear @ Top	40″ Front To Rear @ Bottom 32″ Front To Rear @ Top	52″ Front To Rear @ Bottom 44″ Front To Rear @ Top	53″ Front To Rear @ Bottom 42″ Front To Rear @ Top
Back Plate	3/16″	3/16″	1/4″	1/4″	1/2″
End Plates	¼” Endplates With 2″ x 2″ x ¼” Braces	5/16” Endplates With 2″ x 2″ x ¼” Braces	3/8” Endplates With 2″ x 2″ x ¼” Braces	3/8” Endplates With 3″ x 3″ x 3/8″ Braces	1/2” Endplates With 4″ x 4″ x 1/2″ Braces
Clearance In Dump	11″	13″	15″	18″	28″ Lift Height
Wheels/Tires	New 4.8 x 8″ 5 Bolt Wheels/Tires	15″ Recap Imp Tires On New Wheels	15″ Recap Imp Tires On New Wheels	11L x 15, 8-Ply, 6 Bolt Wheels & Tires On 4000# Hubs & Spindles	12.5L – 15 12Ply Implement Tire/Wheels On 8 Bolt Hubs Dual Wheels On 14′ Models
Supports	3″ x 3″ x 3/8” Angle Iron Supports Under The Blade	3″ x 3″ x 3/8” Angle Iron Supports Under The Blade	3″ x 3″ x 3/8” Angle Iron Supports Under The Blade	Heavy Box Support Behind The Blade	Heavy Box Support Behind The Blade
Pull Tube/Hitch	4” Heavy Wall Pipe Pull & Cross Tube With Clevis Hitch	3/4″ Clevis Pull Hitch	3/4″ Clevis Pull Hitch	HD Ag Hitch	8″ x 8″ x 3/8″ Cross Tube & Pull Tube HD Ag Hitch
Special Feature(s)	–	Jack	Jack Weight Box	Jack	2-1/2 Axle Pivot Pin Jack
Options	–	–	–	Dual Wheel Package	–
