DA230220
Danuser Hydraulic Gate Kit | For Mega Mixers SN 3470+ | Inc Diverter Switch That Connects 12V In SS
$1,875.00
Weight: 112lbs

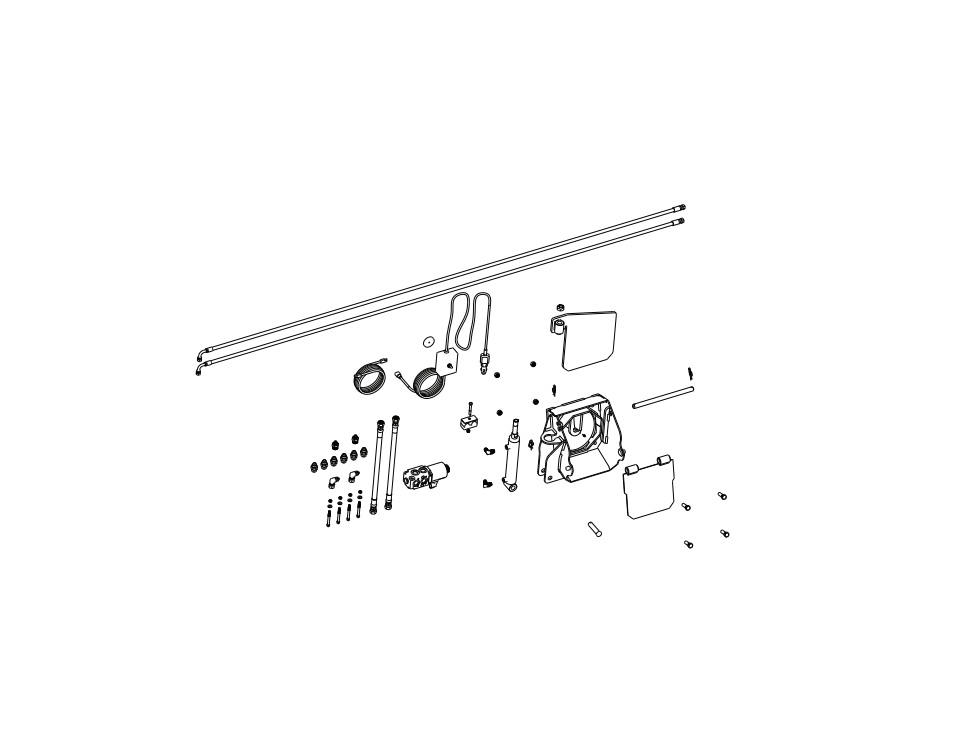

Danuser Mega Mixer Hydraulic GateÂ
Made For One Person Operation. Add To Any Mega Mixer With SN 3470 Or Above. Allows The Operator To Open & Close The Discharge Gate From The Seat Of The Vehicle. Includes Diverter Switch & Plug Adapter That Connects To A 12 V Auxiliary Power Outlet Inside The Cab.
Aux Wiring Harnesses
- Add An Optional Wiring Harness To Allow The Optional Hydraulic Gate To Operate From The Vehicle Joystick Controls. Wiring Harnesses Available Replace The Cigarette Lighter Plug On The Hydraulic Gate Standard Harness.Â
- Bobcat Has A 7-Pin Connector On Some Newer Skid Steer Units That Is Not Available Through Danuser, Contact Your Bobcat Dealer For A 7-Pin To 14-Pin Adapter
- All Wiring Harnesses Are 12″ In LengthÂ
- ** Requires Connector Contacts Be Installed In A Switchable +12V Pin Location & Ground Pin Location. Mapping Of Skid Steer Connector Pins Required.
Battery Wiring Harness
- Connect To Your Vehicle Battery To Supply Power For The Optional Hydraulic Gate Function. This Replaces The Cigarette Lighter Plug On The Hydraulic Gate Standard Harness.
14-Pin Wiring Harness | Used On:Bobcat (Prior to 99'),Case,Kubota,New Holland,Takeuchi,JCB, & Volvo
$192.00
| Weight | 112 lbs |
|---|
