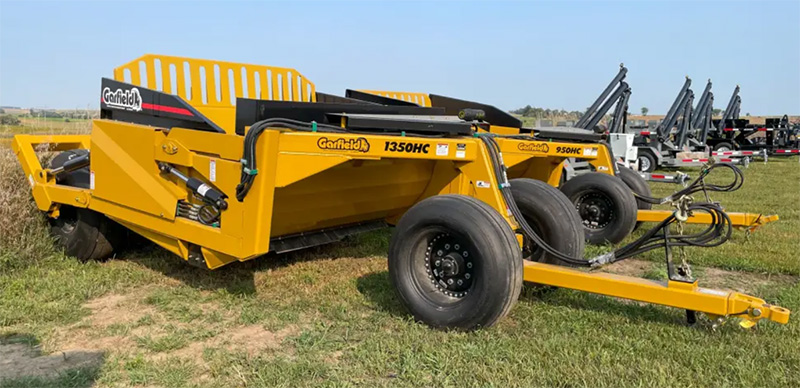

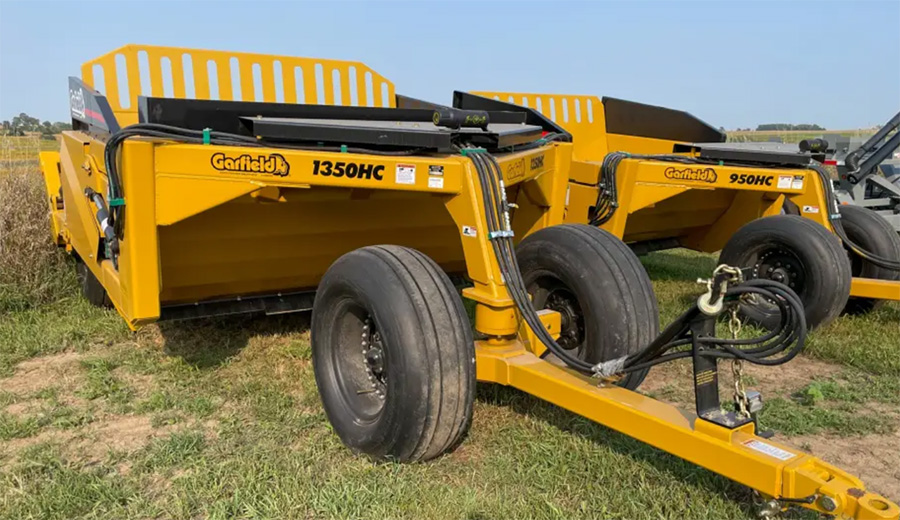

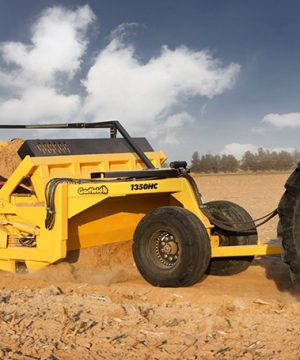

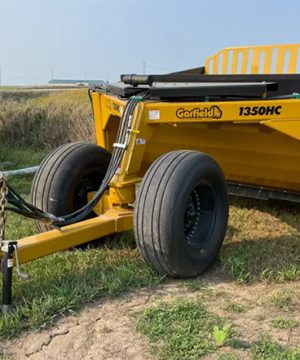

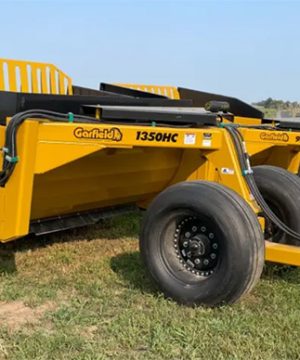

Garfield 1350 Ejection Scraper – 13 Yd | Req HP 200-300 | Overall Width 125″
*PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB FACTORY
*Unit Weight – 12,680 bs
*Pull Block Standard – Includes Wear Sleeve
FEATURES | GCA550 | GCA950HC | GCA1250HC | GCA1350HC |
---|---|---|---|---|
YD/Heaped Capacity | 5.5 | 9 | 12.5 | 13 |
YD/Struck Capacity | 4 | 6.4 | 9.63 | 10 |
IN/Cutting Width | 72″ | 84″ | 108″ | 108″ |
LB/Approx. weight | 5,260 | 9,259 | 12,131 | 12,680 |
IN/Overall width | 85″ | 99″ | 125″ | 125″ |
IN/Ground clearance | 10″ | 13.75″ | 16″ | 16″ |
HP/Power required | 80+ | 120-160 | 200+300 | 200+300 |
Tire Size Front | 11×15 | H40x14.5-19 (10 holes) | H44.5×16.5-21/10 | H44.5×16.5-21/10 |
Tire Size Rear | 12.5×16 | 40×14.5×19 (10 holes) | 20×20 | 20×20 |
Features

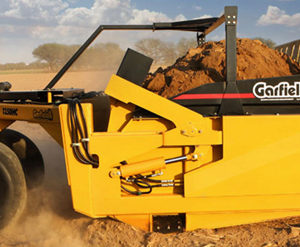

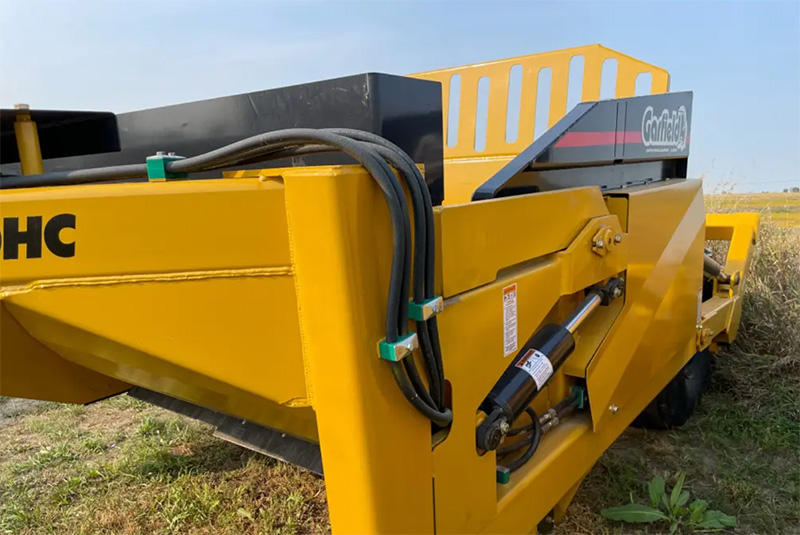

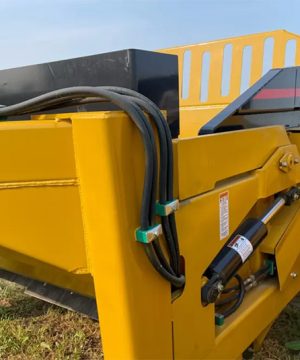

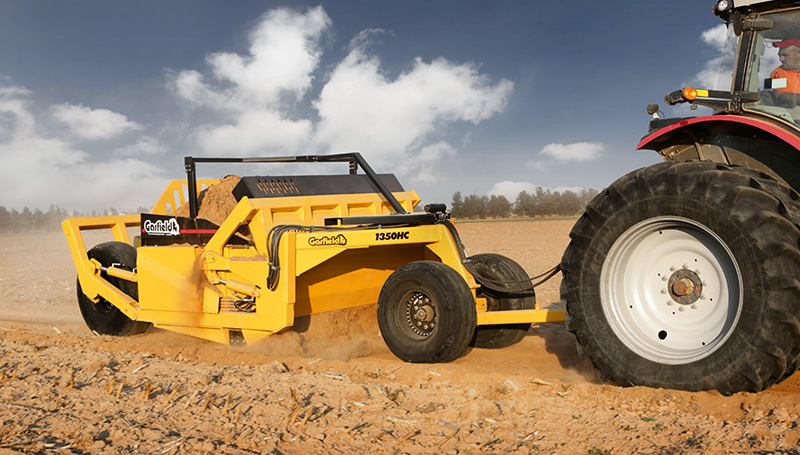

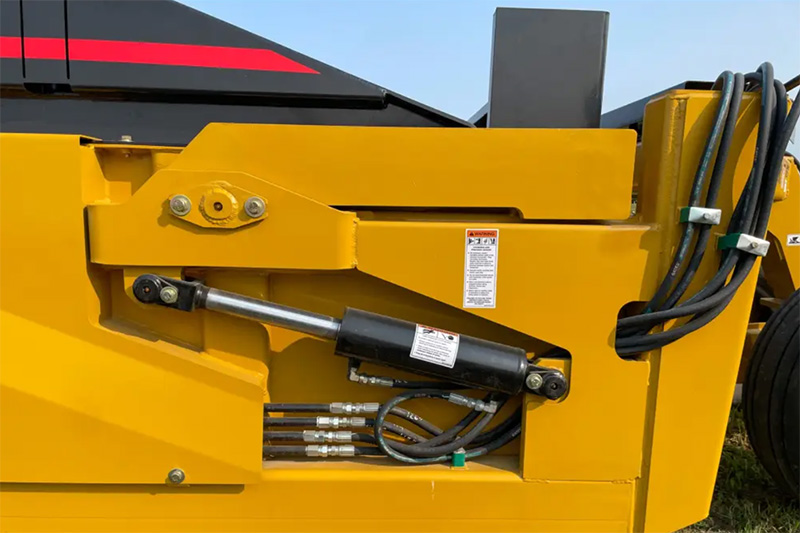

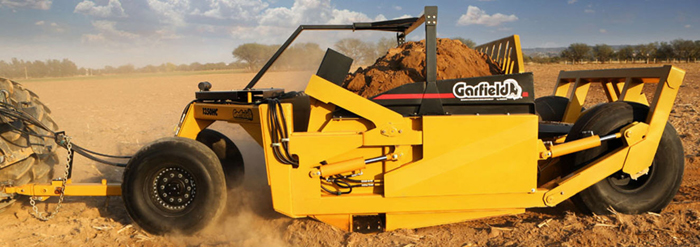

When you need to move a lot of material, the Garfield Ejection Scraper is the right machine for the job. The Garfield Ejection Scraper comes standard with hydraulically-operated rear gates using forward-forced straight ejection to achieve a smooth, even spread of material at the desired depth. The rear hinge design allows the bowl to set on the ground when loading, this makes loading require less horsepower than a traditional front hinge scraper. Optional Laser/gps mount, as well as tandem hitch, are available for all models.
The Garfield Ejection scraper is available in 4 sizes from 5 to 13 cubic yard capacity.
The Garfield Ejection Scraper Is the perfect tool for:
- Site prep
- Ditches
- Building ponds and dams
- Lowering large areas
- Filling large areas
- Terraces
- Waterways
Garfield’s Ejection Scrapers come standard with hydraulically-operated rear gates using forward-forced straight ejection which achieves smooth, even spread of material at the desired depth. Optional Laser control is available for all models.

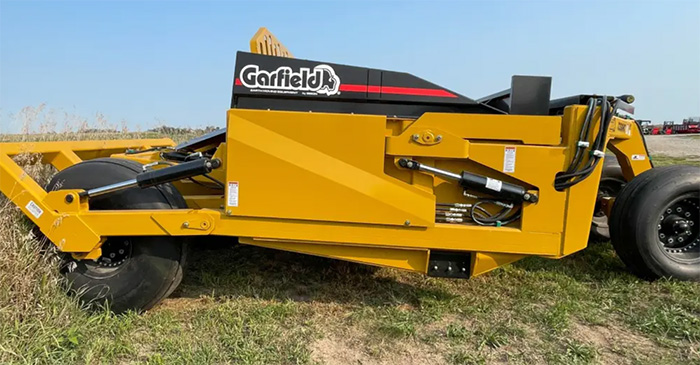

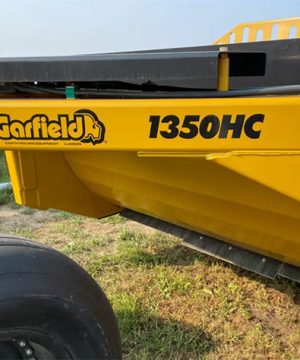

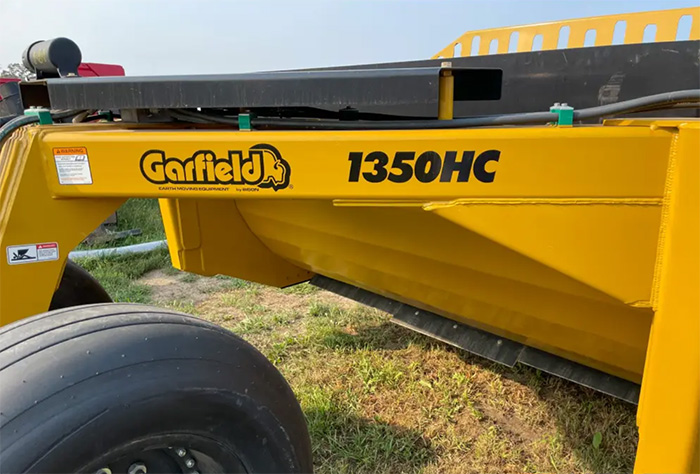

Model 1350 Details
- GPS and Lasercompatible.
- Heavy abrasion resistant T1 steel floor.
- High ground clearance.

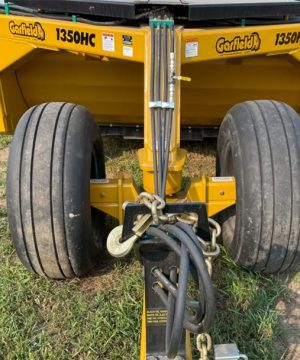

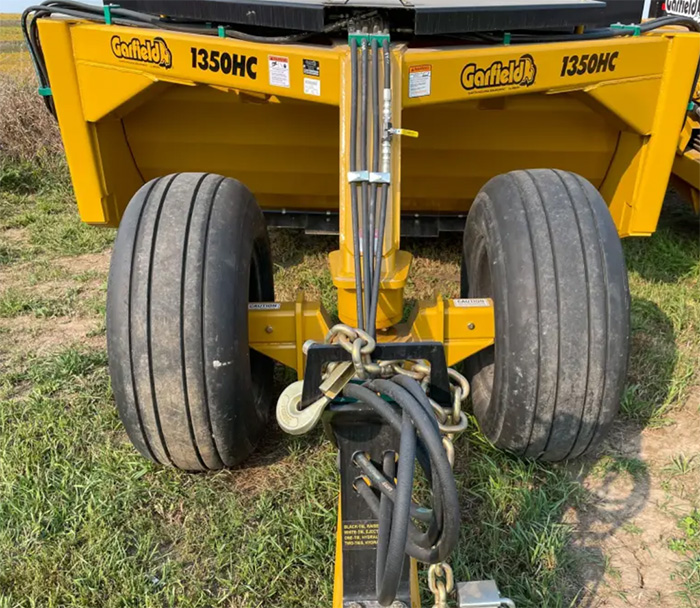

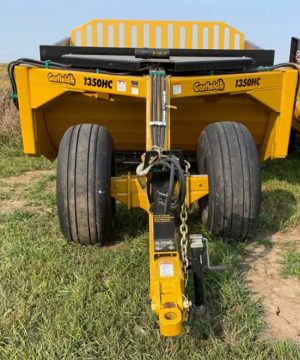

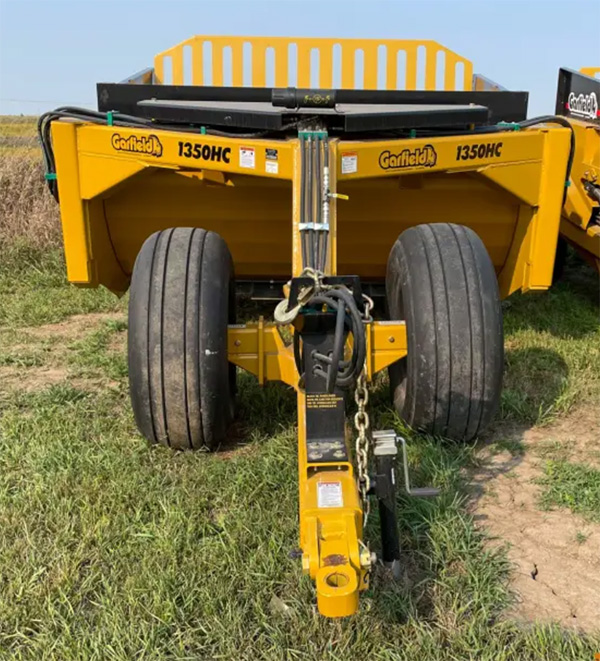

- Heavy 6″ ball allows smooth rotation of the dolly.

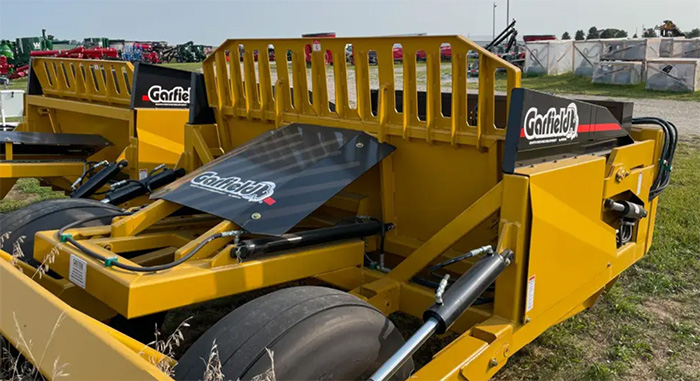

- Dolly allows the ability to pull two scrapers in
tandem, giving twice the capacity. - Giving you twice the capaity.

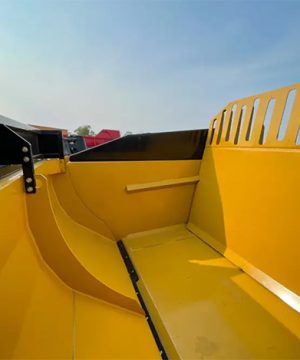

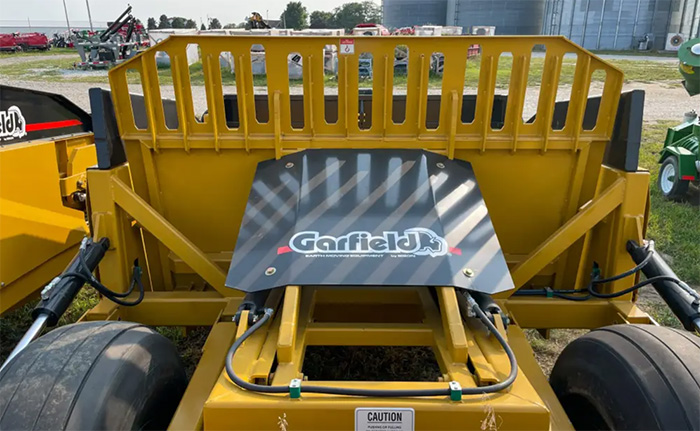

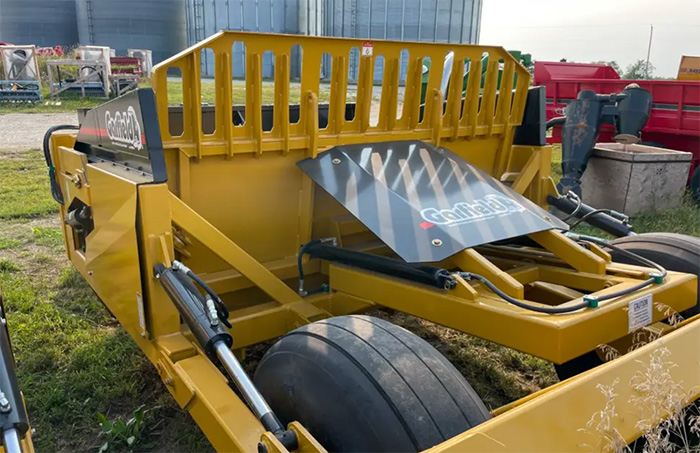

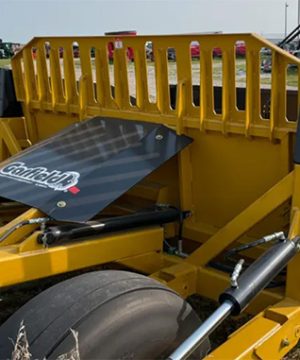

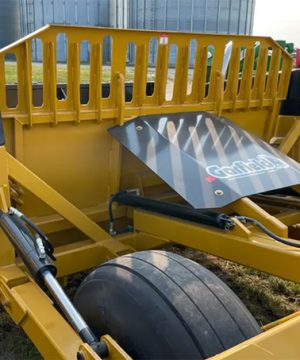

- Open top design allows for obstruction free top

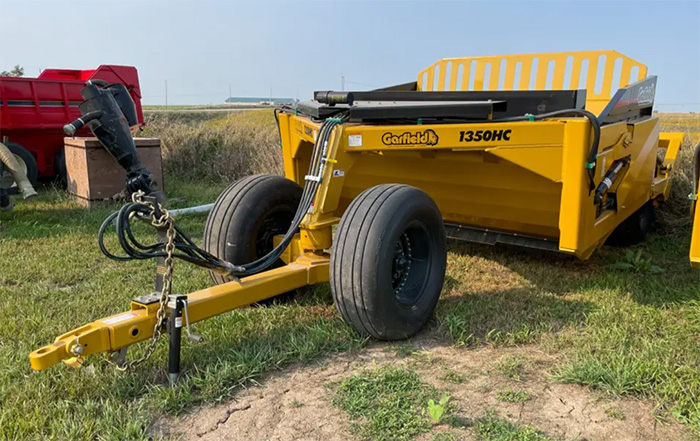

loading with a front end loader or excavator. - Gooseneck design allows good view of the
cutting edge from the cab of the tractor. - Hydraulic lockout for transport.
- 26 ply high floatation tires
