GARGCA550
Garfield 550 Ejection Scraper – 5 Yd | Req HP 80+ | Overall Width 85″
$26,279.00
Weight: 5260lbs
| FEATURES | GCA550 | GCA950HC | GCA1250HC | GCA1350HC |
|---|---|---|---|---|
| YD/Heaped Capacity | 5.5 | 9 | 12.5 | 13 |
| YD/Struck Capacity | 4 | 6.4 | 9.63 | 10 |
| IN/Cutting Width | 72″ | 84″ | 108″ | 108″ |
| LB/Approx. weight | 5,260 | 9,259 | 12,131 | 12,680 |
| IN/Overall width | 85″ | 99″ | 125″ | 125″ |
| IN/Ground clearance | 10″ | 13.75″ | 16″ | 16″ |
| HP/Power required | 80+ | 120-160 | 200+300 | 200+300 |
| Tire Size Front | 11×15 | H40x14.5-19 (10 holes) | H44.5×16.5-21/10 | H44.5×16.5-21/10 |
| Tire Size Rear | 12.5×16 | 40×14.5×19 (10 holes) | 20×20 | 20×20 |
Features

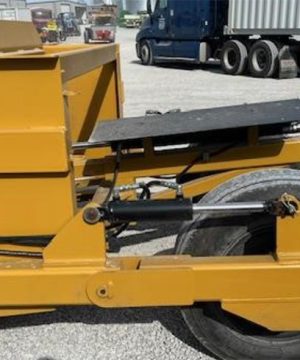

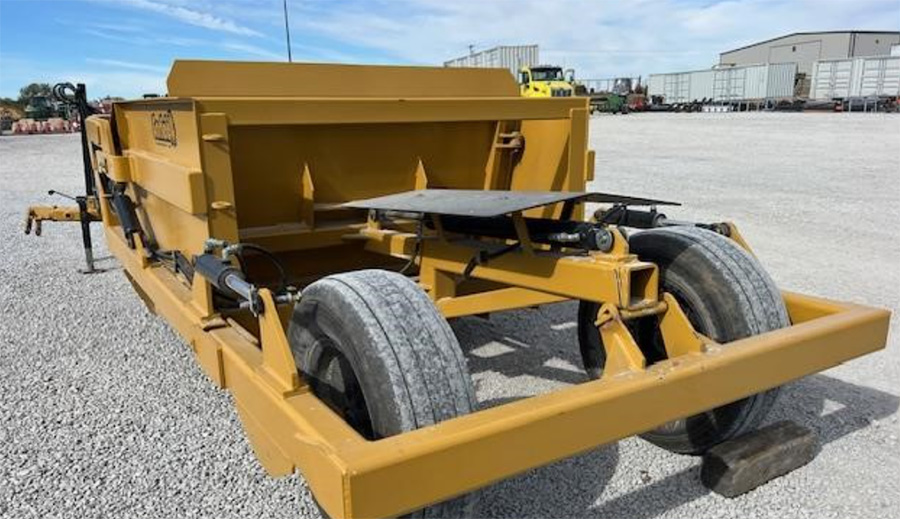

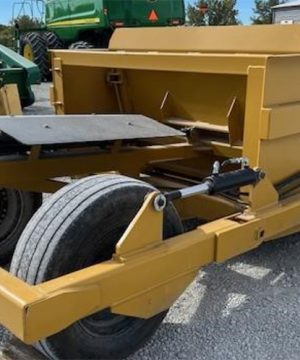

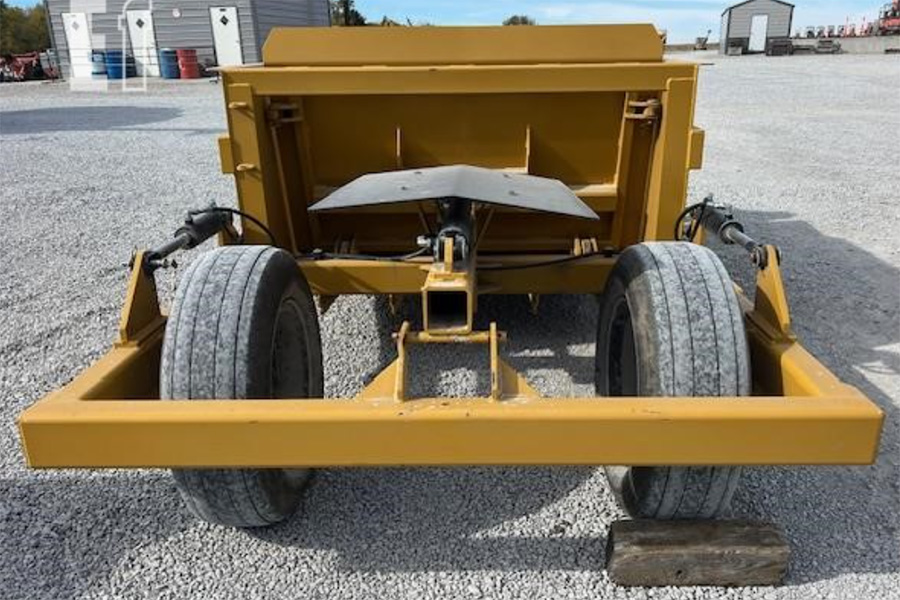

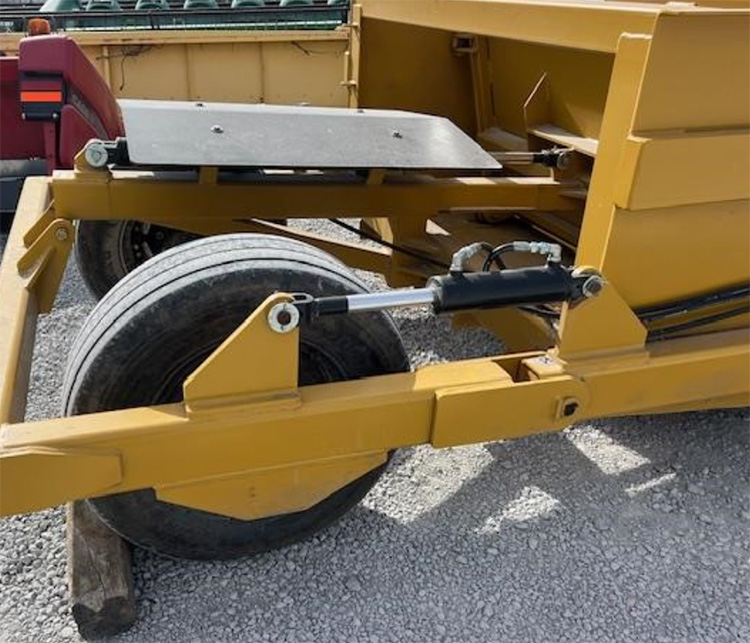

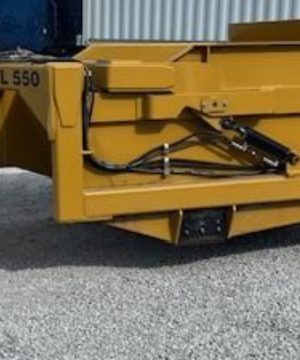

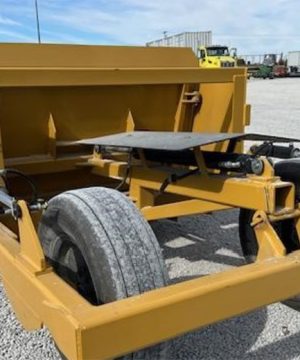

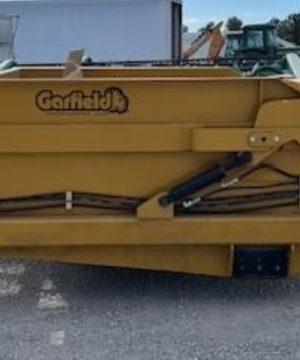

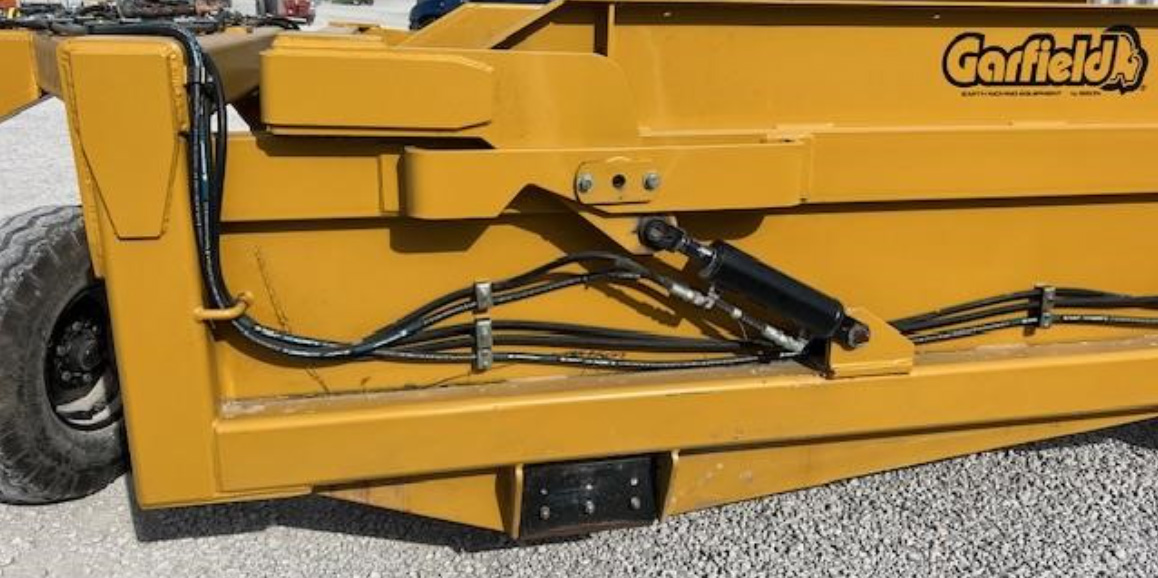

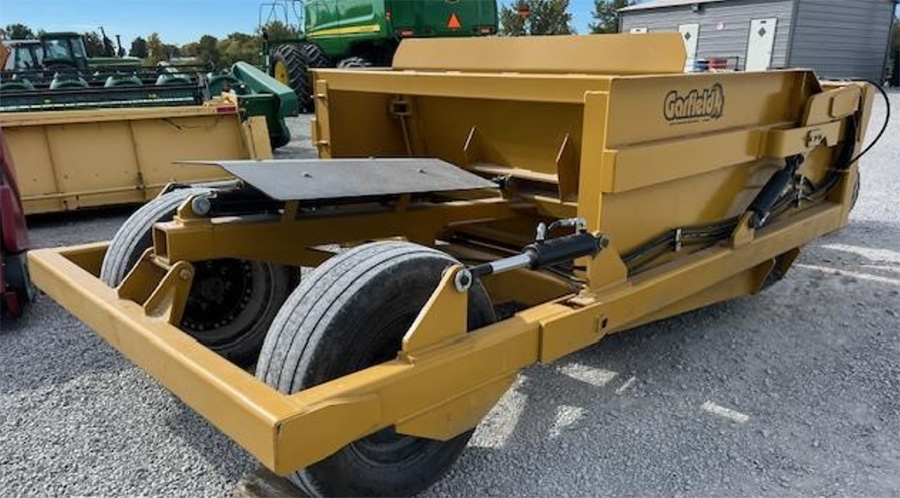

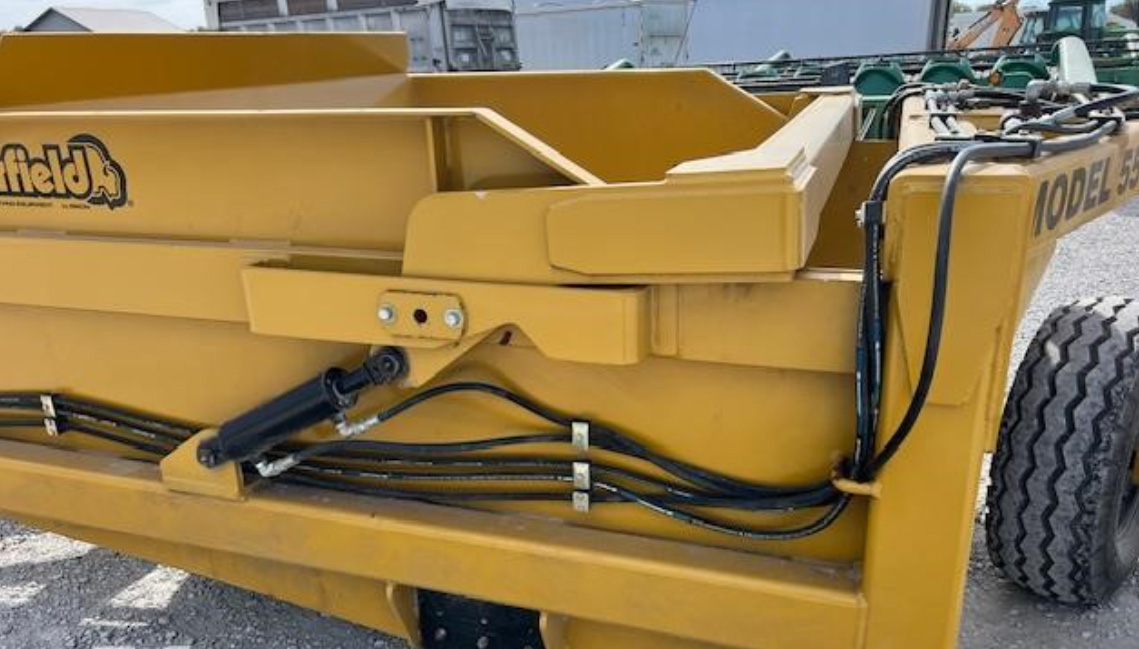

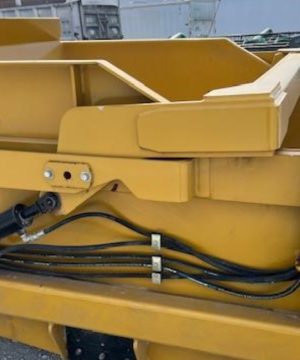

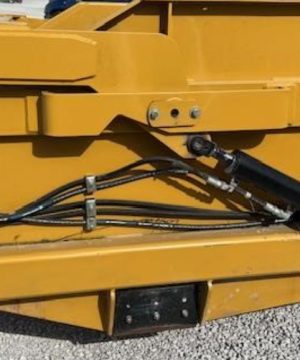

When you need to move a lot of material, the Garfield Ejection Scraper is the right machine for the job. The Garfield Ejection Scraper comes standard with hydraulically-operated rear gates using forward-forced straight ejection to achieve a smooth, even spread of material at the desired depth. The rear hinge design allows the bowl to set on the ground when loading, this makes loading require less horsepower than a traditional front hinge scraper. Optional Laser/gps mount, as well as tandem hitch, are available for all models.
The Garfield Ejection scraper is available in 4 sizes from 5 to 13 cubic yard capacity.
The Garfield Ejection Scraper Is the perfect tool for:
- Site prep
- Ditches
- Building ponds and dams
- Lowering large areas
- Filling large areas
- Terraces
- Waterways
Garfield’s Ejection Scrapers come standard with hydraulically-operated rear gates using forward-forced straight ejection which achieves smooth, even spread of material at the desired depth. Optional Laser control is available for all models.

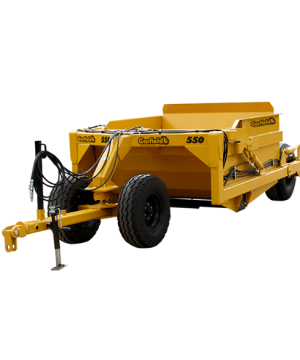

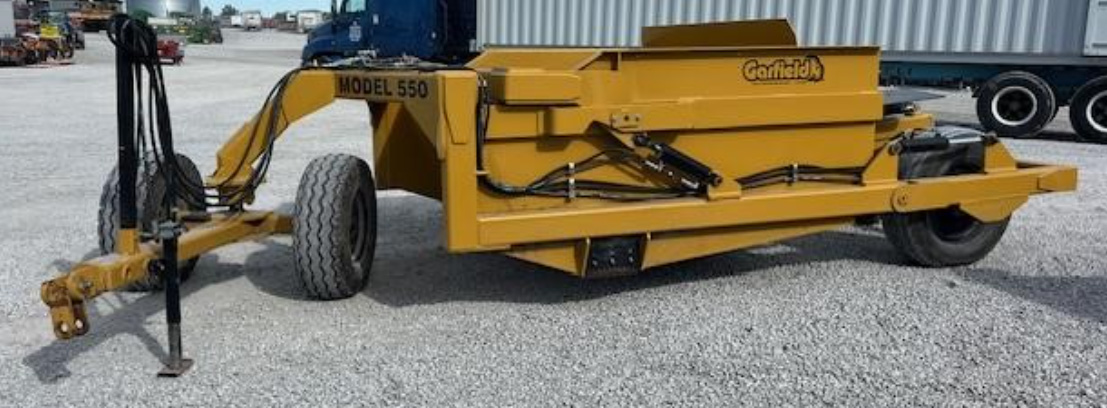

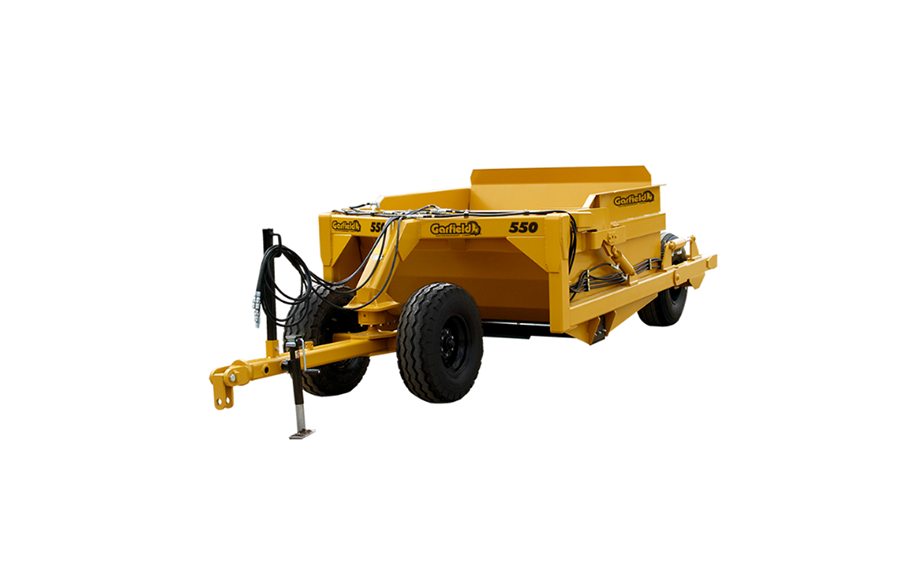

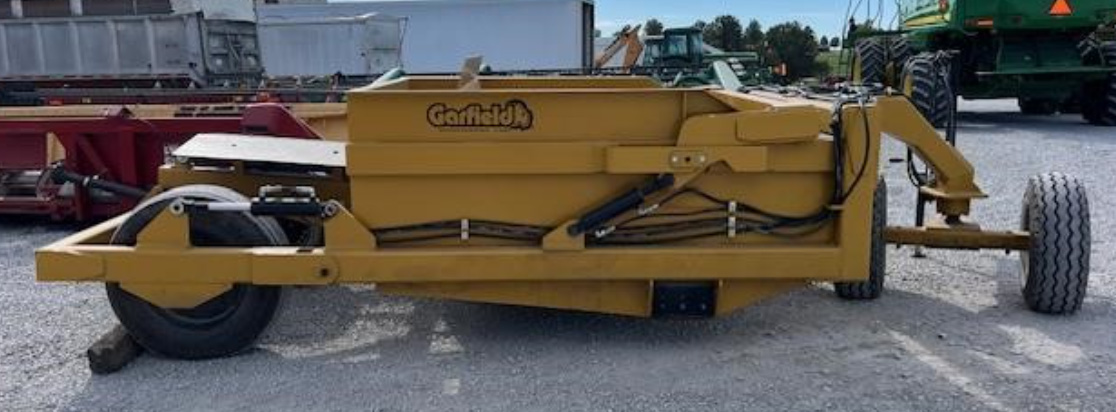

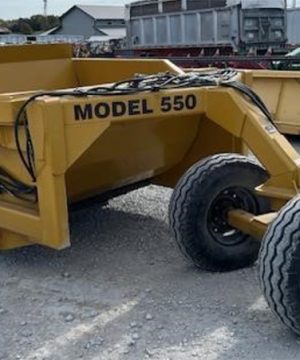

Model 550

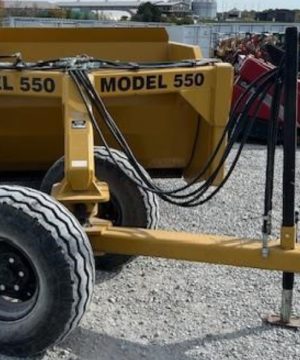

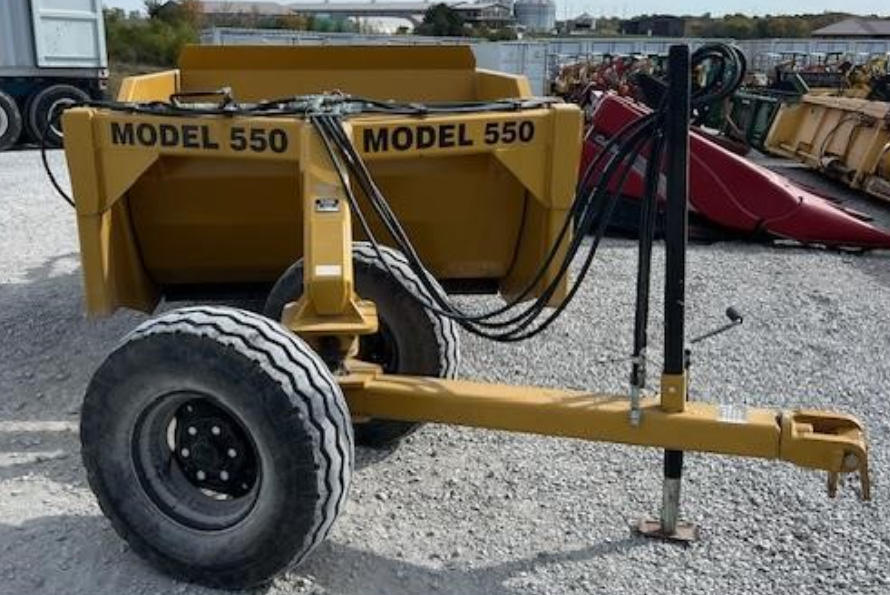

The 550 Forced Ejection Scraper comes equipped with a rugged two-wheeled dolly style hitch that supports the front end of the scraper to relieve the tractor drawbar of bearing scraper weight while also serving as a gauging device for the cutting blade.
The 550 Forced Ejection Scraper provides the operator with the ability to unload at a specific depth which increases both earth moving efficiency and precision.
Up to 10 inches of ground clearance and wide stance carrying wheels makes the 550 perfect for small to medium size projects as well as providing adequate access for routine maintenance.
| Weight | 5260 lbs |
|---|
