Greenscape 750 75″ Food Plotter No-Till Drill | CAT I/II | 1 Large Seedbox/1 Legume/1 Native Grass
PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB FACTORY

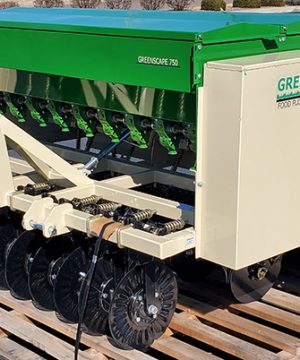

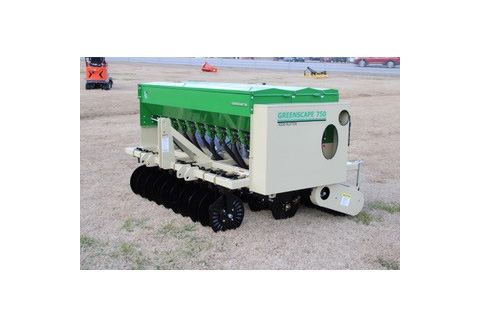

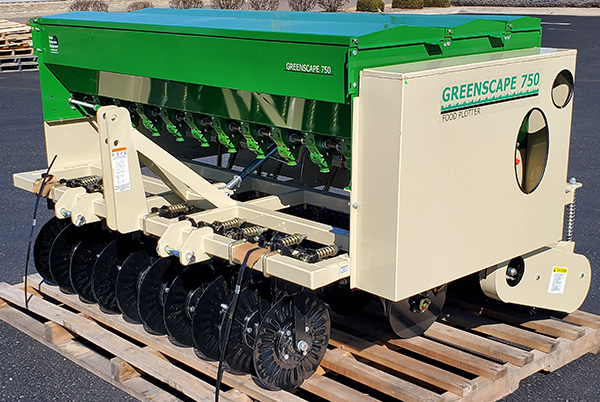

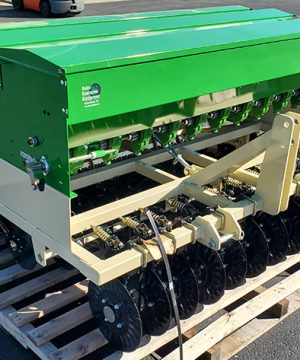

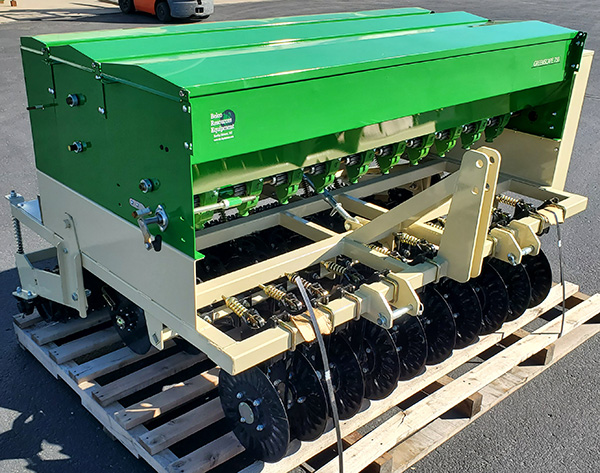

Greenscape 750 Food Plotter No-Till Drill

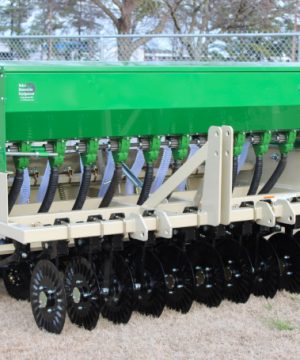

The Greenscape 750 Food Plotter No-Till Drill is the latest in the Greenscape family of the most reliable seeders produced in the US over the past 20 years. High precision seed boxes & flow control make seeding a breeze with the ability to drill many different varieties and sizes of seed into all types of planting conditions. Heavy built, but constructed to be able to be handled by tractors as low as 50 HP, The foodplotter is designed for planting deer food plots around woodlands or high precision pasture seeding in the fall. The 10 coulters at 7 1/2” High precision large seed seedcups accurately drop seeds into the openings. A separate Legume Seedbox with high precision seed cups accurately drop seed along a “splash pan” that rains the small seed over the soil. Lastly, a native grass warm season grass box gives you the opportunity to plant it all! A packer roller system with Nylon rings or optional cast iron rollers help press the seed into the ground and close up the cuts made by the disc openers.

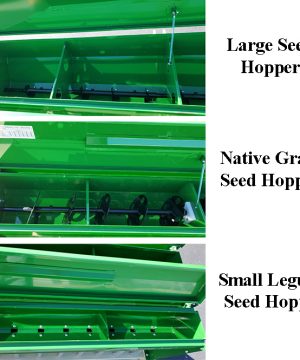

• 3 Box configuration
• Native warm season grass
• Large Grass Seed
• Precision Legume Seed
• Painted Stainless Steel
Greenscape Food Plotter 750 No-Till Drills | ||
GS750-2 | GS750-4 | |
Hitch | CAT 1/2 | CAT 1/2 |
Min HP | 50 HP | 40 HP |
Working Width | 75″ | 84″ |
Overall Width | 94″ | 98″ |
Overall Length | 75″ | 76″ |
Overall Height | 54″ | 54″ |
Weight | 1,840 lbs | 1,650 lbs |
Double Disc Openers | 10 Ea | 10 Ea |
Disc Spacing | 7.5″ | 7.5″ |
Large Seed Box Capacity | 10.27 Cu Ft | 10.27 Cu Ft |
Legume Seed Box Capacity | 2.64 Cu Ft | 2.64 Cu Ft |
Native Grass Seed Box Capacity | – | 6.10 Cu Ft (About 120 lbs Of Seed) |

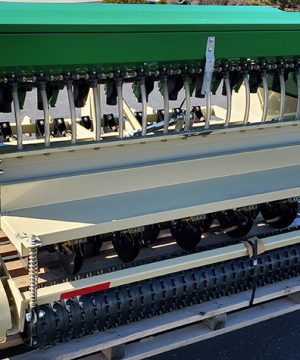

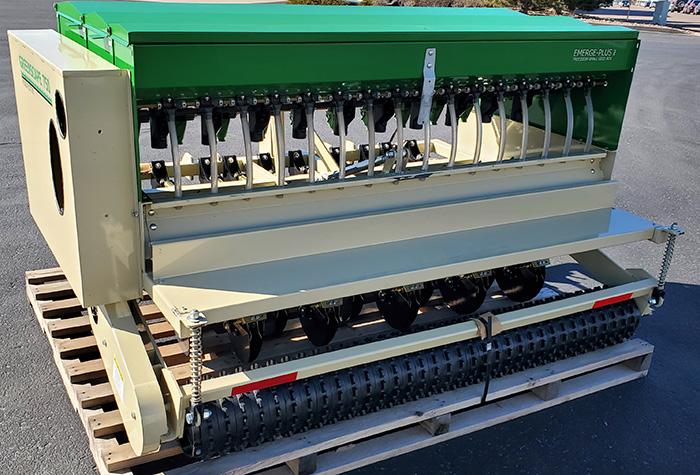

Rear Cultipacker Roller | Fiber Reinforced Nylon (Cast Iron Rings Opt.) |
Weight | 1974 lbs |
---|
