H&S PS6160 Power-Spread Manure Spreader | 409 Bu | Vert Beater | 1000 PTO
*BACK FREIGHT – $5,000
*Tractor Requirement – Once The Spreader Is Loaded, It Shouldn’t Weight More Than 1.5 Times The Weight Of The Tractor
*Unit Weight – 11,539 lbs

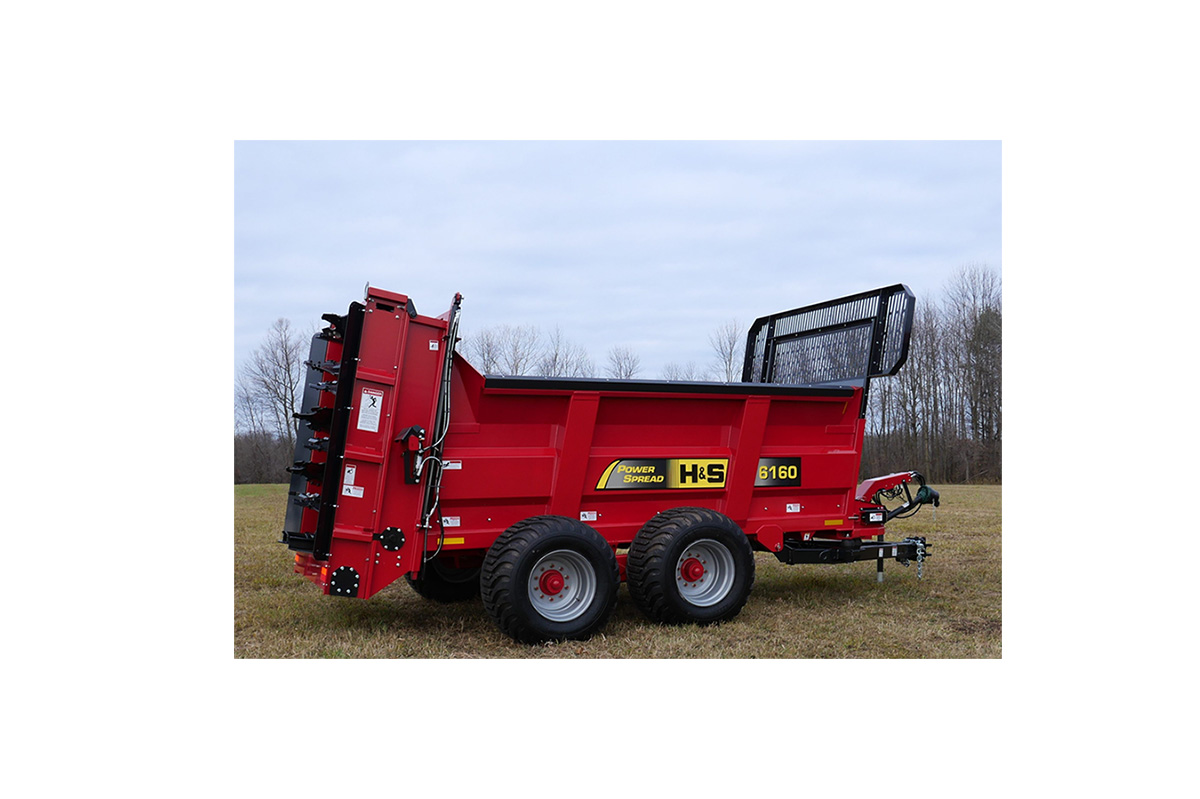

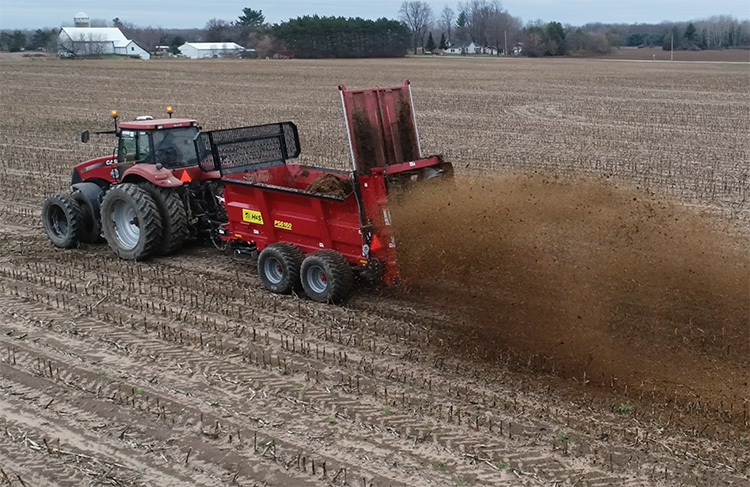

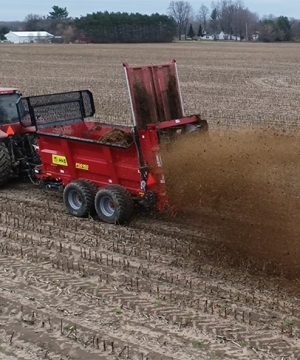

H&S PS6160 PowerSpread Manure Spreader
- 509 cu ft heaped capacity per ASAE S324.2
- A center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox
- Dual hydraulic cylinder guillotine/metering style end gate
- Vertical beaters feature reverse flighting; this patented feature allows for an even spread pattern of material
- 1/2” material is used for the flighting
- 5/8″ Grade 80 Apron Chain
- Single bolt easy adjust main apron chain
- 1.5” x 2.5” x ¼” apron slats
- Beater blades are replaceable, and the beater assembly is removable for stockpiling manure
- Constant velocity PTO
- Heavy hydraulic hose couplers
- Heavy built frame
- Poly side load bump rails
- LED highway lighting
| Model | PS6138 | PS6160 | PS6180 | PS6199 |
| Capacity Heaped Bushel Per S324.2 | 300 | 409.07 | 638 | 770 |
| Capacity Cu. Ft. Struck Level Per ASAE S324.2 | 237 | 404 | 578 | 696 |
| Capacity Cu. Ft. Heaped Per ASAE S324.2 | 373.34 | 509.07 | 793 | 959 |
| Capacity Heaped Bushel Per S324.1 | N/A | N/A | 764 | 770 |
| Side Loading Height | 67″ (170.2 cm) | 89.5″ (227.33 cm) | 94.75″ (240.7 cm) | 100″ (254 cm) |
| Vertical Beater Height | 98″ (248.9 cm) | 118.38” (300.7 cm) | 132″ (335.3 cm) | 137″ (347.98 cm) |
| Inside Width | 73″ (185.4 cm) | 73″ (185.4 cm) | 78.75″ (200 cm) | 78.75″ (200 cm) |
| Inside Length | 177″ (4.5 m) | 177″ (4.5 m) | 235.5″ (3.44 m) | 284″ (7.21 m) |
| Inside Depth | 30″ (76.2 cm) | 52.3″ (132.84 cm) | 52.5″ (133.4 cm) | 52.5″ (133.4 cm) |
| Overall Width w/Tires | 121″ (307.3 cm) | 139″ (353.06 cm) | 169″ (429.3 cm) | 149″ (378.46 cm) |
| Overall Length | 297″ (7.5 m) | 297″ (7.5 m) | 393″ (9.98 m) | 441″ (11.2 m) |
| Standard Number of Beaters | 2 | 2 | 2 | 2 |
| Vertical Beater Diameter | 34″ (86.4 cm) | 34″ (86.4 cm) | 39″ (99 cm) | 39″ (99 cm) |
| Replaceable Beater Paddles | Yes | Yes | Yes | Yes |
| Removeable Beater Assembly | Yes | Yes | Yes | Yes |
| Apron Chain Size | 5/8″ Grade 80 | 5/8″ Grade 80 | 3/4″ Grade 80 | 3/4″ Grade 80 |
| Hub | 8,000 lbs. | 12,000 lbs. | 25,000 lbs. Rating Ea. | 25,000 lbs. Rating Ea. |
| Spindle Size | 3″ (7.6 cm) | 3″ (7.6 cm) | 4.5″ (11.43 cm) | 4.5″ (11.43 cm) |
| Poly Bump Rails | Standard | Standard | Standard | Standard |
| PTO Choices | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity |
| Jack | Crank | Crank | Choice of Crank or Hydraulic | Choice of Crank or Hydraulic |
| Weight w/Tires | 9,400 lbs. | 11,539 lbs. | 21,768 lbs. | 25,296 lbs. |
PTOs (Select One)
Hitches (Select One)
Tire / Rims (Select)
H&S (4) 22.5 x 13.5 Silver Rims With 425 x 22.5 Used Truck Tires | Rated Tire / Rim Cap - 49,704
$4,090.00
(4) 600/50 x 22.5 16 Ply Tires/Silver Rims | Rated Tire / Rim Cap. - 40,880
$12,918.00
H&S Electric Adjust / Hydraulic Variable Speed Apron Control (Dealer Install)
$2,097.00
