HSMSPS6199
H&S PS6199 PowerSpread Live-Bottom Manure Spreader | Vertical Beater | 696 Cu Ft Struck
$183,186.00

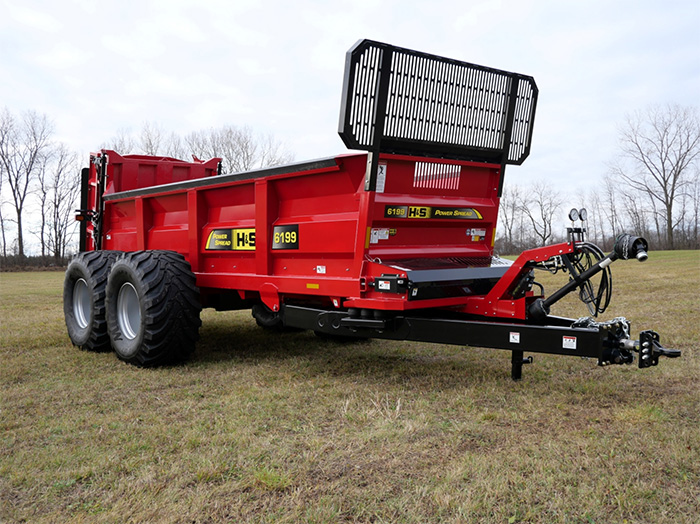

H&S PS6199 PowerSpread Manure Spreader
- 793 cu ft heaped capacity per ASAE S324.2
- A constant velocity tractor PTO and a center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox.
- Bottom drive monobloc gearbox with 3-1/8″ output shafts vs. 2-1/2″ on the competition
- Dual hydraulic cylinder guillotine/metering style endgate
- 3/4″ thick vertical beaters w/ replaceable beater blades vs. 1/2″ on some competitors.
- Vertical beaters feature reverse flighting on the top 20+″ of the beater flighting. This patented feature allows for an even spread pattern of material.
- The hydraulically driven apron features heavy-duty dual drive apron gearboxes.
- 3/4″ marine grade 80 log chain vs. competitor’s 5/8″
- Heavy 2″ x 4″ x 1/4″ tubular apron slats
- Single-bolt, easy-adjust main apron chain
- Rubber tongue suspension is standard equipment, not an option like some of the competition.
- Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
- Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft.
- Poly side load bump rails
- LED lighting
| Model | PS6138 | PS6160 | PS6180 | PS6199 |
| Capacity Heaped Bushel Per S324.2 | 300 | 409.07 | 638 | 770 |
| Capacity Cu. Ft. Struck Level Per ASAE S324.2 | 237 | 404 | 578 | 696 |
| Capacity Cu. Ft. Heaped Per ASAE S324.2 | 373.34 | 509.07 | 793 | 959 |
| Capacity Heaped Bushel Per S324.1 | N/A | N/A | 764 | 770 |
| Side Loading Height | 67″ (170.2 cm) | 89.5″ (227.33 cm) | 94.75″ (240.7 cm) | 100″ (254 cm) |
| Vertical Beater Height | 98″ (248.9 cm) | 118.38” (300.7 cm) | 132″ (335.3 cm) | 137″ (347.98 cm) |
| Inside Width | 73″ (185.4 cm) | 73″ (185.4 cm) | 78.75″ (200 cm) | 78.75″ (200 cm) |
| Inside Length | 177″ (4.5 m) | 177″ (4.5 m) | 235.5″ (3.44 m) | 284″ (7.21 m) |
| Inside Depth | 30″ (76.2 cm) | 52.3″ (132.84 cm) | 52.5″ (133.4 cm) | 52.5″ (133.4 cm) |
| Overall Width w/Tires | 121″ (307.3 cm) | 139″ (353.06 cm) | 169″ (429.3 cm) | 149″ (378.46 cm) |
| Overall Length | 297″ (7.5 m) | 297″ (7.5 m) | 393″ (9.98 m) | 441″ (11.2 m) |
| Standard Number of Beaters | 2 | 2 | 2 | 2 |
| Vertical Beater Diameter | 34″ (86.4 cm) | 34″ (86.4 cm) | 39″ (99 cm) | 39″ (99 cm) |
| Replaceable Beater Paddles | Yes | Yes | Yes | Yes |
| Removeable Beater Assembly | Yes | Yes | Yes | Yes |
| Apron Chain Size | 5/8″ Grade 80 | 5/8″ Grade 80 | 3/4″ Grade 80 | 3/4″ Grade 80 |
| Hub | 8,000 lbs. | 12,000 lbs. | 25,000 lbs. Rating Ea. | 25,000 lbs. Rating Ea. |
| Spindle Size | 3″ (7.6 cm) | 3″ (7.6 cm) | 4.5″ (11.43 cm) | 4.5″ (11.43 cm) |
| Poly Bump Rails | Standard | Standard | Standard | Standard |
| PTO Choices | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity | Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity |
| Jack | Crank | Crank | Choice of Crank or Hydraulic | Choice of Crank or Hydraulic |
| Weight w/Tires | 9,400 lbs. | 11,539 lbs. | 21,768 lbs. | 25,296 lbs. |
PTOs (Select One)
Tire / Rims (Select)
Jack (Select)
Digi-Star NT460 Monitor With GPS & Autolog (Auto Start/Stop Function) (Factory Installed With Scale)
$5,884.00
