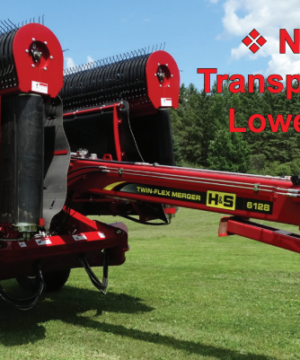

H&S 6128 28′ Twin-Flex Merger | 3 Sect Pump | Soft Shoe Suspension | In Cab Controls | 15R19.5 Tires
PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB FACTORY
Back Freight – $2,500
Must Add PTO To Complete Unit
Unit Includes
- Exclusive “SOFT-SHOE” Suspension Technology
- 28’ 2” Continuous Working Width w/Two Heads
- Self Contained Hydraulic System
- 3-Section High Volume Pump
- 35 Gallon Oil Reservoir
- 2 Sets of Remotes Needed
- Patented Center Cam/Center Drive
- Rubber Mounted Teeth
- 42” Wide Cross-Conveyor
- Manual Hydraulic Controls
- Electric In-Cab Controls for Cross-Conveyor
- Right/Left/Split/Shut-off
- Manual Adjust Skid Shoes
- 15R19.5 Radial Tires w/Rims
- Cat II, III, or III-N 3-Point Hitch
- Weight – 12,260#
Twin Flex Merger Standard Features
- Best-Value per Linear Foot of Machine Width for a (2) Head Continuous Merger 28’ of Continuous Merging with (2) 14’ Independent Heads
- Patented Center Cam/Center Drive Design Provides Smooth Clump Free Windrows – NO BUNCHING!
- WIDEST Cross-Conveyor Belt in its’ class at 42″
- The ability (with up to 16’ windrow cuts) to merge (5) Windrows into one….in either direction. No additional Cross-Conveyor Extension is needed
- Self-Contained Hydraulic System features a 35 gallon reservoir coupled with large displacement motors for the Heads and Cross Conveyor, is able to handle “HEAVY” Crops
- Rubber Mounted Teeth
- Highest Torque Rated Hydraulic Motors in the Industry, coupled with Heavy 2-Ply Cross-Conveyor Belts
- Cross-Conveyor Belts feature a High Torque Drive System….Best in the Industry!
- Both Models have the ability to merge Left, merge Right, or Split Direction
- Requires no Sensors to run the Machine. Very simple to operate
- Narrowest Transport Width & Lowest Height
- The TF6128 Features Heavy Duty Radial Tires that don’t scuff in the Field (optional on the TF5128)
Soft Shoe Suspension System
The H&S Soft-Shoe Suspension System is a self-contained, self-monitoring hydraulic suspension system provides the softest merger head footprint in the industry. As the merger is operating through the field, the Soft-Shoe™ suspension system provides a self-regulating feature that constantly adjusts the weight on the skid shoes. It delivers a footprint that reduces field damage from head scuffing and minimizes wear on the skid shoes. The Soft-Shoe™ feature allows the Twin Flex merger to handle all types of field conditions, including wet soils, rough terrain, and new seeding.
With the additional pump section on the PTO pump assembly that provides constant system pressure, the computer controlled valve regulates the head suspension system flow & constantly adjusts for weight fluctuations that come with continually changing field environments, especially in rough and rolling ground. The computer controlled logic receives information from the pressure sensor, and sends signals to control the valve at a rate of up to 125 signals per second. By diverting oil through the control manifold, the hydraulic weight transfer system maintains a constant system pressure throughout the entire 20” of header travel. Asjustments to head suspension system pressure are made from the in-cab control console.
The H&S Soft-Shoe Suspension System reduces field damage from head scuffing & minimizes wear on the skid shoes, delivering you the best-in-class merger head footprint!
Control Box Functions
The TWIN-FLEX merger control box allows you to easily change functions with just the touch of a button.
Screen 1 Functions Include
• Belts On/Off – Right
• Belts On/Off – Left
• Belts On/Off – Split
Screen 2 Functions Include
• Soft Shoe Pressure/Decrease
• Soft Shoe Pressure/Increase
Self-Contained Hydraulic System
A 35-gallon reservoir, coupled with large displacement motors for the pick-up heads and cross conveyor, is able to handle Heavy crops.
Large Diameter Pick-Up Heads
All heads are approximately 31″ in diameter with an 8″ drop to the cross conveyor. The greater distance of drop from the head to the cross conveyor allows for a better release of material and eliminates bunching of material, thus resulting in an even feed into the harvester for increased capacity.
