IDBB4LDID

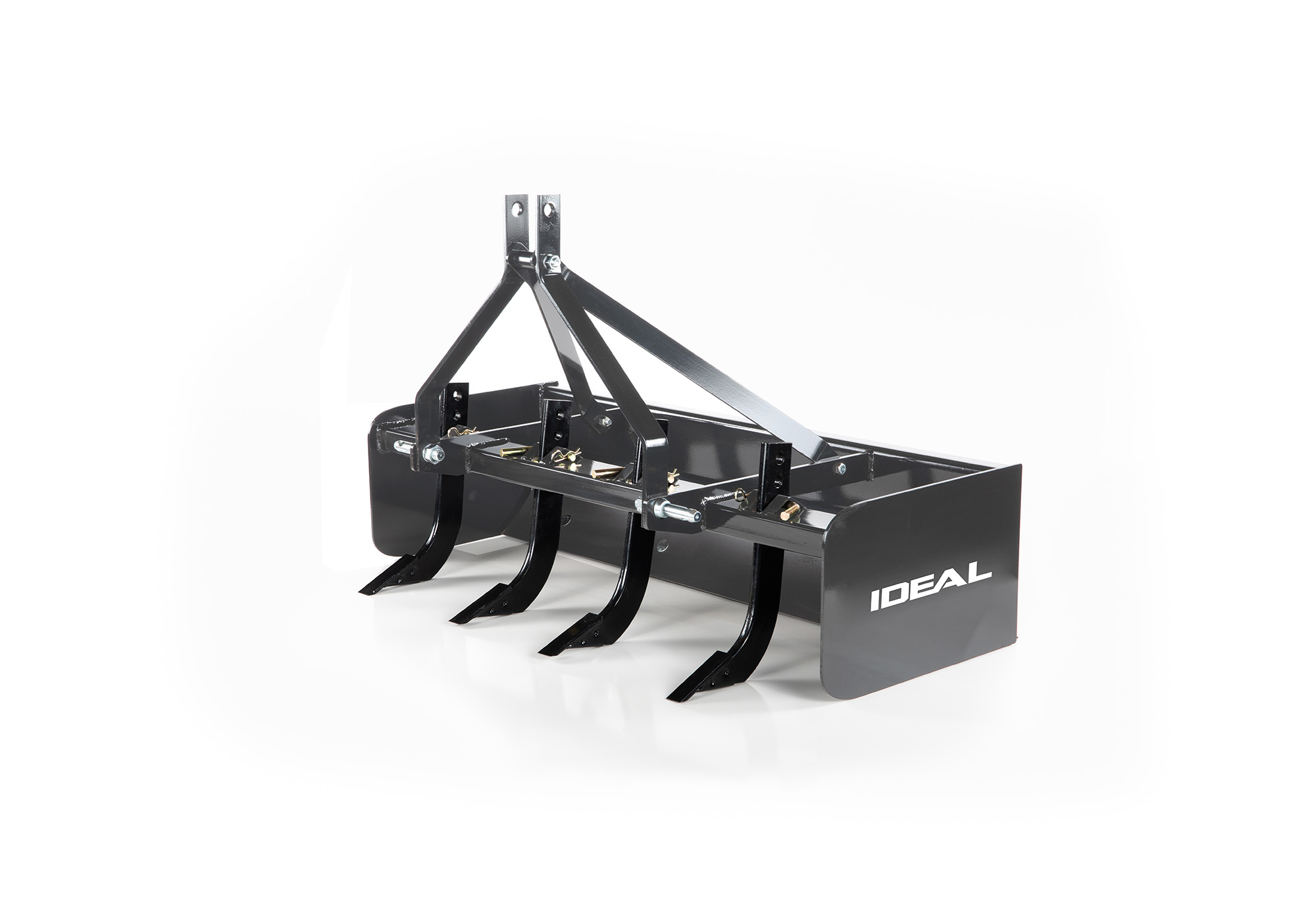

Ideal 4′ LD Box Blade | CAT 1-QH Comp. | 4 Shanks | 15-28 HP | 12.75″ Height | 18″ Depth | GREY
$975.00
Weight: 245lbs
Ideal Light Duty Box Blades

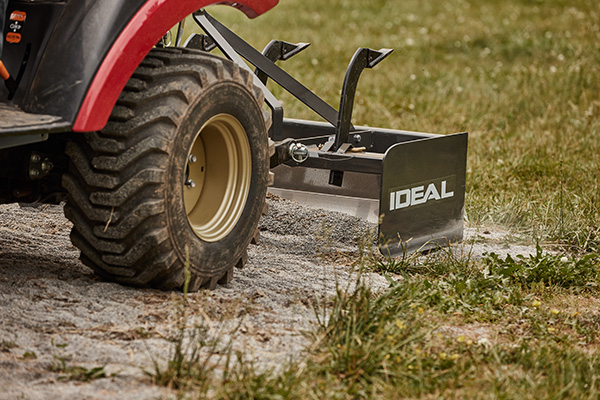

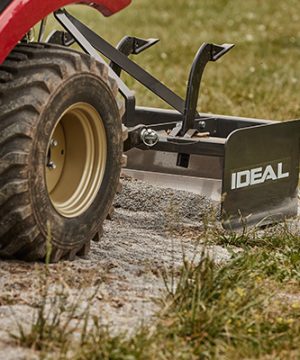

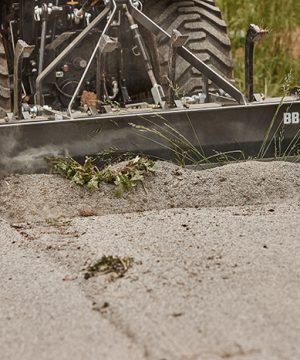

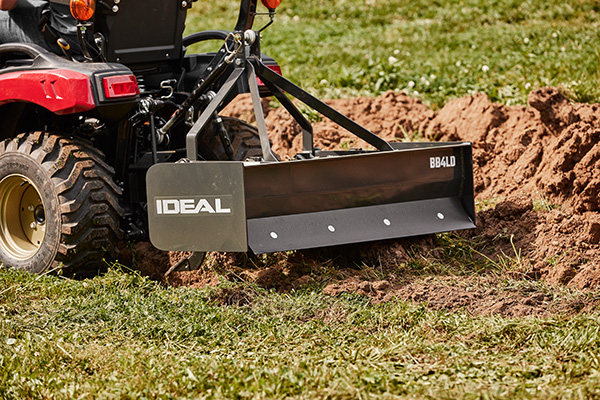

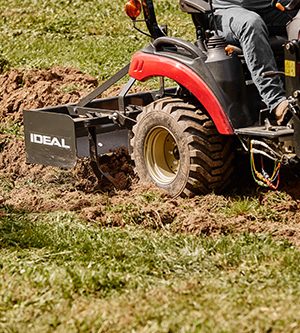

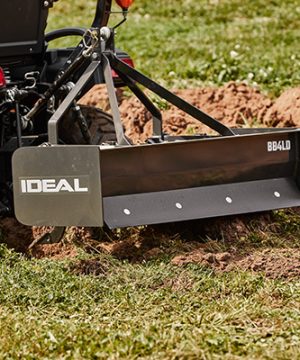

This is the Box Blade for every need – it can transform all types of dirt, chert and gravel. Ideal Farm Equipment’s Box Blade is a problem-solver. It’s great for work on driveways, potholes, washouts and ruts. Complete with four depth levels to match the level of the problem and heavy-duty ripper shanks to break up even the hardest dry ground. It works in reverse with the same great results.
| Model | BB4LDID | BB5SDID | BB6SDID | BB6MDID | BB7MDID |
|
Horsepower |
15-28 |
18-35 |
20-45 |
20 – 50 |
25-65 |
|
Hitch Type |
Limited Cat 1 (Quick Hitch Compatible) |
Cat 1 (Quick Hitch Compatible) |
Cat 1 (Quick Hitch Compatible) |
Cat 1 (Quick Hitch Compatible) |
Cat 1 (Quick Hitch Compatible) |
|
Working Width |
49.25″ |
60.75″ |
72.5″ |
73.5″ |
85.5″ |
|
Length |
23.84″ |
N/A |
N/A |
N/A |
N/A |
|
Height of Molboard |
12.75″ |
16.95″ |
16.95″ |
16.95″ |
16.95″ |
|
Side Panels |
1/4″ Thick |
5/16″ Thick |
5/16″ Thick |
3/8″ Thick |
3/8″ Thick |
|
Depth of Bucket |
18″ |
22″ |
22″ |
22″ |
22″ |
|
Height |
31″ |
34.16″ |
34.16″ |
34.16″ |
34.16″ |
|
Weight (lbs.) |
245 |
395 |
445 |
474 |
510 |
|
Number of Shanks |
4 |
5 |
6 |
6 |
6 |
|
Vertical Shank Position |
3 Position & Removable (1.5″ increments from 3-9″ below side plates) |
4 Position & Removable (1.5″ increments from 2.7″ above Side Plates to 1.8″ below) |
4 Position & Removable (1.5″ increments from 2.7″ above Side Plates to 1.8″ below) |
4 Position & Removable (1.5″ increments from 2.7″ above Side Plates to 1.8″ below) |
4 Position & Removable (1.5″ increments from 2.7″ above Side Plates to 1.8″ below) |
|
A-Frame Material |
0.375″ Steel |
0.5″ Steel |
0.5″ Steel |
Formed & Welded Steel |
Formed & Welded Steel |
|
Cutting Edges |
2-3/8″ x 6″ High Carbon Heat Treated Blades (Replaceable) |
2-3/8″ x 6″ High Carbon Heat Treated Blades (Replaceable) |
2-3/8″ x 6″ High Carbon Heat Treated Blades (Replaceable) |
2-3/8″ x 6″ High Carbon Heat Treated Blades (Replaceable) |
2-3/8″ x 6″ High Carbon Heat Treated Blades (Replaceable) |
|
Shank Beam |
2″ x 4″ Rectangle Tubing, 1-1/4″ Thick |
4″ Square Tubing, 1/4″ Thick |
4″ Square Tubing, 1/4″ Thick |
4″ Square Tubing, 1/4″ Thick |
4″ Square Tubing, 1/4″ Thick |
| Weight | 245 lbs |
|---|
