IDLR4LDID

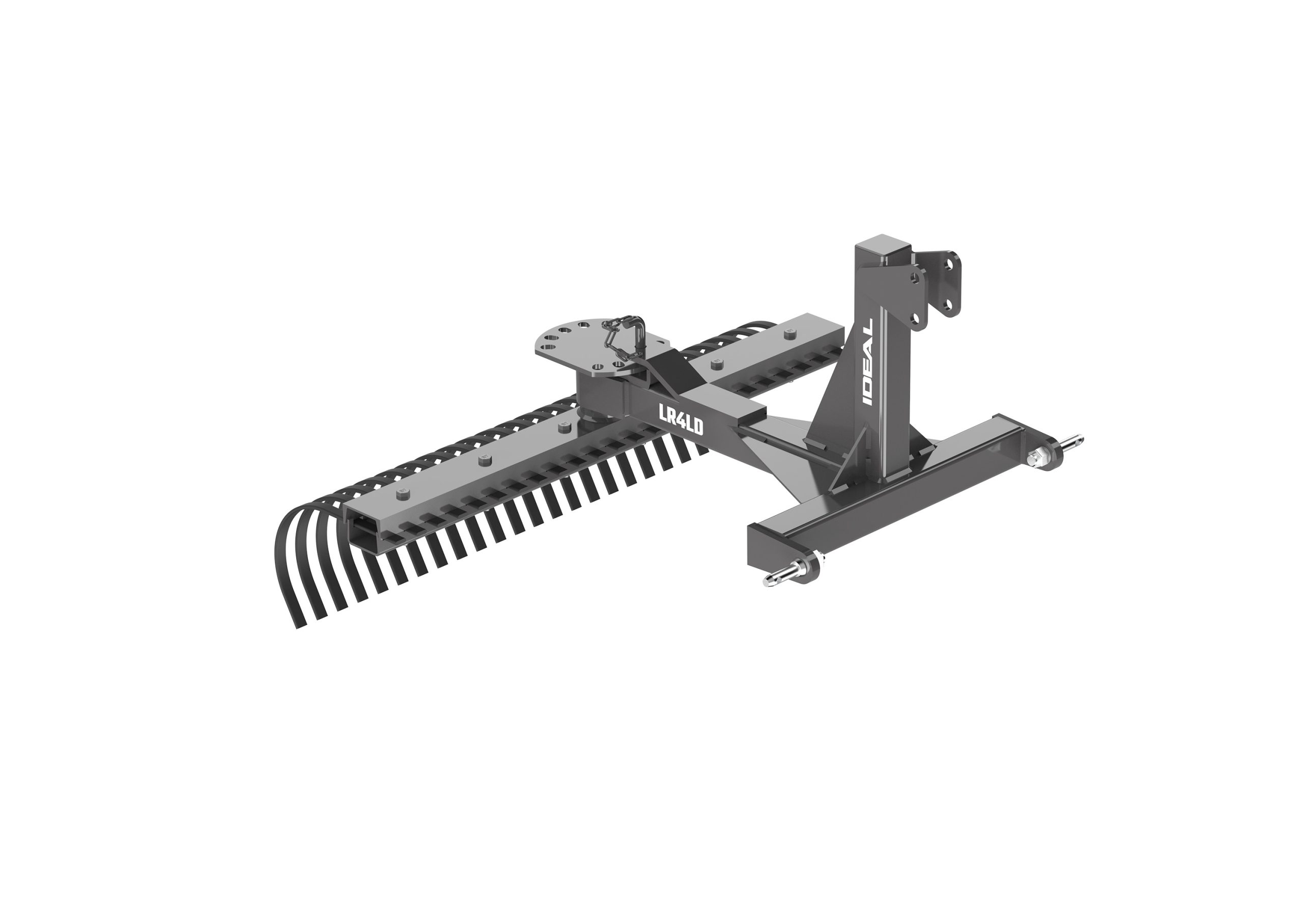

Ideal 4′ LD Landscape Rake | CAT I-QH Comp. | 15-32 HP | 24 Tines With 1″ Spacing | GREY
$775.00
Weight: 175lbs
Ideal Landscape Rakes
A versatile and easy to use rake, the Ideal Farm Equipment Landscape Rake makes raking, smoothing and contouring gravel or soil easy. The curved C-Tines are shallow enough to protect your field, but can be angled to move items such as rocks easily. Order an optional wheel kit (LRWKID) to set your depth and improve maneuverability.
| Model | LR4LDID | LR5SDID | LR6SDID | LR7SDID | LR6MDID | LR7MDID |
| Horsepower | 15 – 32 | 19 – 40 | 19 – 45 | 25 – 45 | 20 – 60 | 25 – 65 |
| Hitch | Limited Cat 1 (Quick Hitch Compatible) | Cat 1 (Quick Hitch Compatible) | Cat 1 (Quick Hitch Compatible) | Cat 1 (Quick Hitch Compatible) | Cat 1 (Quick Hitch Compatible) | Cat 1 (Quick Hitch Compatible) |
| Rake Width | 48″ | 60″ | 72″ | 84″ | 72″ | 84″ |
| Length | 44″ | N/A | N/A | N/A | N/A | N/A |
| Weight | 175 lbs. | 195 lbs. | 215 lbs. | 238 lbs. | 272 lbs. | 287 lbs. |
| Rake Height | 11″ | 14.5″ | 14.5″ | 14.5″ | 14.5″ | 14.5″ |
| # of Teeth / Spacing | 24 / 1″ Gap | 30 / 1″ Gap | 36 / 1″ Gap | 42 / 1″ Gap | 36 / 1″ Gap | 42 / 1″ Gap |
| Angle & Position | 5 FWD/REV up to 45* R/L | 5 FWD/REV up to 45* R/L | 5 FWD/REV up to 45* R/L | 5 FWD/REV up to 45* R/L | 0 /15 / 30* R/L | 0 /15 / 30* R/L |
| Weight | 175 lbs |
|---|
