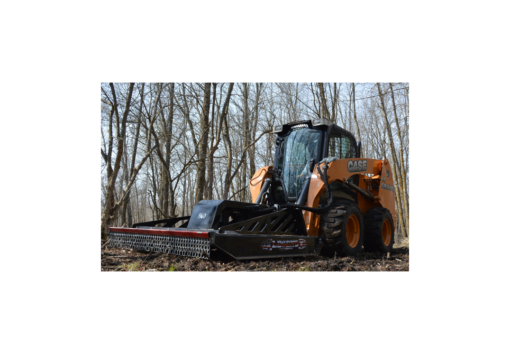

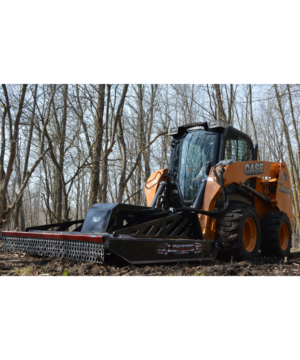

Legend 72″ Brush Cutter | Closed Front | Direct Dr – Std Flow 15-25 GPM | Cuts Up To 3″ Dia

$8,017.00

Weight: 1195lbs

Legend 72″ Brush Cutter | Closed Front | Direct Dr – Std Flow 15-25 GPM | Cuts Up To 3″ Dia

*All Units Come Complete With Skid Steer Flat Face Couplers*



Features

• Manufactured as One of the Toughest Brush Cutters Available
• Cut Grass, Brush, or Trees
• For Clearing Trails or Construction Sites
• Full Line – Available in Most Common Sizes

Specifications 72″ Model 33058
Overall Width 75.5″
Overall Length 88″
Overall Height 22″
Blades Blades: 5/8″ x 5″ and 2 1/2″ Drop – 25.25″ Hole to Tip
Bolts BB100A
Blade Carrier 3/4″ T-1
27″ Diameter
Laser Cut Plate
Nut 1.25 – 7″ Castle Nut
Flow 15-25 GPM
Blade Tip Speed Min@15 GPM
(8,482 FPM)
Max@25 GPM
(14,136 FPM)
Blade Rotation Counter Clockwise
Cutting Capacity Up to 3″
Drive Eskridge
Motor 6.1 cu. in.
Hydraulic Couplers Flat Face 1/2″ Body – ISO16028
Hydraulic Hoses 3/4″
PSI Max 3,000 PSI
Wear Bars 3/8″ Thick – Welded on
Front Chain Mount Replaceable 5/16″ Chain – 5 Links Long
Rear Chain Mount Replaceable 5/16″ Chain – 3 Links Long
Deck Thickness 1/4″
Weight 1,195 lbs.
Weight 1195 lbs
