LE33294

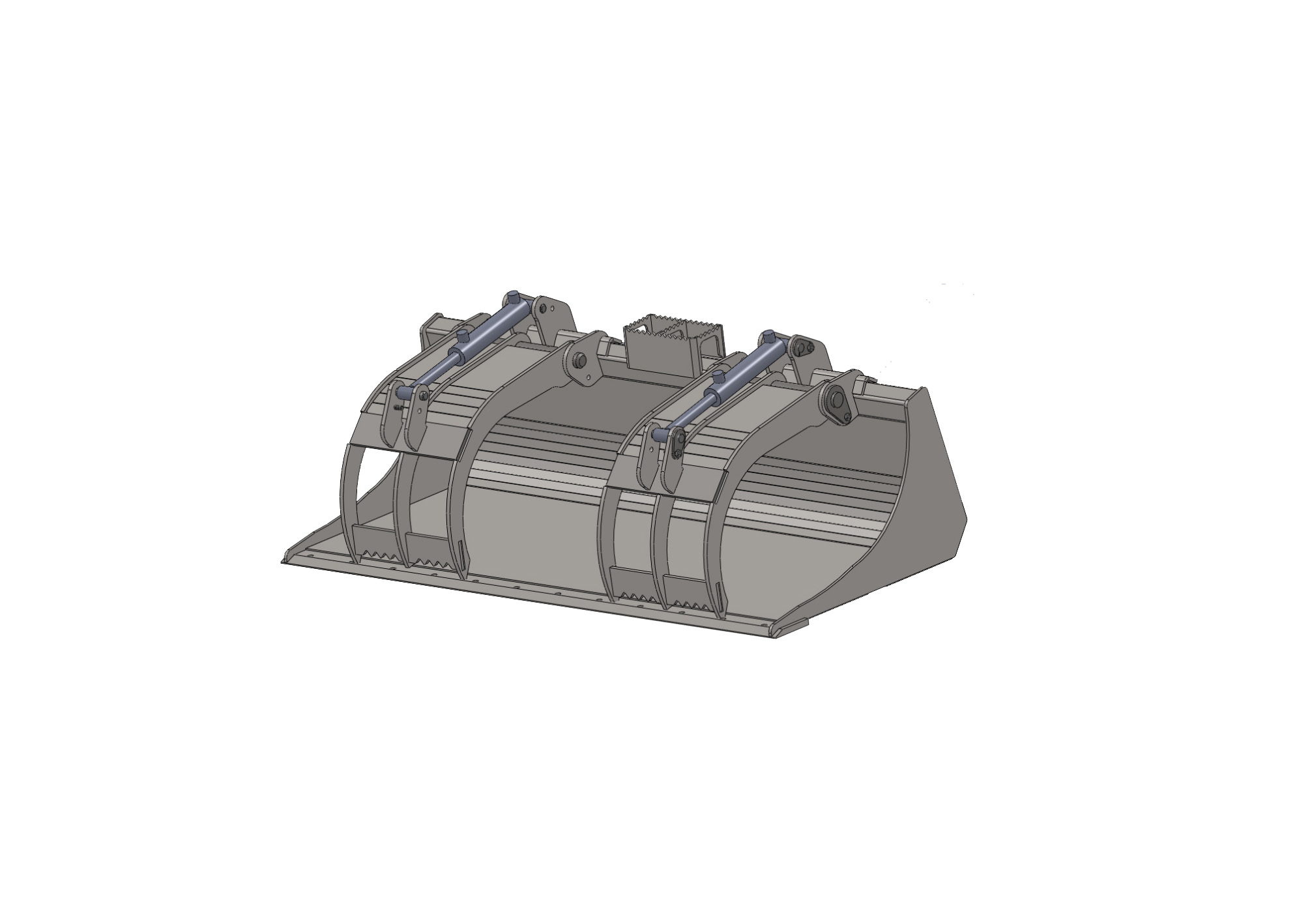

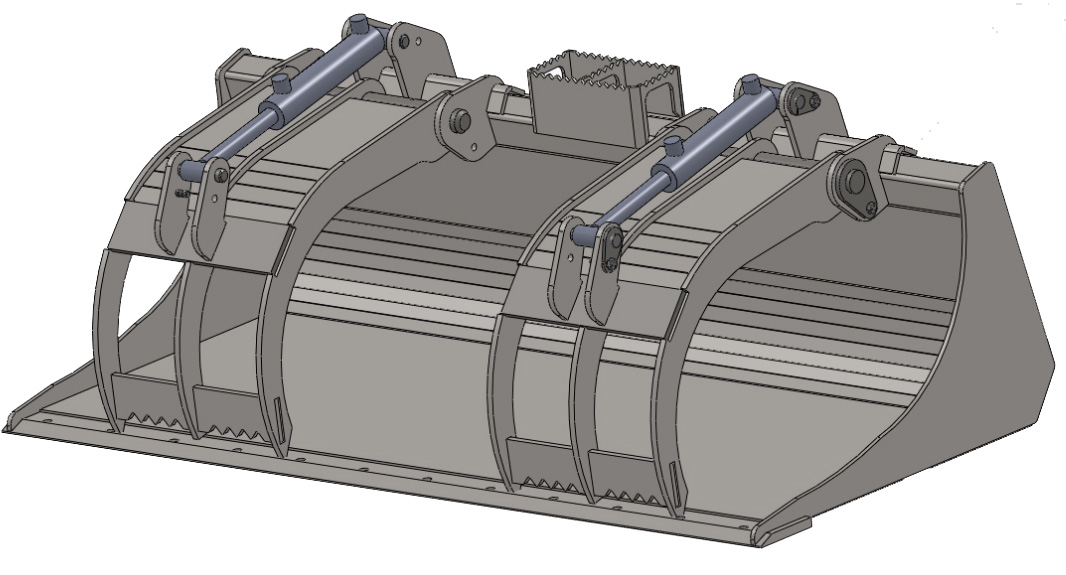

Legend 80″ HD Low Profile Scrap Grapple | Universal Skid

$4,894.00

Weight: 980lbs

Legend 80″ HD Low Profile Scrap Grapple | Universal Skid

*Hoses & Couplers Included

*PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB BV ATWOOD, KS



Legend Scrap Bucket Grapples

• Low profile for better visibility of the cutting edge
• Excellent for all your landscaping or demolition duties
• Reinforced bucket liner for longer life and less buckling

Scrap Bucket Grapples 60″
Model 33290		 68″
Model 33291		 72″
Model 33292		 78″
Model 33293		 80″
Model 33294		 84″
Model 33295
Overall Width 60″ 68″ 72″ 78″ 80″ 84″
Overall Height (Closed) 28 1/2″ 28 1/2″ 28 1/2″ 28 1/2″ 28 1/2″ 28 1/2″
Overall Height (Open) 41 1/2″ 41 1/2″ 41 1/2″ 41 1/2″ 41 1/2″ 41 1/2″
Overall Depth 38.125″ 38.125″ 38.125″ 38.125″ 38.125″ 38.125″
Grapple Opening 35 3/4″ 35 3/4″ 35 3/4″ 35 3/4″ 35 3/4″ 35 3/4″
Depth of Bucket 34″ 34: 34″ 34″ 34″ 34″
Main Body Thickness 3/16″ 3/16″ 3/16″ 3/16″ 3/16″ 3/16″
Side Plate 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50
Wear Bars 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide
Mounting Plate 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel
Cutting Edge 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″
Grapple Arms 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut
Cylinders 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded
Hydraulic Hoses 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″
PSI Max 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI
Pivot Points Grease Zerks Grease Zerks Grease Zerks Grease Zerks Grease Zerks Grease Zerks
Struck Capacity 13.2 cu. ft. 15 cu. ft. 15.9 cu. ft. 17.5 cu. ft. 17.75 cu. ft. 185 cu. ft.
Heaped Capacity 15.8 cu. ft. 18 cu. ft. 19 cu. ft. 20.5 cu. ft. 20.12 cu. ft. 22.25 cu. ft.
Weight 842 lbs. 882 lbs. 897 lbs. 937 lbs. 980 lbs. 996 lbs.



HD Low Profile Bucket Grapples 60″
Model 33270(T)		 68″
Model 33271(T)		 72″
Model 33267(T)		 78″
Model 33272(T)		 80″
Model 33273(T)		 84″
Model 33274(T)
Overall Width 60″ 68″ 72″ 78″ 80″ 84″
Overall Height (Closed) 28 1/2″ 28 1/2″ 28 1/2″ 28 1/2″ 28 1/2″ 28 1/2″
Overall Height (Open) 41 1/2″ 41 1/2″ 41 1/2″ 41 1/2″ 41 1/2″ 41 1/2″
Overall Depth 38 1/4″ 38 1/4″ 38 1/4″ 38 1/4″ 38 1/4″ 38 1/4″
Grapple Opening 35 1/2″ 35 1/2″ 35 1/2″ 35 1/2″ 35 1/2″ 35 1/2″
Depth of Bucket 34″ 34: 34″ 34″ 34″ 34″
Main Body Thickness 3/16″ 3/16″ 3/16″ 3/16″ 3/16″ 3/16″
Side Cutting Edge 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50
Wear Bars 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide		 1/2″ Grade 50
10″ Wide
Mounting Plate 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel 5/16″ HR Steel
Cutting Edge 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″ 3/4″ x 6″
Grapple Arms 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut		 1/2″ Grade 50
Laser Cut
Cylinders 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded 2″ x 8″ Welded
Hydraulic Couplers Flat Face Flat Face Flat Face Flat Face Flat Face Flat Face
Hydraulic Hoses 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″
PSI Max 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI
Pivot Points Grease Zerks Grease Zerks Grease Zerks Grease Zerks Grease Zerks Grease Zerks
Struck Capacity 13.2 cu. ft. 15 cu. ft. 15.9 cu. ft. 17.5 cu. ft. 17.75 cu. ft. 18.5 cu. ft.
Heaped Capacity 15.8 cu. ft. 18 cu. ft. 19 cu. ft. 20.5 cu. ft. 20.12 cu. ft. 22.25 cu. ft.
Weight 827 lbs. 867 lbs. 872 lbs. 917 lbs. 952 lbs. 972 lbs.

Weight 980 lbs
