MAGIRAFFA-L-190-SE
Maschio Giraffa L 190 SE Flail/Boom Mower | CAT II | 40-80 HP | 7.3′ Reach | 73″ Working Width
$10,404.00
Weight: 1484lbs
Unit Includes
- Universal three point hitch, cat. II^
- Gearbox PTO 540 rpm with free-wheel
- Front safety flaps
- Hydraulic system for side or inclined offset
- Transmission belts external adjustment
- Electronic balanced rotor
- Hammers kit ‘’08’’
- Pair of skids

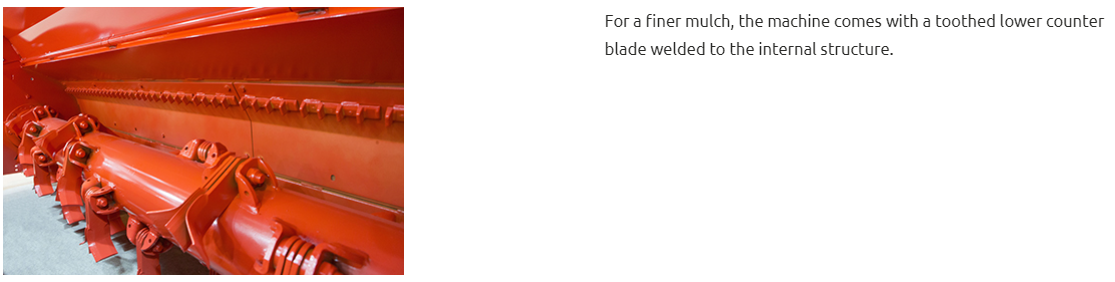

- Lower counter-blade
- Adjustable roller unit with removable caps
- Self cleaning adjustable rear levelling roller
- Bracket for drive cover protection
- Shockproof protection system
- 90° breather pipe
- Standard PTO shaft
- Safety guards
| Measure | 155 SE | 170 SE | 170 SI | 190 SE | 190 SI |
| Gearbox |
External
|
External
|
Internal
|
External
|
Internal
|
| Min power HP |
40 HP
|
40 HP
|
40 HP
|
40 HP
|
40 HP
|
| Max power HP |
80 HP
|
80 HP
|
80 HP
|
80 HP
|
80 HP
|
| Working width |
1.49 m
|
1.64 m
|
1.64 m
|
1.84 m
|
1.84 m
|
| Transport width |
2.06 m
|
2.21 m
|
1.95 m
|
2.41 m
|
2.15 m
|
| Max cutting diameter |
4 cm
|
4 cm
|
4 cm
|
4 cm
|
4 cm
|
| PTO rotation rpm |
540
|
540
|
540
|
540
|
540
|
| Weight |
≥ 600 kg
|
≥ 644 kg
|
≥ 636 kg
|
≥ 673 kg
|
≥ 665 kg
|
Giraffa L
The latest addition to the side-mounted mulcher family, GIRAFFA L’s distinguishing feature is its operating power range, up to 80 hp. Simple to use, it is a versatile tool for dealing with grass or brush. Suitable for any use, equally happy working in olive groves, hazel groves and orchards as it is mowing along headlands, ditches or hedgerows, it is available in working widths ranging from 1.6 to 1.8 m, paired with tractors with horsepower in the 40 to 80 range.
Nowhere It Can’t Reach

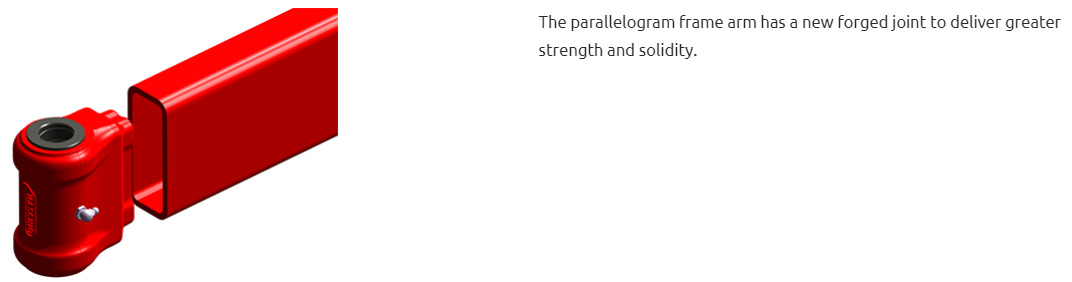

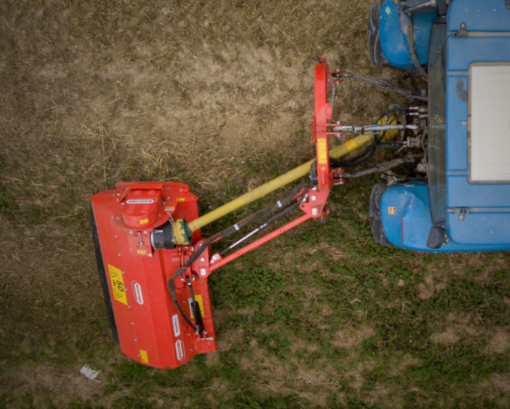

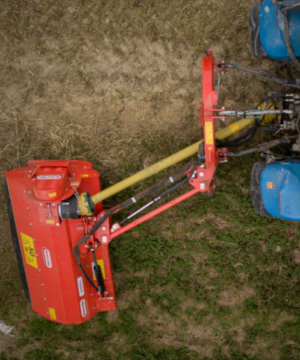

​​​​​GIRAFFA L’s parallelogram frame arm gives it a wide range of movement, both horizontally – to offer the greatest number of possible operating combinations, such as work in conjunction with front-mounted equipment – and vertically thanks to inclines ranging from -65° e +90°. The version with the externally mounted gearbox gives it greater offset.
The gearbox shaft features a freewheel, while the PTO, which comes as standard, is direct drive.
Effortless Mulching

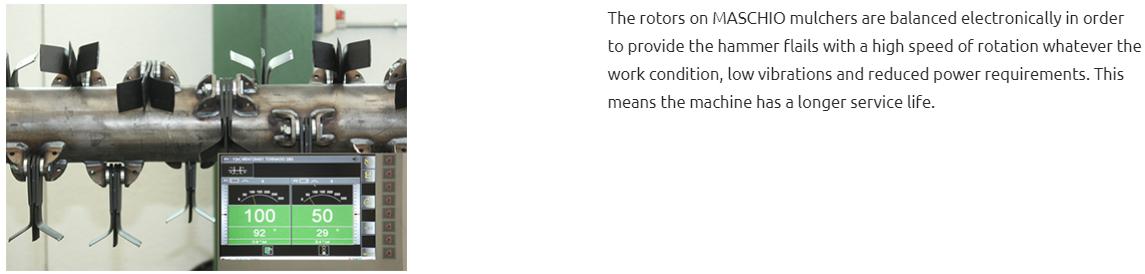

Hammer flails are tasked with shredding, effortlessly handling brush up to 6 cm in diameter. The electronically balanced rotor ensures consistently high speeds with very little vibration.
GIRAFFA L can be fitted with a double skin protection, which is recommended when dealing with hard debris or stones.
Self-Cleaning Roller
The adjustable rear roller is designed to compact the resulting shredded residue as much as possible in order to speed up the decomposition process, and is self-cleaning thanks to its location near the rotor.

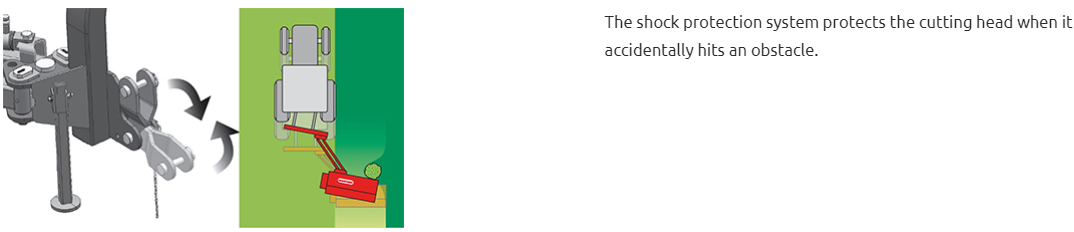

Shock Protection System
The head’s floating system allows it to follow the contours of the surfaces being worked on, preventing any damage to the structure. The connecting rod on one of the lower hitch points is an additional safety measure in the event of collision with obstacles.
GIRAFFA L comes in two versions: with the gearbox mounted internally or externally. The internal version is recommended if the unit is going to be used mainly on the flat or for vertical work (hedgerows, banks). The external version gives greater reach for ditch work.
| Weight | 1484 lbs |
|---|
