MAM98R40061

Maschio Orso Rapido Plus 4000 Power Harrow | CAT III | 140-300 HP | 32 Blades | 158″ Working Width

$28,965.00

Weight: 4025lbs

Maschio Orso Rapido Plus 4000 Power Harrow | CAT III | 140-300 HP | 32 Blades | 158″ Working Width

Must Add Roller To Complete

Packing Charge  $198

PRICES DO NOT INCLUDE SHIPPING OR SETUP – PRICED F.O.B. FACTORY

Unit Includes

  • PTO shaft with cam clutch (1″ 3/8 Z6 tractor side yoke)
  • Reinforced PTO shaft with cam clutch for Mod. 4000 (1″ 3/8 Z6 tractor side yoke)
  • 2 blades per rotor
  • Round blade-holders
  • Quick blade release, 16mm thickness
  • Bolt-on steel deflectors (PLUS)
  • Heavy duty gear-tray with double reinforcement
  • Heavy duty spherical roller bearings
  • Speed lift connections (combi)
  • Rear roller pin adjustment
  • Rear levelling bar with mechanical central adjuster installed on the roller
  • Long dampened side protections
  • CE safety protections
Measure 3000 3500 4000 4500
Min power HP
120 HP
130 HP
140 HP
150 HP
Max power HP
300 HP
300 HP
300 HP
300 HP
Working width
3 m
3.5 m
4 m
4.5 m
Transport width
3.12 m
3.61 m
4.11 m
4.59 m
Number of tines
24
28
32
36
Working depth
28 cm
28 cm
28 cm
28 cm
Weight *
≥ 1,100 kg
≥ 1,300 kg
≥ 1,460 kg
≥ 1,538 kg



*Weight Without Roll

Orso Rapido Plus

ORSO RAPIDO PLUS COMBI is the most efficient model of MASCHIO fixed power harrows, a concentrate of performance and reliability up to 4,5 m wide in combination with tractors up to 300 HP. Suitable for continuous and heavy use thanks to its HEAVY DUTY type conformation, it can be combined with GASPARDO planters for cereals even on hard and poorly tilled soils.

HD Structure

ORSO RAPIDO PLUS COMBI is characterised by a very solid, double skin frame structure, a feature of MASCHIO power harrows. The internal thickness of 6 mm and the external thickness of 5 mm allow greater rigidity and robustness without significantly increasing the weight. Made with high-strength steels, it ensures high performance in all conditions. The use of reinforced spherical roller bearings and the fully revised gearbox, equipped with 6 overall bearings, ensure high resistance over time and greater stability. The picture is completed by HEAVY DUTY equipment such as the lateral cam PTO shafts, more robust tine-holder shafts, and thicker tines that hook onto tine-holders that are single-block castings.

Quality @ The Highest Levels

The transmission and working parts are made with top quality materials and automated and high-precision production processes.  The rotor shafts with tine support are turned by a single high-strength steel forged piece.  The long 32 cm tines are forged with tempered boron steel and machined in highly automated lines. Their profile is specially designed to maximise soil refinement in all conditions. Tungsten carbide coating to extend its life is an optional.

Rapido Plus As Standard

The many standard features are enhanced by accessories worthy of a superior class equipment. The patented QUICK release system allows to quickly and simply replace the tines with the sole help of the supplied cam. While PLUS stone deflectors system, thanks to the presence of protective wedges, protects the space between the rotors from impacts or intrusions with stones or other debris that could block them.

Combined Seeder Or Front Mounting

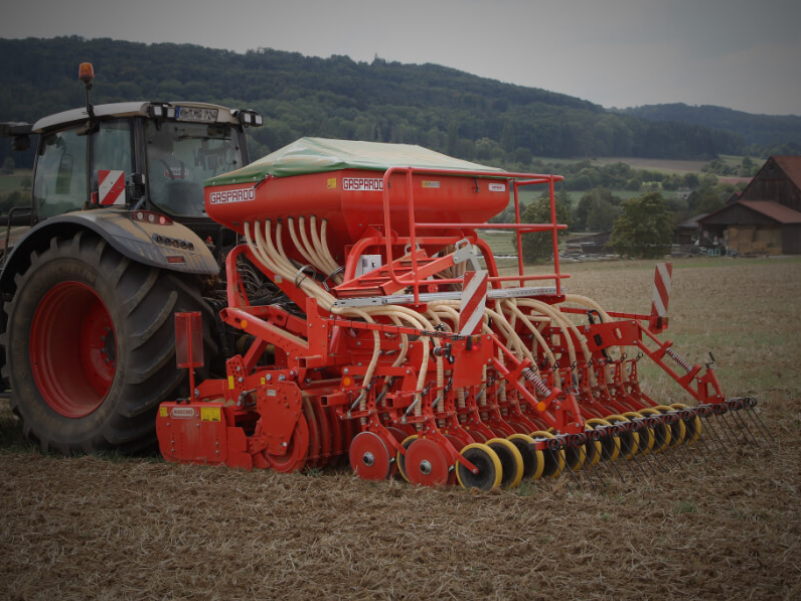

ORSO RAPIDO PLUS COMBI allows coupling with GASPARDO precision flow rate seed drills thanks to the hydraulic coupling, or in combination with DAMA, DAMA PLUS, ALIANTE and ALITALIA cereal planters. To increase versatility of use, the front hitch kit is available upon request which allows to mount other equipment at the rear.

ORSO RAPIDO PLUS COMBI is at the top not only in terms of performance but also set-up: QUICK tine release, PLUS stone deflectors, increased gearbox, larger transmission shafts, more robust teeth and spherical roller bearings that combine robustness and reliability with easy maintenance. All this made it possible to increase load powers by 20%.

Maschio Power Harrow Literature

Must Add Roller To Complete Unit

MAM90B40471

MAM90B40664





______________________________________________________________________________________________________________________________________________________________________________________________________

PRICES DO NOT INCLUDE SHIPPING OR SETUP – PRICED F.O.B. FACTORY

Weight 4025 lbs
