Name: MKSB78PT-P
SKU: 78391
Availability: InStock

PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB BV ATWOOD, KS

*Must Add Chute Rotator To Complete – See Tab Below

MK Martin Performance Series Pull-Type 3PT Mounted Snow Blowers

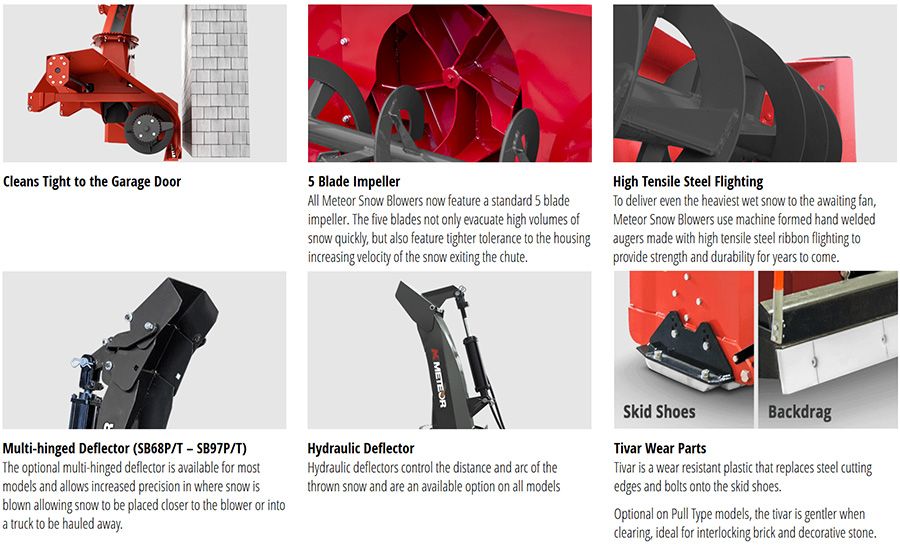

MK Martin has completely redesigned the Pull Type Tractor Snowblower. Most notably with the redesign, the new Pull Type blower now cleans tight to the garage door, with no need for an additional back drag system. Connecting to your tractor’s 3PH, the inverted snowblower allows you to drive straight forward pulling the blower instead of backing into the snow. Easier on your neck, the pull type blower is ideal for quickly clearing driveways and laneways.

Model	SB54PT-P	SB60PT-P	SB68PT-P	SB72PT-P	SB78PT-P	SB87PT-P	SB97PT-P
HP (Rec.)	25 HP	25 HP	35 HP	35 HP	50 HP	60 HP	60 HP
Cutting Width	54″	60″	68″	72″	78″	87″	97″
Cutting Edge	Bolt On (¹⁄₂ x 4)
Auger Diam.	14″	14″	14″	14″	15″	19″	19″
Fan Diam.	18″	18″	21″	21″	23″	27″	27″
Chute Diam.	8″	8″	10″	10″	10″	12″	12″
Chute Rotation Edge	Must select either Manual (opt.) or Hydraulic (opt.) or Electric (opt.)
Chute Deflector	Manual Std./Opt. 6″ cyl.				Manual Std./Opt. 8″ cyl.
Double Hood Deflector	N/A	N/A	Std.	Std.	Std.	Std.	Std.
Main Body Height	23″	23″	23″	23″	26″	28″	28″
3PH Mount	Cat. 1	Cat. 1	Cat. 1	Cat. 1	Cat. 1 & 2	Cat. 2	Cat. 2
Weight (LBS.)	462	495	671	685	900	1,175	1,260
Tube Size	2 ³⁄₈” OD	2 ³⁄₈” OD	2 ³⁄₈” OD	2 ³⁄₈” OD	3 ¹⁄₂” OD	3 ¹⁄₂” OD	3 ¹⁄₂” OD
Fighting Size	¹⁄₄ X 2 ¹⁄₄	¹⁄₄ X 2 ¹⁄₄	¹⁄₄ X 2 ¹⁄₄	¹⁄₄ X 2 ¹⁄₄	¹⁄₄ X 2 ¹⁄₄	⁵⁄₁₆ X 2 ¹⁄₄	⁵⁄₁₆ X 2 ¹⁄₄
Roller Chain Drive	# 50	# 50	# 60 Heavy	# 60 Heavy	# 60 Heavy	# 60 Heavy	# 60 Heavy
Fan Depth	5″	5″	7″	7″	8″	10″	10″
Blades Per Fan	5	5	5	5	5	5	5
Auger Drive Shaft Size	1″	1″	1¹⁄₄“	1¹⁄₄“	1¹⁄₄“	1¹⁄₄“	1¹⁄₄“
Auger Drive Shaft Size	1³⁄₈“	1³⁄₈“	1³⁄₈“	1³⁄₈“	40mm	40mm	40mm
