TMWPD1600

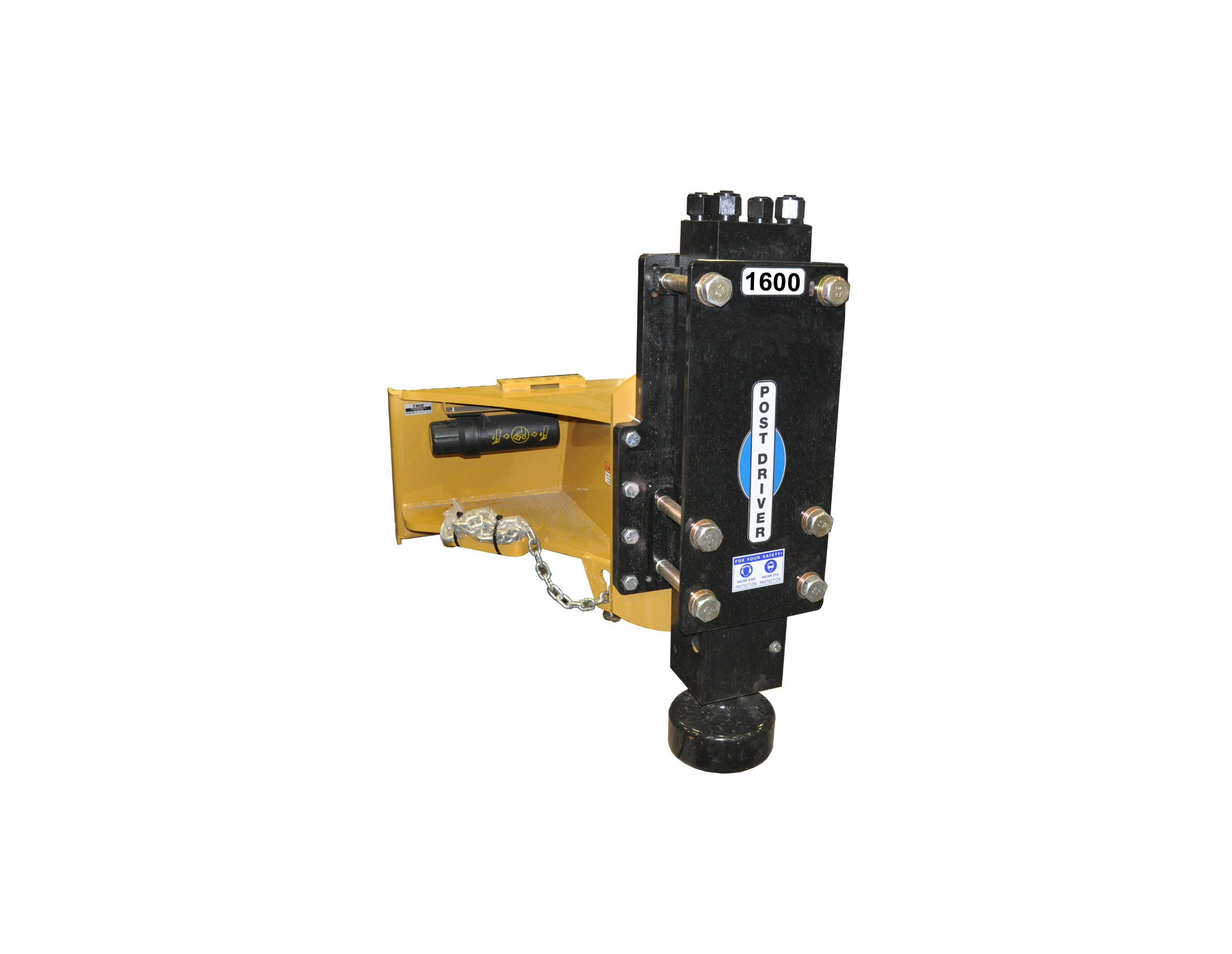

TMW 1600 Post Driver | Univ Skid | 11-18GPM | 2000PSI | 7-1/8″ OD Max Posts | Stationary Std-Opt Rot
$8,416.00
Weight: 1150lbs
TMW 1600 Post Driver Includes/Features
- Universal Skid Mounted
- (1) 7-1/8″ I.D. Domed Or Flat Driving Tool (Specify Which When Ordering)
- (1) Spike Point Tool

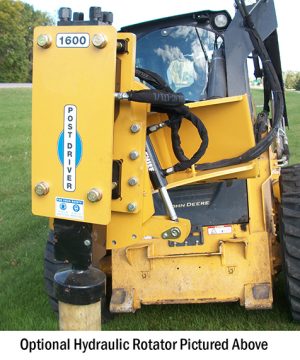

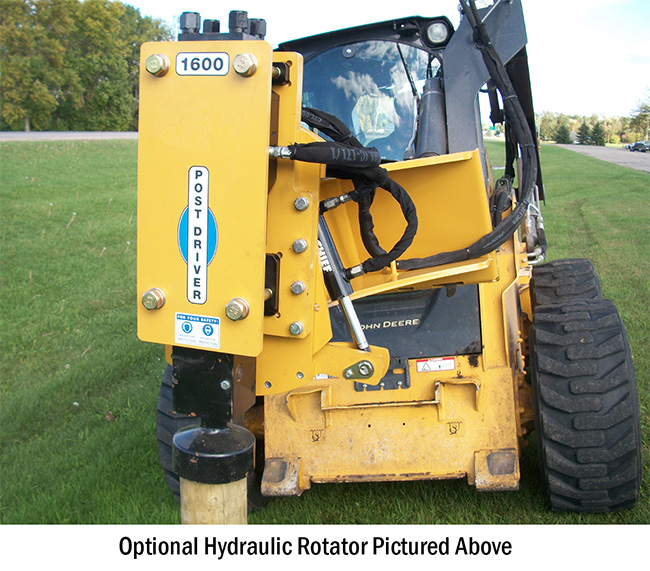

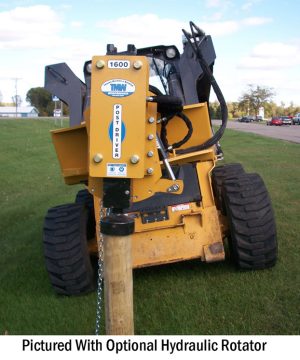

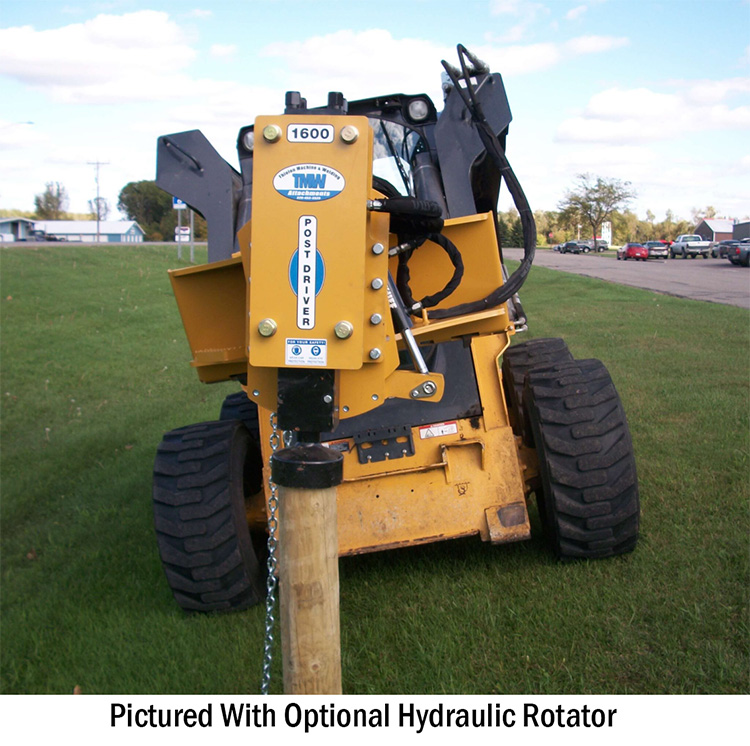

- Stationary Standard (Hydraulic Optional With Remote Electrical Rotate Valve)
- Makes Driving Posts Easy-Tackle demanding jobs with confidence. Whether youâre installing fence posts, signposts, or guardrails, the PD1600 and PD1850 make quick work of wood and steel posts alike.
- Available For Skid Steer Loaders, Tractors, Tel-Handlers, & Excavators
- Can Pound Wood & Steel Posts
- Reliable Performance with Minimal Maintenance – Engineered for long-term durability and straightforward upkeep, keeping you working instead of wrenching.
- 12 Month Warranty – Enjoy peace of mind knowing your investment is protected by a full-year manufacturer warranty.
- Low Profile Design – Operate in tight spaces and around obstacles without compromising on power or visibility.
- Plumb Bob Chain â Helps maintain vertical alignment for straighter posts
- Depth Gauge â Set consistent post depths for professional results
- Post Puller Chain â Remove unwanted or damaged posts quickly and safely
| Model | PD1450 | PD1600 | PD1850 | PD2000 |
| Operating Weight | 315 lbs | 1150 lbs | 1325 lbs | 1660 lbs |
| Striking Frequency (Blows per Minute) | 700-1200 BPM | 500-900 BPM | 400-800 BPM | 400-800 BPM |
| Hydraulic Oil Flow | 5-8 GPM
Unit Has A Flow Control Valve That Will Not Let You Overspeed The Unit. You Can Run This Unit On A Vehicle With Higher Flow Than 8 GPM. Excess Fluid Runs Through The Return Line. |
11-18 GPM | 13-24 GPM | 16-26 GPM |
| Working Pressure | 2000 PSI | 2000 PSI | 2200 PSI | 2200 PSI |
| Working Class | 500 ft/lbs | 750 ft/lbs | 1150 ft/lbs | 1500 ft/lbs |
| Max Post Size | 4-1/2″ | 7-1/8″ | 8-1/4″ | 12″ |
| Warranty | 12 Month | 12 Month | 12 Month | 12 Month |
*Unit Comes With (1) TMWL3232 Spike Point Tool & Your Choice Of Either A TMWL3230 7-1/8″ I.D. Domed Driving Tool Or A TMWL3231 7-1/8″ I.D. Flat Driving Tool. Please Specify Which You Would Like Included Upon Ordering.
Additional Driving Tools & Breaker Tools Are Available Below-
- Domed Driving Tools – The domed driving tool is best for driving pipe or non-decorative wood posts as it can leave a beveled edge.
- Flat Driving Tools – The flat driving tool is best for decorative wood posts.
- Chisel Tool â Cuts through compacted ground or surface obstructions.
- Spike Tool â Starts pilot holes or breaks tough surfaces before driving.
| Weight | 1150 lbs |
|---|
