Name: WF18504471-WCC
SKU: 91313
Availability: InStock

Must Add Drive To Complete Unit – See Requirements Below

Westfield Belt Conveyors

AGI Westfield Belt Conveyors are built tough to perform, yet designed and engineered for gentle handling of delicate seeds and commodities.

Gentle Handling

Specialty crops, seed and some commodities are very susceptible to impact damage caused by conventional grain handling systems. AGI Westfield Belt Conveyors minimize impact damage and help protect grade quality and germination performance of seed.

Low Maintenance / Long Wear

Engineered, designed and built for rugged, long-lasting performance with heavy-duty features like our quality rubber belting, rated up to 3,000 hours.

High Capacity

All AGI Westfield Conveyors are designed and built for high capacity and performance. Capacity increases as the angle of elevation decreases. See specifications for model performance.

Low HP

AGI Westfield’s unique design requires half the horsepower of screw augers, saving energy and freeing up larger tractors for other purposes.

Clean Convenience

AGI Westfield Belt Conveyors require very little clean-out when changing from one commodity to another; saving growers time and reducing contamination.

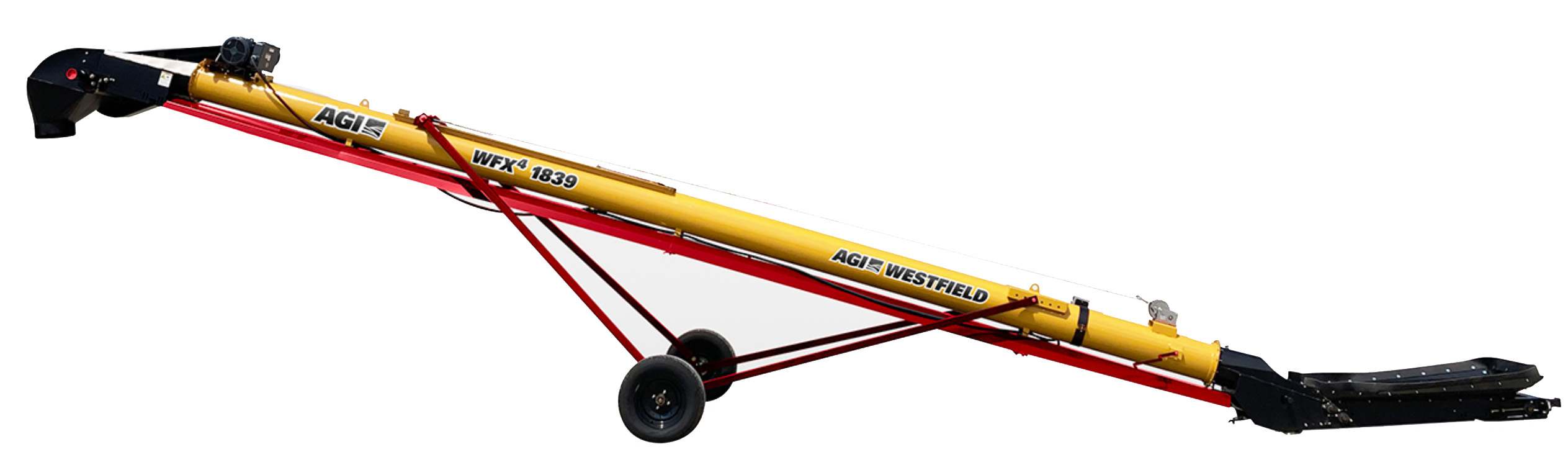

WFX⁴ 18S Field Loaders

High capacity. Low hassle.

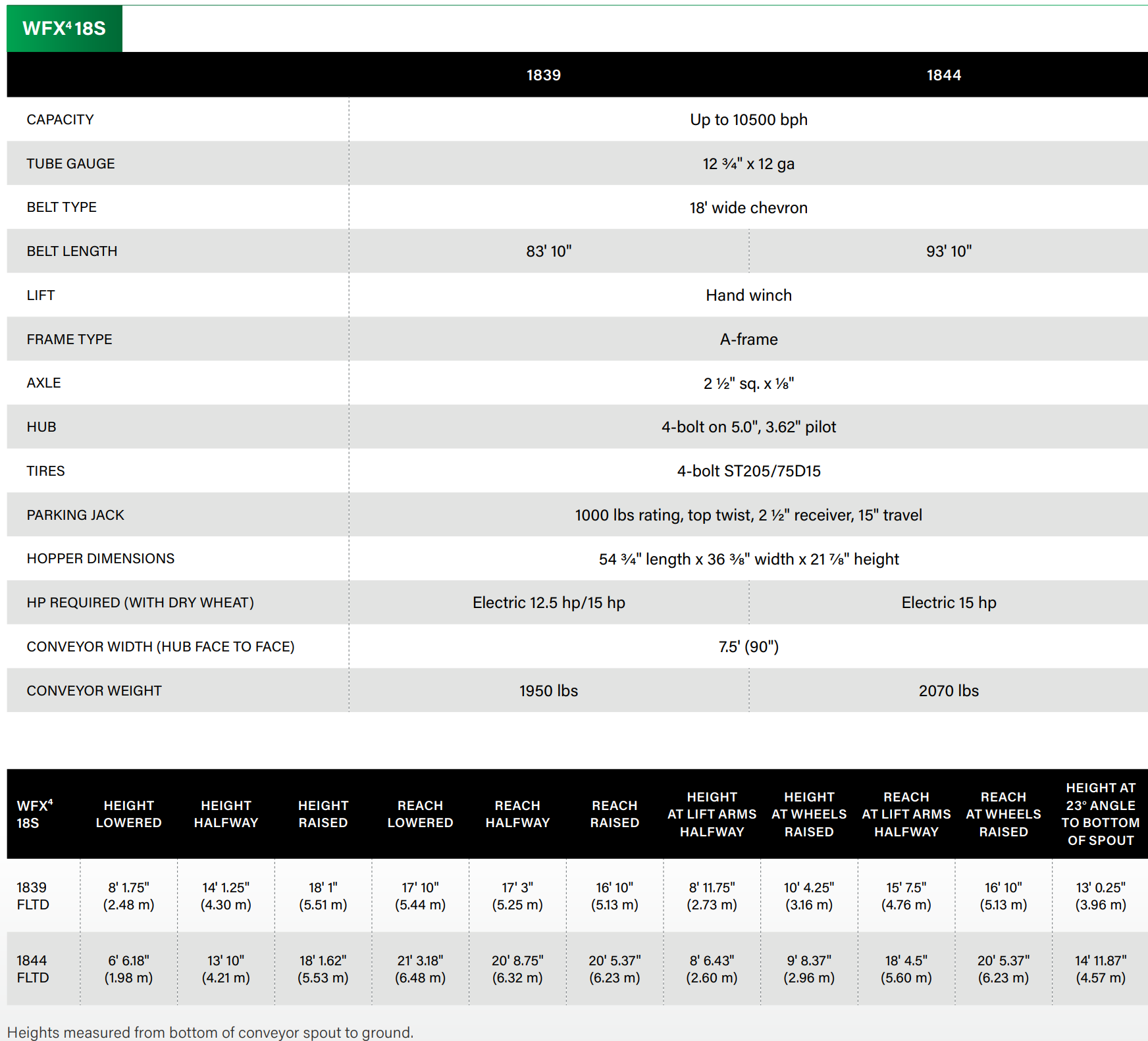

The WFX⁴ 18 series is engineered for serious throughput—delivering up to 10,500 BPH with a robust 12 ¾” tube and 18″ belt. Available in 39′ and 44′ lengths, this high-capacity electric conveyor is your go-to solution for fast, efficient bin unloads. Choose collapsible or steel hopper options for easy setup, enhanced clearance and reliable belt traction. This product is offered only within the United States.

No-Nonsense Discharge Hood

• Grain flows straight down from the spout

12 3/4″ Tube With An 18″ Belt

• 43% more capacity over 15S FX4

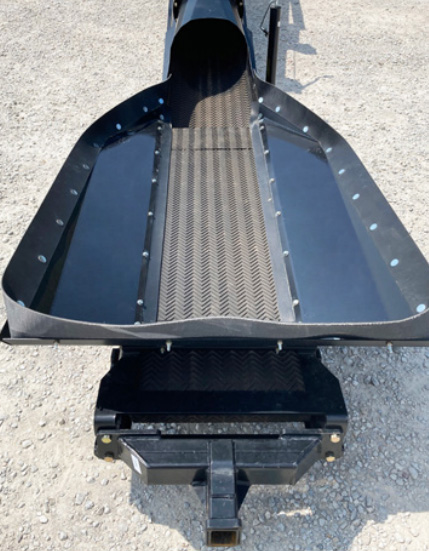

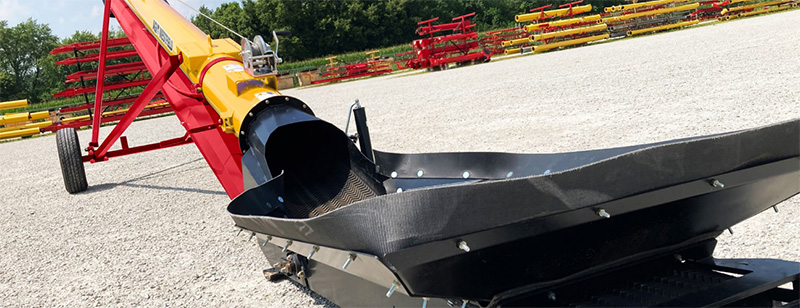

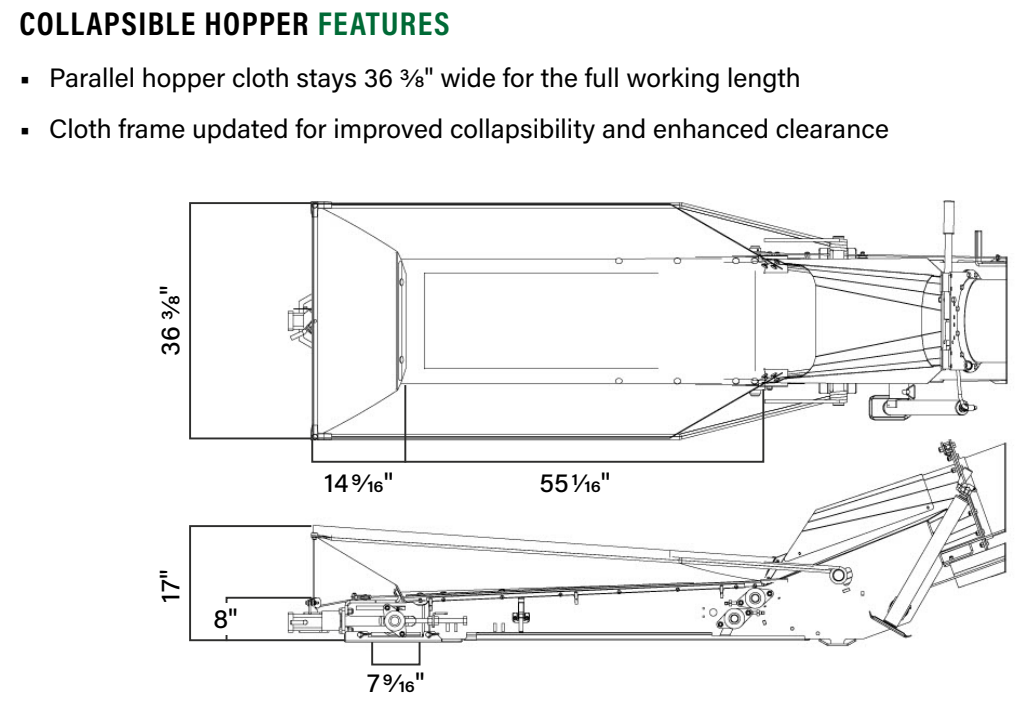

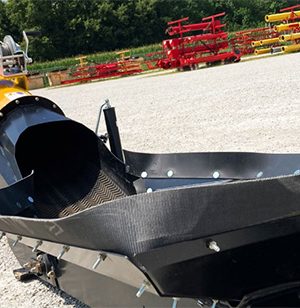

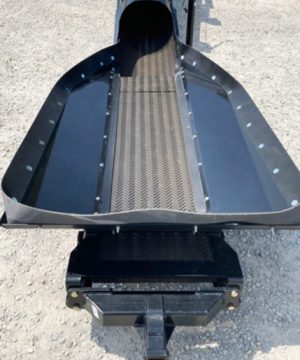

Lower Profile Collapsible Hopper & Handle

• More clearance under bins, easier setup and better maneuverability in tight spaces

New Pinch Drive Roller

• For reliable belt traction in adverse conditions

Larger Drive Roller

• To better handle higher capacities made possible with the 12 3/4″ tube and 18″ belt (5″ OD, up from 4 1/4″)

Pinch S Drive VS Pinch Top Drive

Pinch S Drive

AGI Westfield’s unique Pinch S-Drive is available on all S-Drive models and eliminates slippage by making it easy to set and maintain belt traction. The spring take up helps to maintain tension while less friction minimizes damage to the conveyor belt, also invoking minimal stress on the bearings. Gas, electric or PTO Pinch S-Drive options available.

Pinch Top Drive

An affordable option unique to AGI Westfield, is the Pinch Top Drive. The pinch roller system at the top end ensures positive belt traction. Electric or hydraulic Pinch Top Drive options are available.
