1P24 Stump Grinder | 20-45 HP | Cat. 1 Hitch | 540 RPM

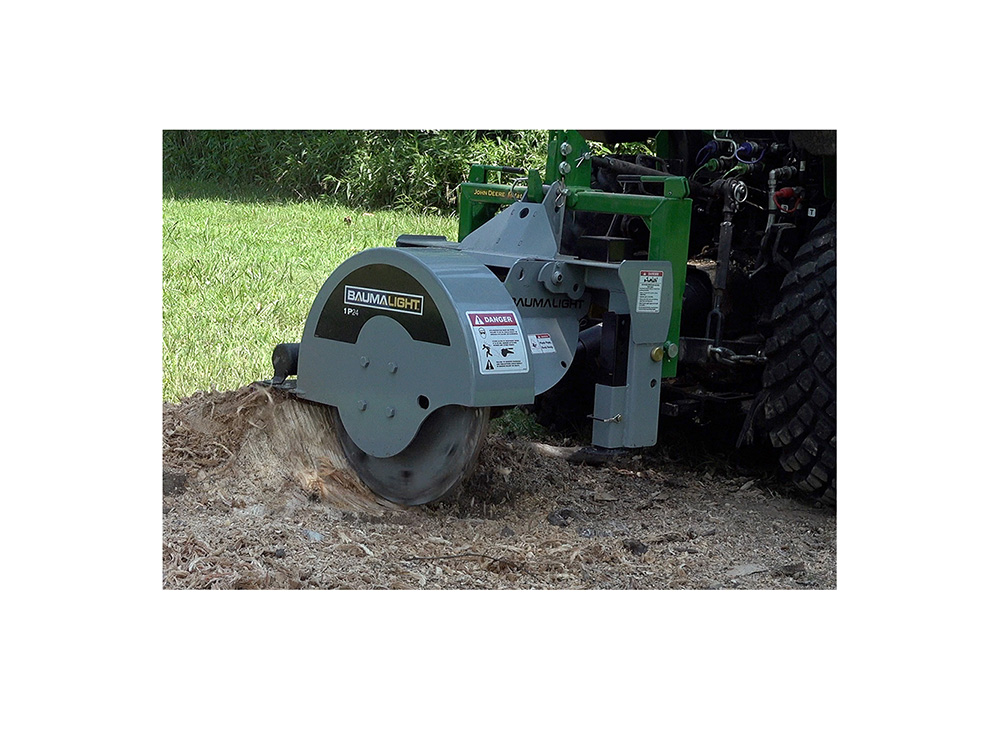

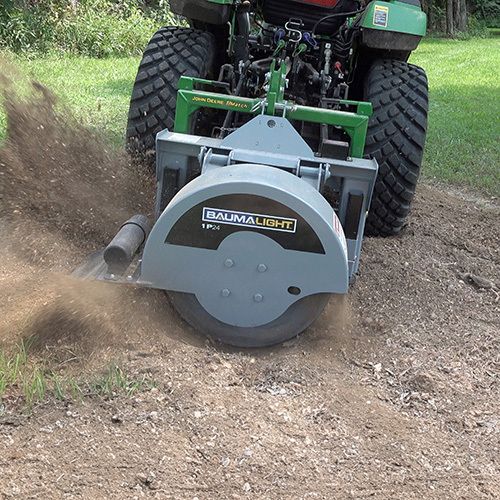

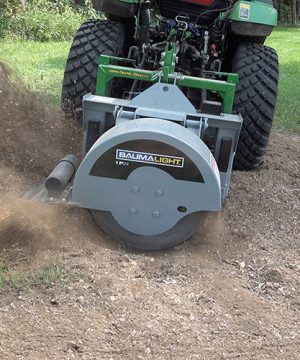

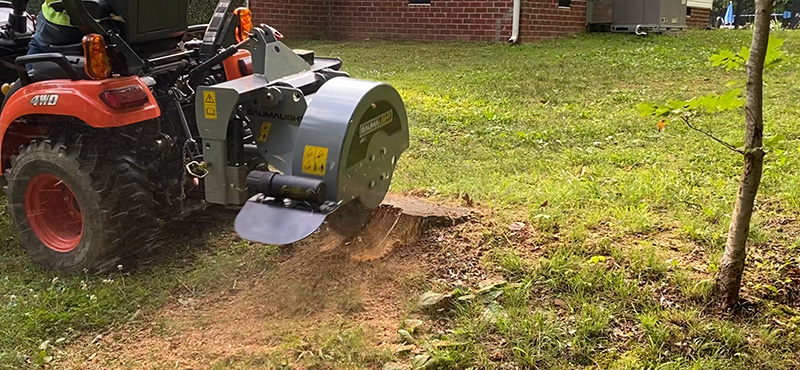

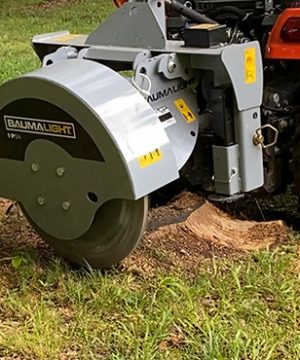

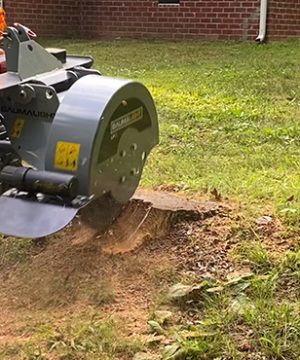

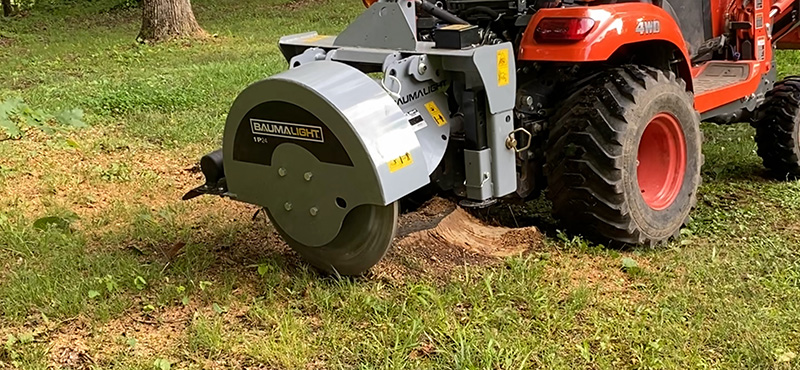

The 1P24 PTO stump grinder is designed for small tractors equipped with hydrostatic drive and Category 1 3PH. This tractor mounted stump grinder model allows you to grind small and midsized stumps efficiently with a 24″ Rotor, carrying 34 replaceable carbide teeth and has a cutting depth of 10″ above ground and 6″ below ground. With no hydraulics required this versatile PTO Stump Grinder is controlled with gravity feed which is ideal for tractors with no hydraulic remotes.
|Recommended HP Size||20-45||25-55||45-80||60-120|
|Maximum Engine HP||50||65||85||125|
|Maximum PTO HP||40||55||75||115|
|Number of Teeth||34||34||54||54|
|Tooth Construction||Carbide steel bolt-in||Carbide steel bolt-in||Carbide steel bolt-in||Carbide steel bolt-in|
|Cutting Wheel Speed||540 RPM||810 RPM||810 RPM||1000 RPM|
|Cutting Height – Above Ground||10″||18″||25″||25″|
|Cutting Depth – Below Ground||6″||8″||14″||14″|
|Maximum Cutting Depth – Per Pass||5″||6″||9″||9″|
|Maximum Horizontal Cut||22″||22″||32″||32″|
|Hub Torque||803 Ft.-Lbs.||803 Ft.-Lbs.||803 Ft.-Lbs.||1050 Ft.-Lbs.|
|Over Torque Protection||Slip clutch||Slip clutch||Slip clutch||Slip clutch|
|Hitch||Cat I||Cat I or II||Cat II||Cat II|
|No. of Remotes Required – Hydraulic||0||1 or 2||1 or 2||1 or 2|
|Requires 12 Volt DC||No||No||No||No|
|Unit Weight (Shipping) Lbs.||350||920||1231||1280|
QUICK HITCH COMPATIBLE

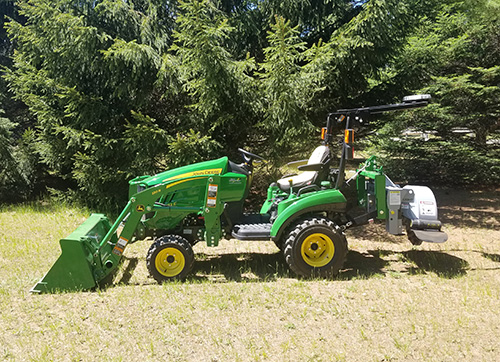

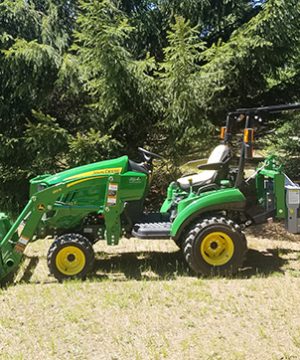

The 1P24 Stump Grinder is CAT 1 Quick Hitch compatible, allowing you to easily connect to your compact tractor.
SLIP CLUTCH PTO SHAFT
The 1P24 Stump Grinder includes a slip clutch PTO shaft. In the event that the grinder hits a rock, the slip clutch is designed to slip so that the shaft is not damaged. (this started in mid 2020).
For smoother operation, the 1P24 3-point hitch stump grinder features a self-regulating feed function that uses the weight of the grinder head. If you suddenly advance your tractor while grinding, a hinge will automatically swing the grinding head out a bit, keeping even pressure on the stump.
Like the finest saw blades, the cutting teeth on Stump Blasters are carbide tipped. This incredibly hard material ensures reliable cutting performance. When grinding stumps, buried hazards are inevitable; gravel, stones even metal posts are not uncommon to “find”. Our carbide teeth are designed to stand up to this abuse and keep on blasting stumps to dust.
Many hands make light work, or in this case fine mulch faster and easier. The high number of teeth means that each tooth does less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of these rugged teeth, which last longer and typically only need 2 or 3 replaced at a time. The bolt-on designed teeth allow for straightforward replacement.
The massive ¾” thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.
The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB ATWOOD, KS
