WLBX102RI
Wallenstein BX102RI Chipper | CAT II | 10″ Cap | 75-120 HP | 4-8 GPM | Hyd Feed W P3 Elec Speed Cont
$17,750.00
Weight: 2000lbs
Wallenstein BX102RI Chippers
- PTO Driven
- 10″ Chipping Capacity
- Dual Driven Hydraulic Rollers
- P3 Electric Roller Speed Control
10″ chipping capacity, the BX102RI PTO driven wood chipper will handle all your rural, fence line, or commercial landscaping projects. The two feed rollers are driven by two hydraulic motors and matched with automatic roller speed control. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.
| Chipping Capacity | 10″ (25 cm) |
| On-Board Intelligence | P3 Pulse™ |
| Chipper Type | Disc |
| Feed System | Dual Hydraulic Roller Feed |
| Engine HP Range | 75 – 120 |
| Required Hydraulic Flow | 4 – 8 gpm (15 – 30 lpm) |
| Chipper Hopper Opening | 30″ x 42″ (76 cm x 107 cm) |
| Chipper Rotor Opening | 10″ x 17″ (25 cm x 43 cm) |
| Number of Chipper Knives | 4 |
| Rotor Diameter | 36” (92 cm) |
| Rotor Weight | 425 lbs (193 kg) |
| Discharge Chute Height | 100″ (253 cm) |
| Discharge Chute Rotation | 360° |
| Drive System | PTO Direct Drive |
| Rated RPM | 540 – 1000 |
| PTO Height | 34″ (86 cm) |
| Total Weight | 1950 lbs (885 kg) |
| Dimensions Open (LxWxH) | 108″ x 85″ x 100″ (273 cm x 215 cm x 253 cm) |
| Dimensions Folded (LxWxH) | 85″ x 71″ x 100″ (215 cm x 180 cm x 253 cm) |
| Mounting System | Cat II, iMatch™ & Quick Hitch Compatible |
Adjustable Discharge Chute
Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.
Bearing Plate Protection Keeps wood chips from getting into the bearing and causing damage.
Cat II Quick Hitch Compatible Easily attach to your tractor without leaving your seat.
Dual Active Rollers Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.
Fold Up Feed Hopper – No Tools For easy transport. No tools required.

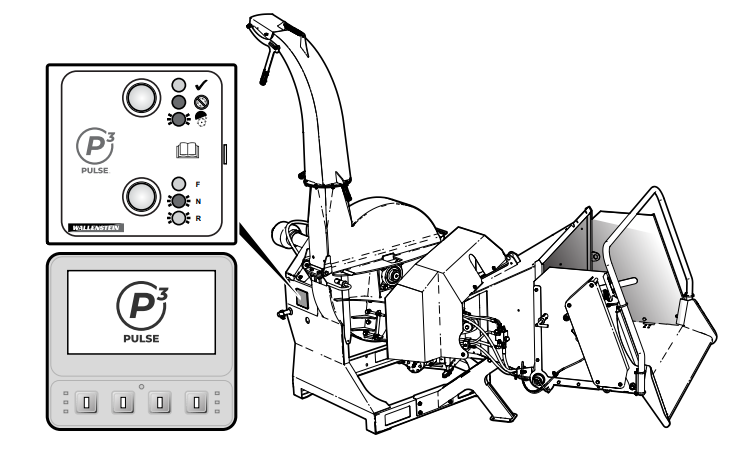

Oversized Heavy Duty Rotor Extra large chipper intake backed up by extra large rotor spinning with high momentum. Oversized Opening Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required. P3 Pulse The Wallenstein P3 PULSE Electronic Control System optimizes the capacity of the wood chipper. The P3 PULSE consists of an electronic controller and indicator panel. A rugged, user-friendly 4.3″ (109 mm) display is available as an option and replaces the indicator panel. The P3 PULSE tracks the rotor hours-of-operation and keeps the wood chipper working in the peak operating range by matching the feed rate with the rotor speed. As material is put into the chipper, a sensor on the rotor sheave continually monitors rotor rpm. If the rotor slows down under load, the P3 PULSE slows the feed roller speed, which allows the rotor to recover. If the rotor slows to below the minimum rotor speed setting, the P3 PULSE auto-reverses the feed rollers to pull material away from the rotor. When the rotor speed returns to the operating rpm, the P3 PULSE returns the feed rollers to forward motion to resume feeding material into the wood chipper. Positional Discharge Deflector The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired. Reversible Rotor Knives Standard reversible rotor knives double the longevity of your knives. Safety Control Bar Forward/reverse control with two stop positions. Shearbolt Protected PTO Drivetrain Move on from a power spike by simply replacing a single shear bolt. Twig Breaker The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
| Weight | 2000 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
