WLBX102S
Wallenstein BX102S Chipper | CAT II | 10″ Cap. | 80-120 HP | N/A GPM | Gravity Self Feed
$8,770.00
Weight: 1143lbs

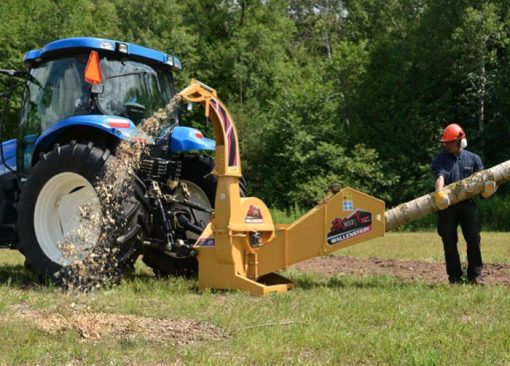

Wallenstein BX102S Chippers
10″ chipping capacity, the BX102S PTO driven wood chipper will handle all your rural and fence line property projects. The gravity infeed allows the branches to easily slide into the chipping chamber where the oversized heavy duty rotor breaks it down into small, manageable wood chips.
| Chipping Capacity | 10″ (25 cm) |
| Chipper Type | Disc |
| Feed System | Gravity |
| Engine HP Range | 80 – 120 |
| Chipper Hopper Opening | 25″ x 26″ (63 cm x 65 cm) |
| Chipper Rotor Opening | 10″ x 15″ (25 cm x 38 cm) |
| Number of Chipper Knives | 4 |
| Rotor Diameter | 36″ (91 cm) |
| Rotor Weight | 400 lbs (181 kg) |
| Discharge Chute Height | 89″ (226 cm) |
| Discharge Chute Rotation | 360° |
| Drive System | PTO Direct Drive |
| Rated RPM | 540 – 1000 |
| PTO Height | 23″ (58 cm) |
| Total Weight | 1143 lbs (519 kg) |
| Dimensions Open (LxWxH) | 71″ x 71″ x 89″ (180 cm x 180 cm x 226 cm) |
| Dimensions Folded (LxWxH) | 61″ x 58″ x 89″ (155 cm x 147 cm x 226 cm) |
| Mounting System | Cat II, iMatch™ & Quick Hitch Compatible |
Adjustable Discharge Chute
Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.
Bearing Plate Protection Keeps wood chips from getting into the bearing and causing damage.
Cat II Quick Hitch Compatible Easily attach to your tractor without leaving your seat.
Fold Up Feed Hopper – No Tools For easy transport. No tools required.
Oversized Heavy Duty Rotor Extra large chipper intake backed up by extra large rotor spinning with high momentum. Oversized Opening Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required. Positional Discharge Deflector The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired. Reversible Rotor Knives Standard reversible rotor knives double the longevity of your knives. Shearbolt Protected PTO Drivetrain Move on from a power spike by simply replacing a single shear bolt. Twig Breaker The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
| Weight | 1143 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
