WLBX72R
Wallenstein BX72R Chipper | CAT I/II | 7″ Cap | 50-85 HP | 3-6 GPM | Hyd Feed W/ Man. Speed Control
Price range: $10,125.00 through $101,215.00
Weight: 1300lbs

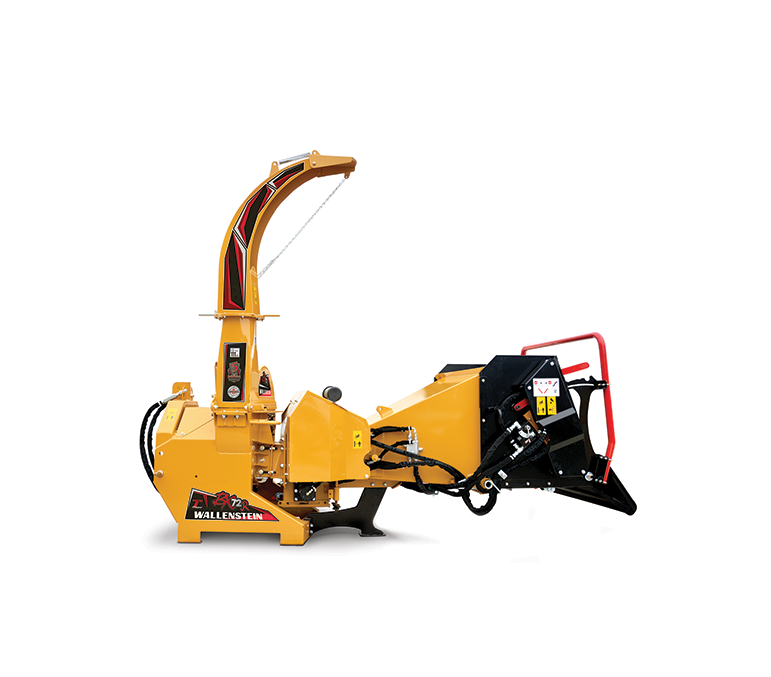

Wallenstein BX72R Chippers
- PTO DrivenÂ
- 7″ Chipping Capacity
- Dual Driven Hydraulic Rollers
- Manual Roller Speed Control

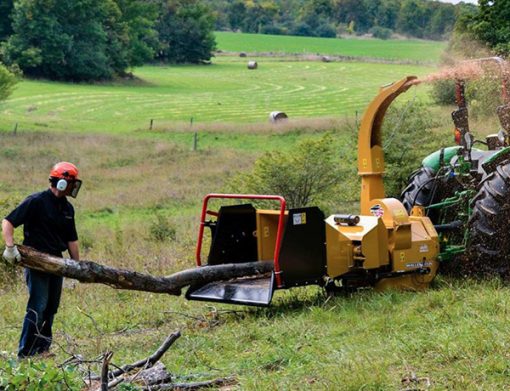

7″ chipping capacity, the BX72R PTO driven wood chipper will handle all your rural and fence line property projects. The two feed rollers are driven by two hydraulic motors dialed in to your desired roller speed. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.
| Chipping Capacity | 7″ (18 cm) |
| On-Board Intelligence | n/a |
| Chipper Type | Disc |
| Feed System | Dual Hydraulic Roller Feed |
| Engine HP Range | 50 – 85 |
| Required Hydraulic Flow | 3 – 6 gpm (12 – 23 lpm) |
| Chipper Hopper Opening | 26â x 35â (66 cm x 89 cm) |
| Chipper Rotor Opening | 7″ x 12″ (18 cm x 31 cm) |
| Number of Chipper Knives | 4 |
| Rotor Diameter | 28â (71 cm) |
| Rotor Weight | 185 lbs (84 kg) |
| Discharge Chute Height | 90â (228 cm) |
| Discharge Chute Rotation | 360° |
| Drive System | PTO Direct Drive |
| Rated RPM | 540 – 1000 |
| PTO Height | 26″ (66 cm) |
| Total Weight | 1300 lbs (590 kg) |
| Dimensions Open (LxWxH) | 108″ x 64″ x 90″ (275 cm x 163 cm x 229 cm) |
| Dimensions Folded (LxWxH) | 83″ x 56″ x 90″ (211 cm x 143 cm x 229 cm) |
| Mounting System | Cat I, iMatch⢠& Quick Hitch Compatible |
Adjustable Discharge Chute
Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.
Bearing Plate Protection Keeps wood chips from getting into the bearing and causing damage.
Cat I Quick Hitch Compatible Easily attach to your tractor without leaving your seat.
Dual Active Rollers Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.
Fold Up Feed Hopper – No Tools For easy transport. No tools required.
Oversized Heavy Duty Rotor Extra large chipper intake backed up by extra large rotor spinning with high momentum. Oversized Opening Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required. Positional Discharge Deflector The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired. Reversible Rotor Knives Standard reversible rotor knives double the longevity of your knives. Safety Control Bar Forward/reverse control with two stop positions. Shearbolt Protected PTO Drivetrain Move on from a power spike by simply replacing a single shear bolt. Twig Breaker The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
| Weight | 1300 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
