WLDPH532
DPH532 Tree Saw | 30″ Blade | CAT 1/2 | 540-Slip Clutch | Fixed Horizontal
$5,080.00
Weight: 880lbs

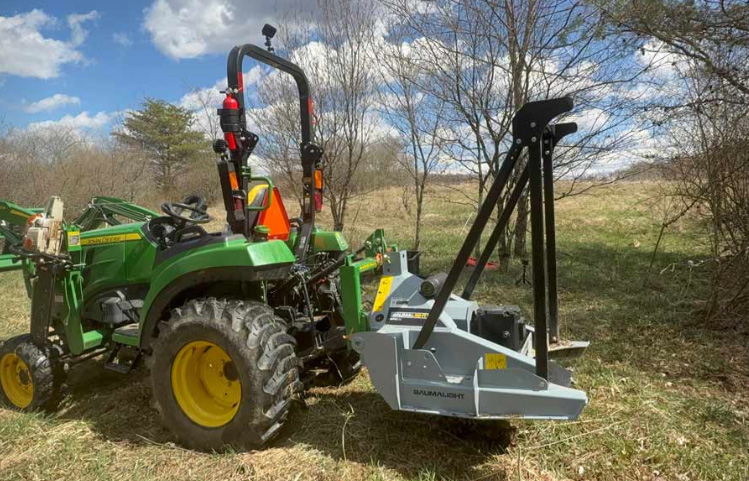

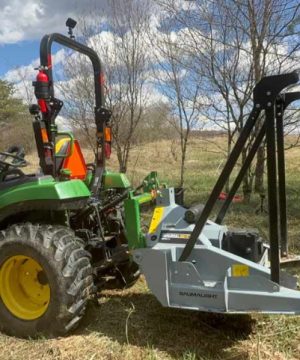

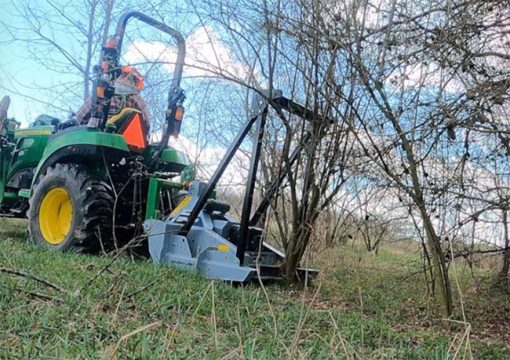

DPH532 3-Point Hitch Tree Saw With 30” Cutting Disc
The DPH532 tractor mounted tree saw is a small unit useful to develop farmland, clean up fence lines, woodlot and pasture cleanup solutions. This power take-off tree saw features a 30” cutting disc that can take up to 9.5” trees with rotatable high-speed teeth.
It is designed much like the DPH530 using the same blade and gearbox but comes with a little heavier frame that takes both CAT 1 & 2 quick hitch and also a higher horse power PTO shaft.
Same as the DPH530 and new DPH735, it also takes the hydraulic pusher bar as an option.
| Model # | DPH530 | DPH532 | DPH735 |
|---|---|---|---|
| Adaptor | CAT 1 | CAT 1 & 2 | CAT 2 |
| Max Engine HP | 50 | 80 | 85 |
| Max PTO HP | 40 | 90 | 75 |
| Minimum Hp | Any tractor that is heavy enough to handle the tree saw, it is the momentum of the blade that cuts the tree | ||
| Blade Angle | Horizontal | Horizontal | Horizontal |
| Rotation | Fixed | Fixed | Fixed |
| Drive Shaft | 540 Drive Shaft | 540 Drive Shaft | 540 Drive Shaft |
| Over Torque Protection | Slip clutch | Slip clutch | Slip clutch |
| Requires 12 V Electric | – | – | – |
| Hydraulics | – | – | – |
| Blade Diameter | 30″ | 30″ | 35″ |
| Max Cut | 10″ | 10″ | 12″ |
| Blade Material | AR400 | AR400 | Steel |
| Cut Thickness | 3/4″ | 3/4″ | 1.5/8″ |
| Tooth Part number | H3000 | H3000 | B8000 |
| Type of Teeth | High Speed Teeth | High Speed Teeth | Beaver Teeth |
| No. of edges per tooth | 3 | 3 | 4 |
| Number of Teeth | 12 | 12 | 12 |
| Quick hitch compatibility | Yes | Yes | No |
| Weight | 704 lbs | 880 lbs | 1000 lbs |
MAX 10 FT. TREE HEIGHT
Using a Baumalight Tractor Tree Saw to cut trees higher than 10 feet could result in injury. For the safety of the operator, Baumalight recommends a maximum tree height of 10 feet.
HEAVY DUTY BUILD
The DPH532’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.
QUICK HITCH COMPATIBLE
The DPH532 is CAT 1 & CAT 2 Quick Hitch compatible, allowing you to easily connect to your compact tractor.
HEAVY DUTY GEARBOX
The DPH532 comes with a heavy duty gearbox for high performance, better cutting power and long life.

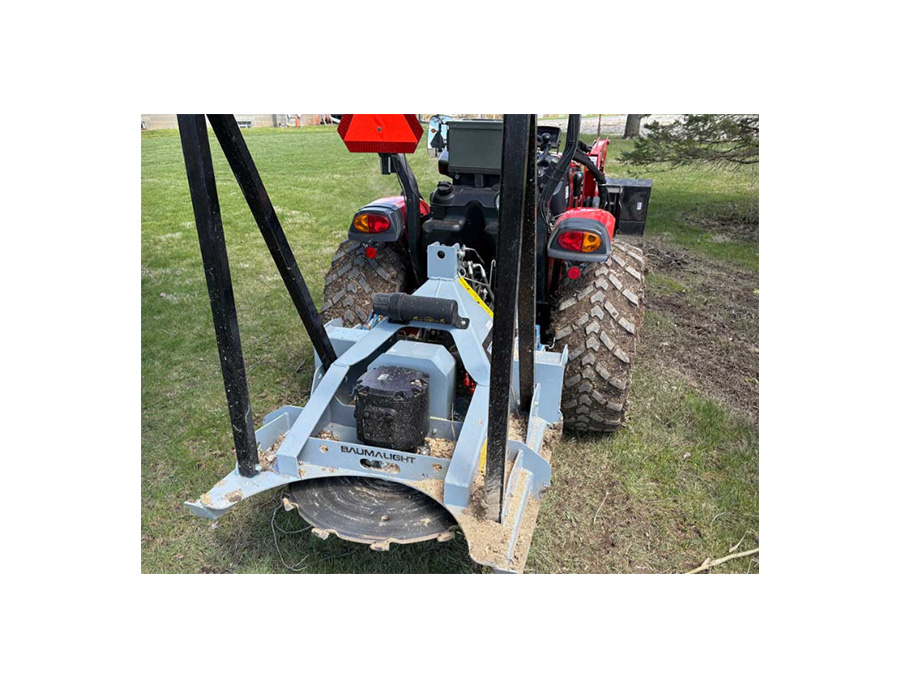

BLADE BOLTS DIRECT TO GEARBOX
For better performance and power, the blade bolts directly to the gearbox.
SLIP CLUTCH
To protect the gearbox and drive system, the slip clutch automatically disengaging the clutch at a predetermined torque.

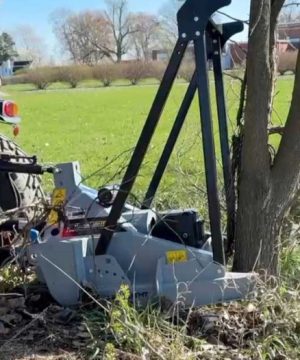

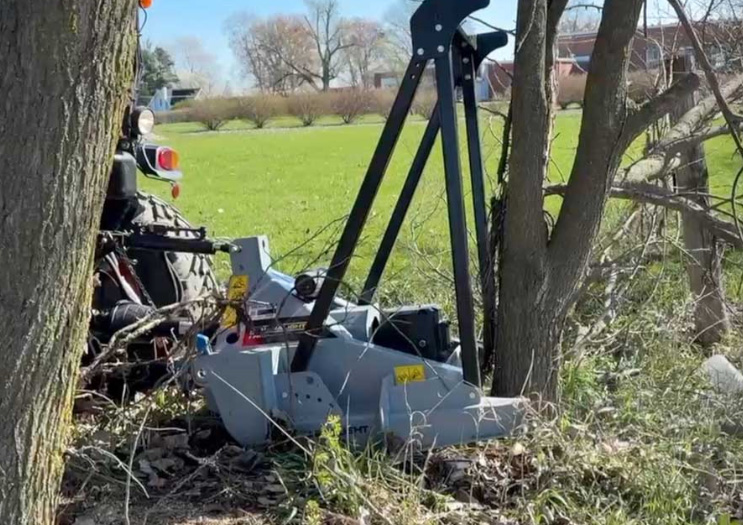

INTEGRATED PUSH BAR
The large push bar is angled to help guide any falling debris away from the operator.
REPLACEABLE HIGH SPEED TEETH
The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the tree bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.
EASY TEETH CHANGING
The high speed teeth design allows for easy rotation and changing of the teeth as needed.
FREE 6 PACK OF TEETH
Even high quality teeth need to be replaced in time. To keep you productive, Baumalight offers a free set of 6 replacement teeth with the purchase of every DPH530.

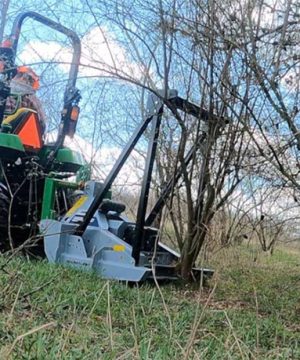

CLEAN CUTS
Baumalight Tree Saws makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.

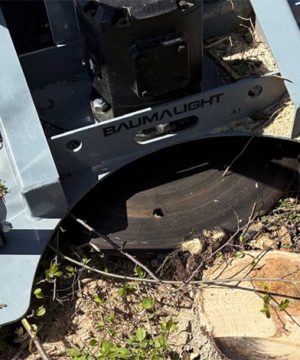

30” DIAMETER BLADE (10” CUT)
With a 30” diameter cutting blade, the DPH532 is capable of cutting full trees up to 10”.
1/2” THICK AR400 STEEL BLADE (3/4” CUT)
The ¾” thick heavy duty circular blade is designed and shaped from AR400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.

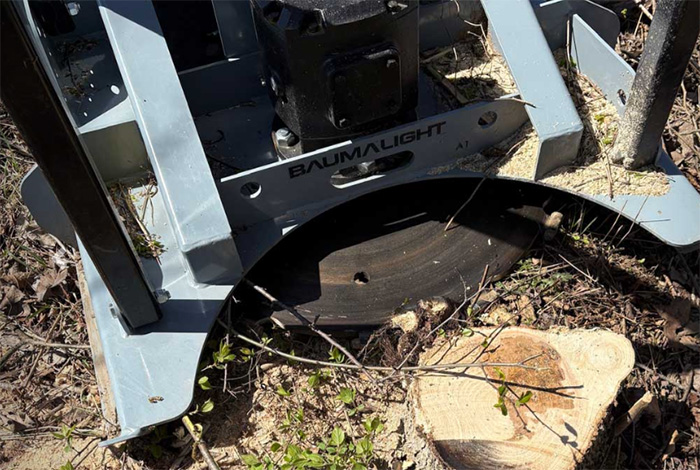

CLOSE TO THE GROUND CUT
The design of the DPH532 tractor mounted tree saw allows for a clean cut that is very close to ground level.
PROTECTIVE POWDER COAT
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
| Weight | 880 lbs |
|---|
