WLDR448-D003429
DR448 Tree Spade | Univ Skid | 48″ Rootball Dia | 4 Blades | AUX Controls
$27,935.00
Weight: 3785lbs

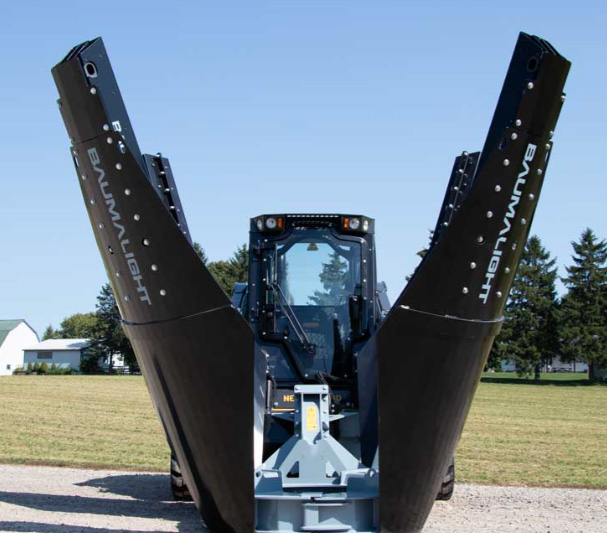

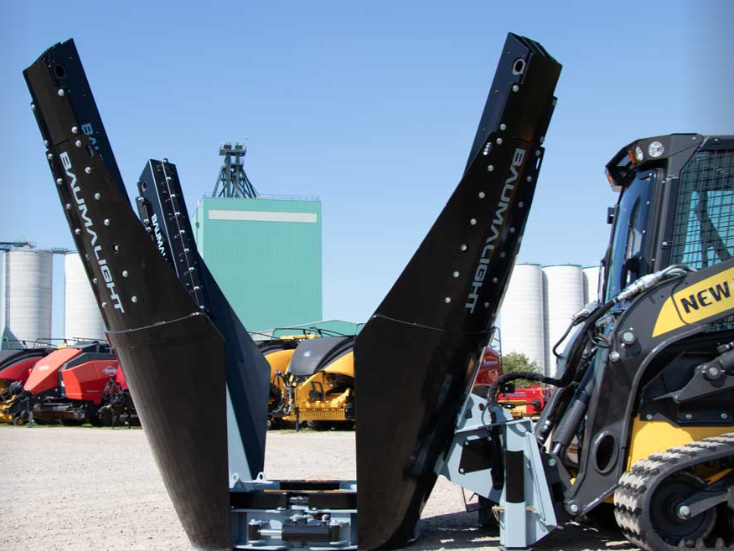

DR448 Skidsteer Industrial Tree Spade
The Baumalight DR448 Tree Spade is engineered for durability and long-lasting performance, utilizing heavy-duty T1 steel construction. Its robust hydraulic system delivers consistent, reliable power, ensuring years of dependable operation. Each spade is powered by a high-performance hydraulic cylinder, designed to maintain the spade’s position when lifting trees along with their root balls from the ground.
The DR448 is compatible with standard skid steers, making it easy to transport and versatile for various applications. With a spade diameter of 48 inches, it is well-suited for transplanting trees up to 6 inches in diameter for evergreen softwoods and 5 inches for hardwoods. The 5/16-inch T1 steel blade is exceptionally tough and durable, providing the strength to cut through soil and roots with minimal effort, reducing the stress on trees during relocation quick and efficiently.
Whether you’re a professional landscaper, a tree nursery owner, or a DIY enthusiast, the Baumalight DR448 Tree Spade is an excellent choice for all your tree-moving needs with minimal disturbance to that tree’s root systems, ensuring that it can survive and continue to grow in a new location.
- 6″ Evergreen
- 5″ Hardwood
- Wheeled Skidsteer – 10,870 lbs
- Tracked Skidsteer – 9,870 lbs
- Wheel Loader – 8,870 lbs Min.
- 3PH – 10,870 lbs Min.
- Tractor Loader – 11,870 lbs Min.
- Backhoe – 9,870 lbs
- Telehandler – 8,870 lbs

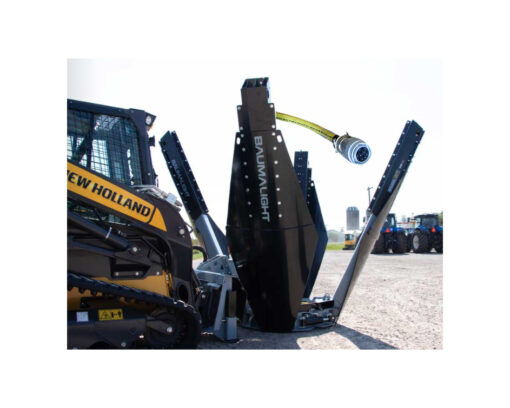

AUX Connection
Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.
| Model | ST324 | ST330 | SS330 | ST440 | ST650 | DR434 | DR438 | DR444 | DR448 |
|---|---|---|---|---|---|---|---|---|---|
| Standard mount | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer | Universal skidsteer |
| Extension kit | Check | Check | Check | Check | Not needed | Not needed | Not needed | Not needed | Not needed |
| Tree Size (Evergreen) | 3″ | 3″ | 3″ | 4″ | 5″ | 3.5″ | 4″ | 5″ | 6″ |
| Tree Size (Hardwood) | 1.5″ | 2.5″ | 2.5″ | 3″ | 4″ | 3″ | 3.5″ | 4″ | 5″ |
| Root Ball Diameter | 24″ | 30″ | 30″ | 40″ | 50″ | 34″ | 38″ | 44″ | 48″ |
| Root Ball Depth | 23″ | 29″ | 29″ | 30″ | 43″ | 23″ | 27″ | 31″ | 38″ |
| Opening (Width) | 20″ | 23″ | 60″ | 52″ | 47″ | 10″ | 17″ | 27″ | 30″ |
| Blade Angle (Degrees) | 25° | 25° | 25° | 25° | 25° | 25° | 25° | 25° | 25° |
| Number of Blades | 3 | 3 | 3 | 4 | 6 | 4 | 4 | 4 | 4 |
| Blade Thickness | 1/4″ Mild Steel | 3/8″ Mild Steel | 3/8″ Mild Steel | 1/4″ AR400 | 1/4″ AR400 | 5/16″ T1 | 5/16″ T1 | 5/16″ T1 | 5/16″ T1 |
| Slides | Steel | Steel | Steel | Steel | Steel | Nylon | Nylon | Nylon | Nylon |
| Blade Truncation | Semi | Semi | Semi | Full | Semi | Semi | Semi | Semi | Full |
| Towers Swing Hinge | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Hydraulic Flow | 5-20 (GPM) | 5-20 (GPM) | 5-20 (GPM) | 5-20 (GPM) | 5-20 (GPM) | 5-25 (GPM) | 5-25 (GPM) | 5-25 (GPM) | 10-35(GPM) |
| Hydraulic Pressure | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) | 2900-4000 (PSI) |
| Weight | 1100 | 1356 | 1550 | 1934 | 3238 | 2480 | 2500 | 2950 | 3785 |
| Weight with Root Ball | 1400 | 1865 | 2050 | 3134 | 5785 | 2865 | 3410 | 4150 | 6020 |
Anti Slip
Non slip step pads for easy entry.
TWO ADJUSTABLE STABILIZERS STANDARD FOR DR SERIES TREE SPADES
To quickly adjust to different root ball sizes in the field, the DR series tree spades are shipped standard with two adjustable stabilizers mounted on the skidsteer plate.
JIC Fittings
Secure hydraulic connections and easy servicing.
Sleeved Hoses
All hoses are sleeved for operator and hose protection.
Powder Coat Finish
Heavy-duty construction and a durable powder-coated finish.
Lockable Latch
Easy, hands free lockable latch makes for a stronger and sturdier frame while spading trees.
Lifting Eye
Lifting eyes for easy storage and transport.
Truncated Blades
The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to hold sandier soils.
Nylon Sliders
All 4 sides of the towers are covered by a long-life nylon sliders. These replaceable nylon sliders do not require greasing and allow the blades to slide effortlessly, without binding.
HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Greaseable Pins
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
Electric Control Kit With 20′ Wire | Required Live Pins-Lighter Plug (1)
For in cab convenience, the wired controller option gives you the ability to control the spading operation from the seat of your carrier. The hand held remote control can activate all digging and swigging actions using the power from your 12 volt plug. The controller comes with 20 feet of cable that can be fastened along the boom to avoid pinch points while powering the Nomad Tree Spades.
AUX Connection
Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.
Wireless Control
For the ultimate in convenience, the wireless controller option gives you the ability to move freely around the spading operation for the most precise insertion and extraction points available.
Get Your Fix
Tractor loaders often have more lift capacity than skidsteers and in some cases give you greater flexibility in positioning, however because positioning around the tree to be moved is so critical and ground level visibility is limited on tractor loaders we recommend that using a tree spade on a loader is a two person job. Once the frame is positioned on the ground, the controls for the spades are located on the tree spade frame, so that the operator has the best possible visibility during the spading operations.
| Weight | 3785 lbs |
|---|
