WLDT515RH
Baumalight Mini Dumper | Tracked-Self Propelled | 22 HP Honda | 146 Gal Bucket Cap.
$21,700.00
Weight: 2465lbs
BAUMALIGHT DUMPER
Meet the growing line of Baumalight Mini Dumpers – built for landscapers to effortlessly move fill and debris in tight spaces. With the ultimate maneuverability, faster travel speeds from higher engine power, our new line of mini dumpers is designed later technology and are heavier duty then many you will find out there. With a variety of variations including tracked, wheeled or trailered models, these Mini Dumpers feature a heavy-duty dump bucket made with ¼” thick steel. Built for ease of use, the joystick controls are designed to allow the operator to smoothly operate the boom while driving at the same time. With a similar drive system to the Baumalight Mini Skidsteer, both sides of the self-propelled Mini Dumper are driven using a dedicated dual piston hydraulic pump.
We also are very open to working with customers on new models and features and will offer preproduction discounts if new ideas are brought to us.

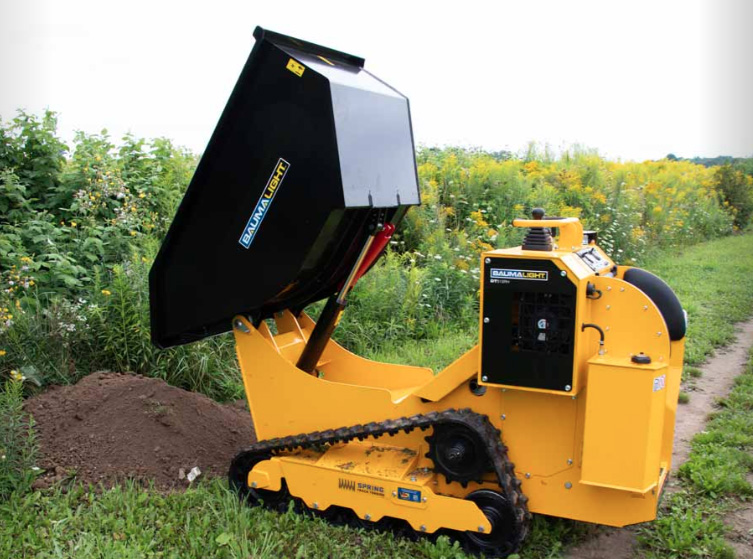

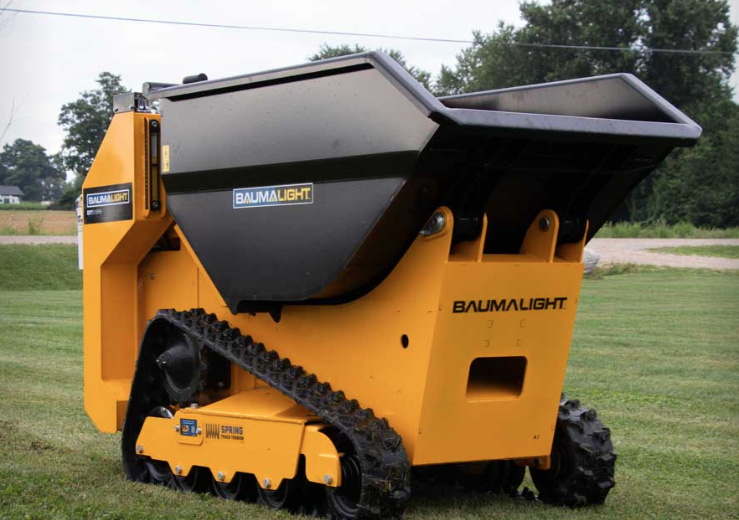

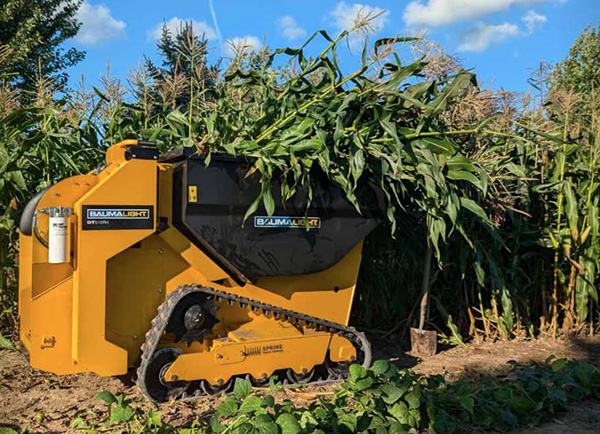

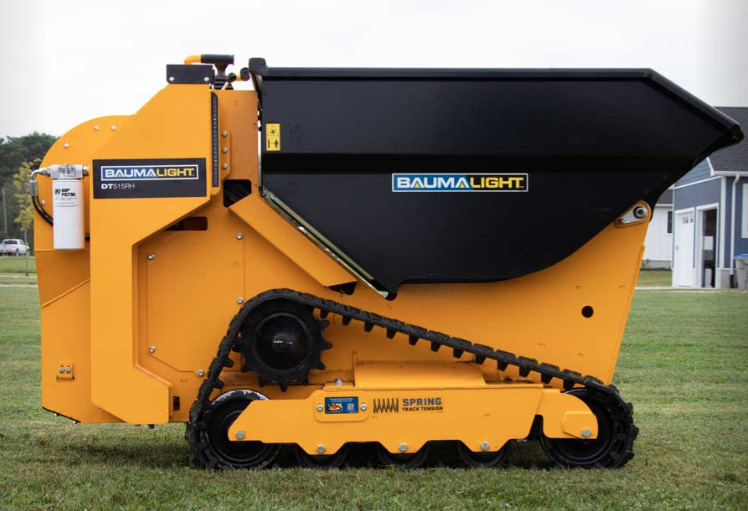

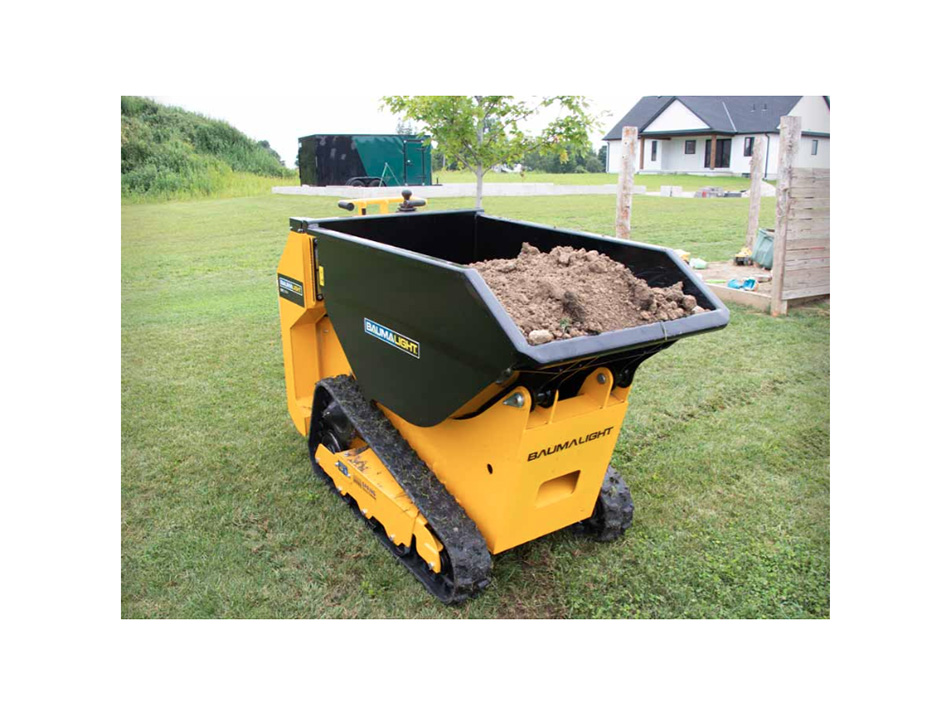

DT515RH Self Propelled Mini Dumper – Tracked

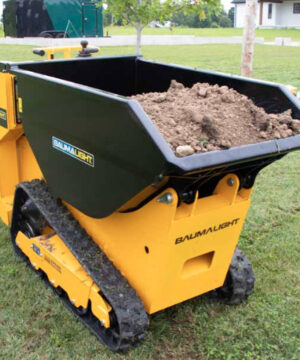

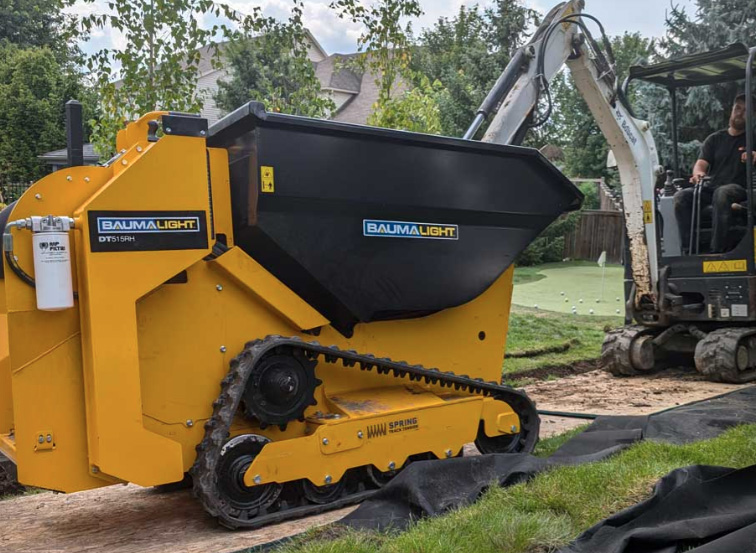

The DT515RH Mini Tracked Dumper is the ideal solution for landscapers to easily move fill and debris through narrow openings and tight spaces. Powered by a 22 HP Honda engine, this Tracked Dumper has a ground speed of 7.8 km/h and offers a ground clearance of 7.4 inches. The Tracked Mini Dumper is built with a heavy duty ¼” thick steel dump bucket and is designed with a similar drive system to the tracked Baumalight Mini Skidsteer where both sides are driven using a dedicated dual piston hydraulic pump. The joystick controls are designed to allow the operator to smoothly operate the bucket while driving at the same time as the bucket is powered by a third axillary hydraulic pump.
| UNIT | DW51QT | DT515RH |
|---|---|---|
| Net Engine HP | – | 22.1 HP |
| Displacement | – | 0.688 L |
| Engine Type | – | GAS |
| Fuel tank size | – | 13 |
| Engine Brand | – | Honda |
| Model | – | GX690 |
| Drive type | Pull | Hydrostatic |
| Drive control | – | Joy stick |
| Carriage | Tires | Tracks |
| Size | 18×8.50-10 6P | 150x72x45 (Upgradable-230x72x45) |
| Travel Speed | – | 7.84 KM/h |
| Hydraulic Reservoir Capacity | – | 23.75 L |
| Number of pumps | – | 3 |
| Bucket control | Hydraulic AUX | Lever |
| Normal bucket capacity | 1 Yard(0.72 m) | 0.7 Yard(0.55 m) |
| Bucket heaped capacity | 1.2 Yard(0.93 m) | 0.9 Yard(0.66 m) |
| Bucket Liquid capacity | 0.7 Yard(0.52 m) | 0.5 Yard(0.38 m) |
| Bucket tip height (Lifting condition) | 87.5″ | 83.75″ |
| Ground clearance | 7.25″ | 7.37″ |
| Overall size (With bucket) | 41.5″ W x 79″ L x 48.5″ H | 35.8″ W x 86.6″ L x 55″ H |
| Shipping Weight | 1004 lbs | 2465 lbs |
Bucket Safety Lock Bar

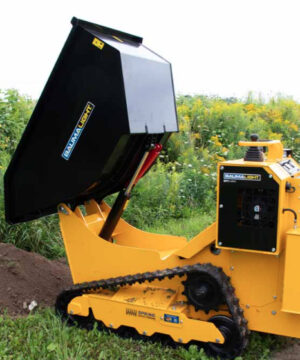

When you need to perform maintenance, the bucket safety lock bar allows you to raise the bucket and engage the locking bar. How you can safety stand under the raised bucket without risk of the bucket dropping.

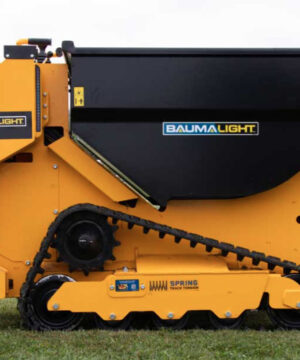

Spring Cushioned Front Idler

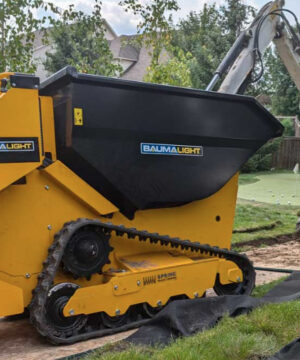

The front idler in the tracked model is spring cushioned. This spring cushioning provides relief on the undercarriage when the track hits a curb or a large rock.

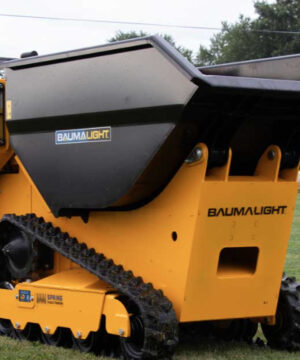

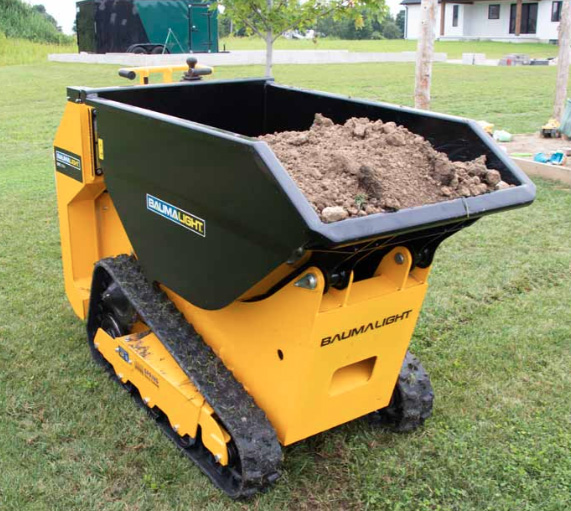

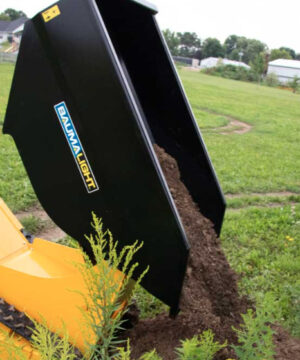

Heavy Duty Bucket
The bucket is constructed with 1/4” thick steel plates.

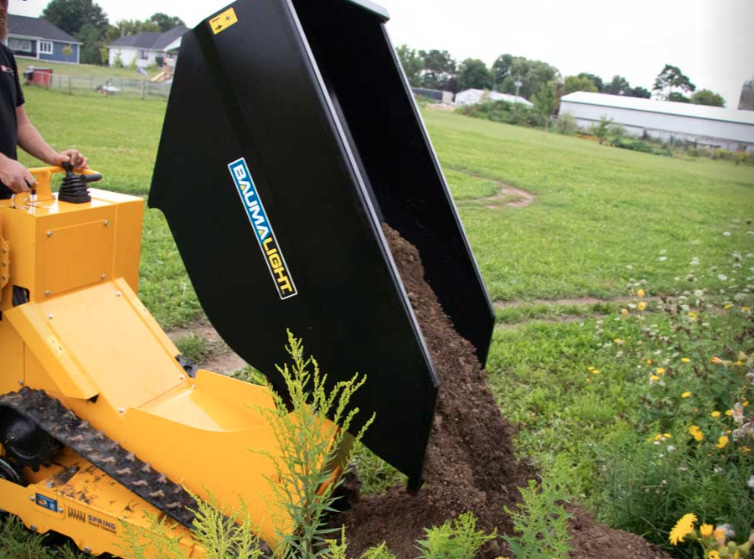

Joystick Controls
The joystick control system allows you to easily operate the drive system and the boom at the same time.
Aux Pressure Gauge & 12V Plug
The dashboard has a convenient auxiliary pressure gauge and a 12V plug.
Ground Speed
The ground speed of the Baumalight Mini Skidsteers is quite impressive with the tracked model able to reach 4.57 km/h.
Honda Gas Engine

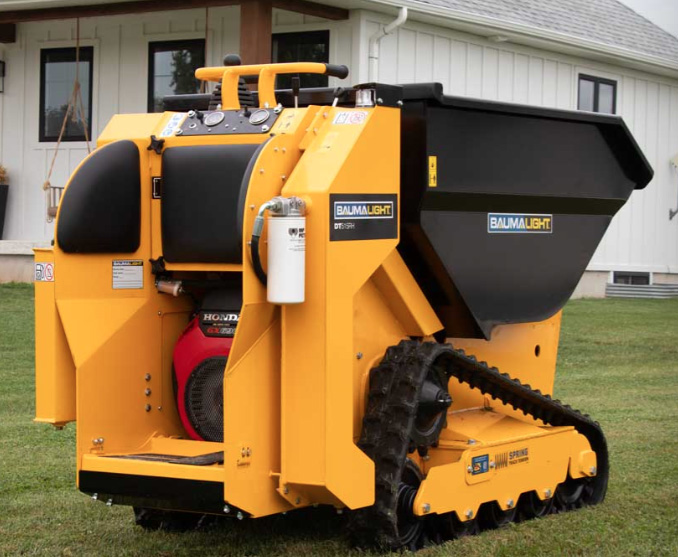

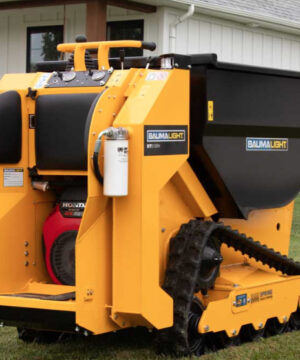

The dt515rh model is powered by a reliable 22.1 HP (688cc) Honda GX690 gas engine.
High Capacity Fuel Tank With Gauge
The high capacity fuel tank holds 40L of fuel allowing you to work longer. The tank also comes with a convenient fuel gauge.
Double Piston Pump Driven
Both sides of the Mini Dumper is driven by a dedicated dual piston hydraulic pump
Ground Clearance
The DT515RH has a ground clearance of 7.37 inches.

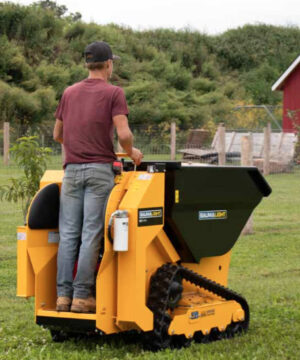

Full Stand-in Operator Compartment

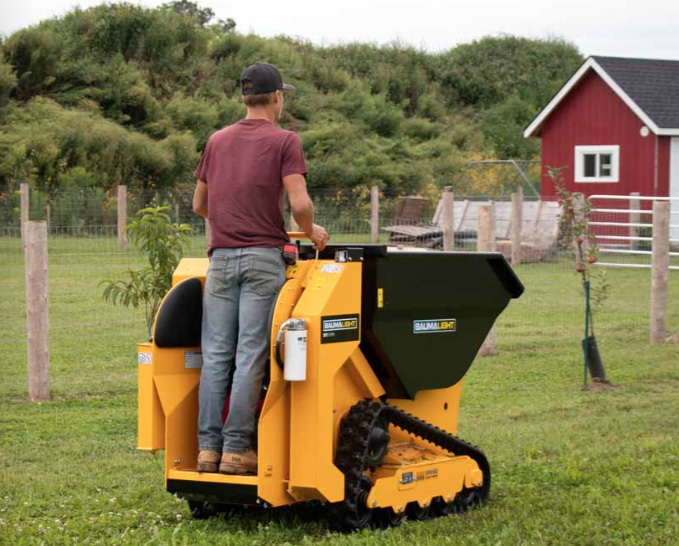

For a safer and more comfortable operation, the operator compartment allows you to fully stand inside.
Excellent Accessibility
Grease Pins On All Pivot Points
The Mini Dumper features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
Hardened Steel Bushings
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
| Weight | 2465 lbs |
|---|
