WLDW51QT
Baumalight Mini Dumper | Trailered | Hyd AUX | 204 Gal Bucket Cap.
$4,606.00
Weight: 1004lbs
BAUMALIGHT DUMPER
Meet the growing line of Baumalight Mini Dumpers – built for landscapers to effortlessly move fill and debris in tight spaces. With the ultimate maneuverability, faster travel speeds from higher engine power, our new line of mini dumpers is designed later technology and are heavier duty then many you will find out there. With a variety of variations including tracked, wheeled or trailered models, these Mini Dumpers feature a heavy-duty dump bucket made with ¼” thick steel. Built for ease of use, the joystick controls are designed to allow the operator to smoothly operate the boom while driving at the same time. With a similar drive system to the Baumalight Mini Skidsteer, both sides of the self-propelled Mini Dumper are driven using a dedicated dual piston hydraulic pump.
We also are very open to working with customers on new models and features and will offer preproduction discounts if new ideas are brought to us.
DW51QT Mini Wheeled Dumper – Tow Behind

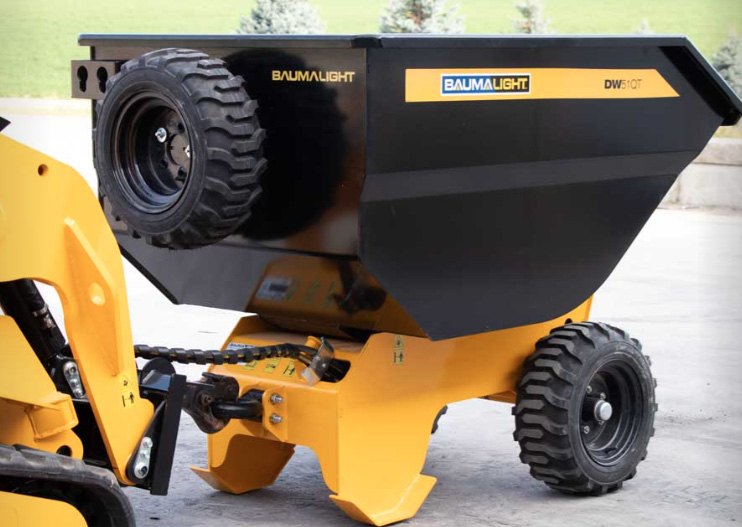

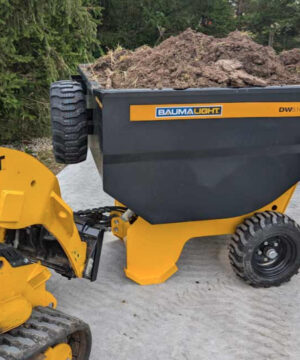

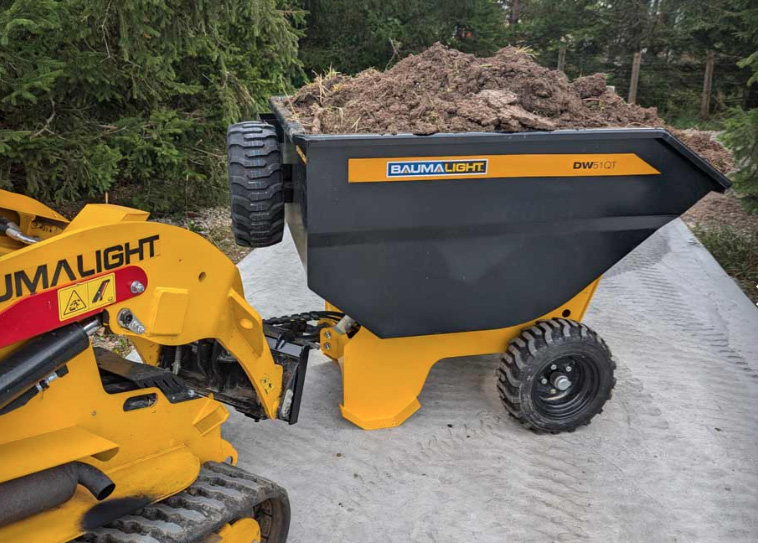

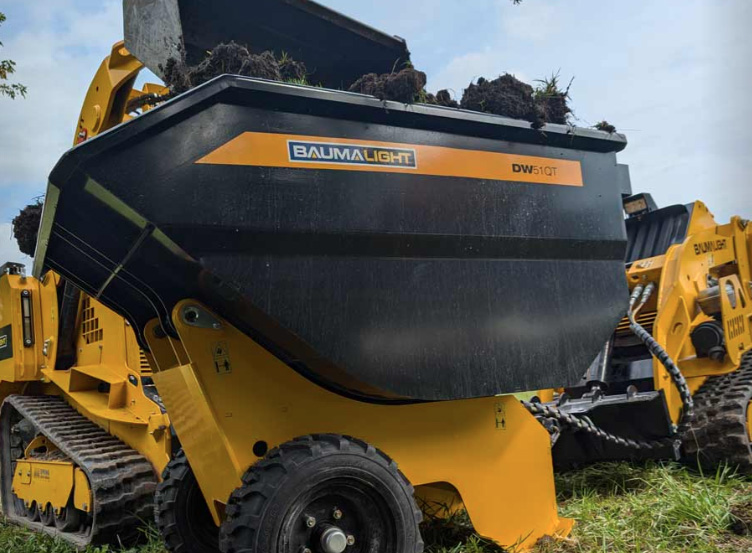

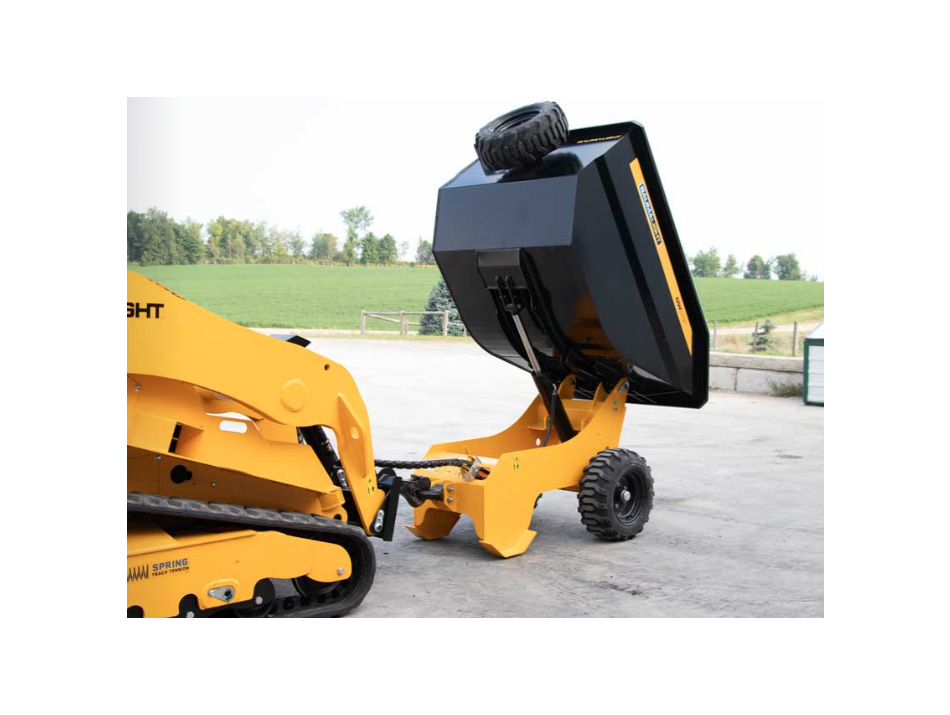

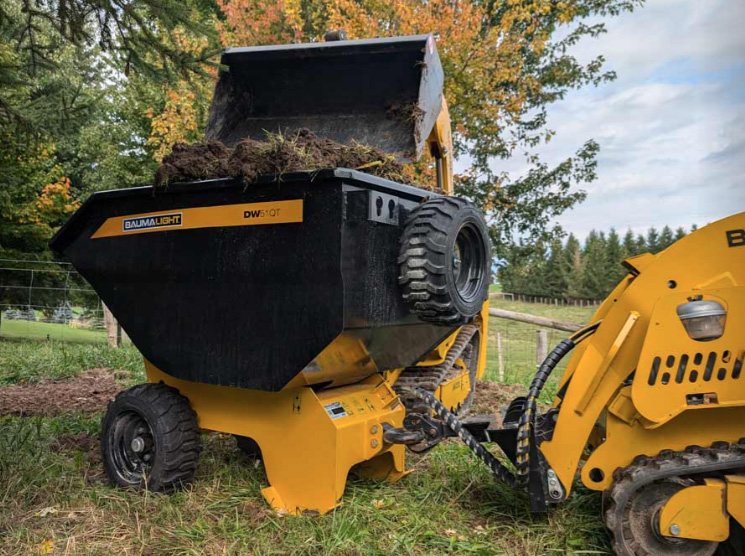

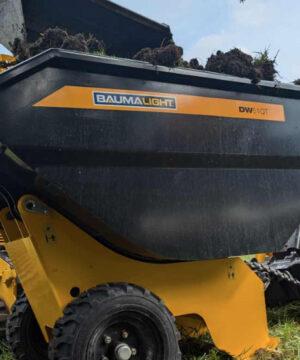

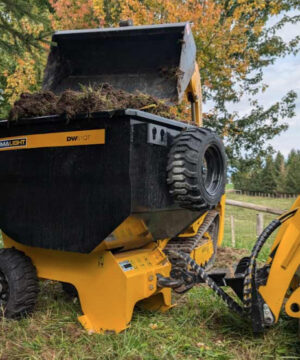

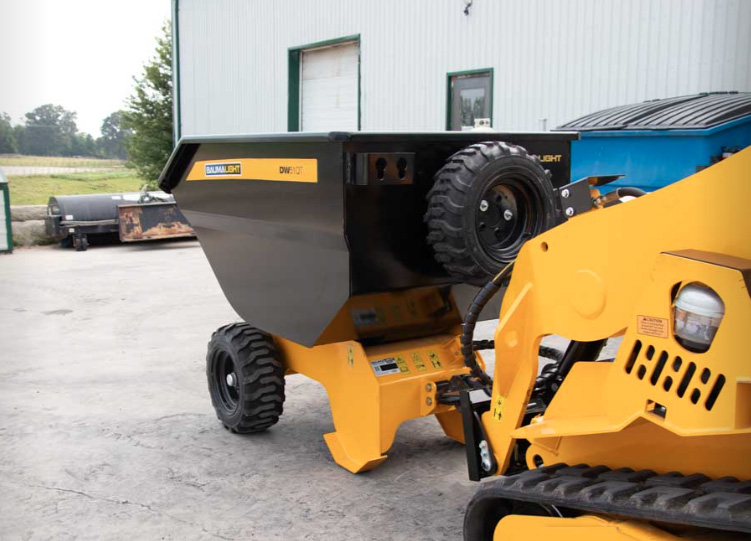

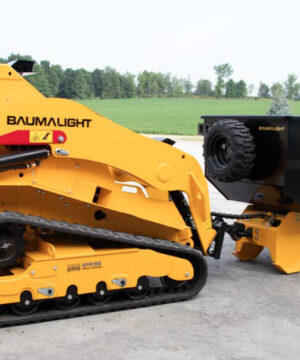

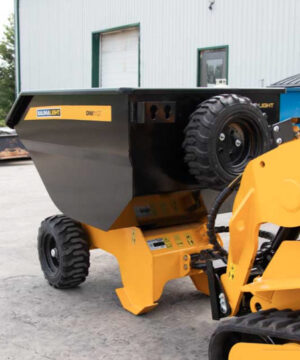

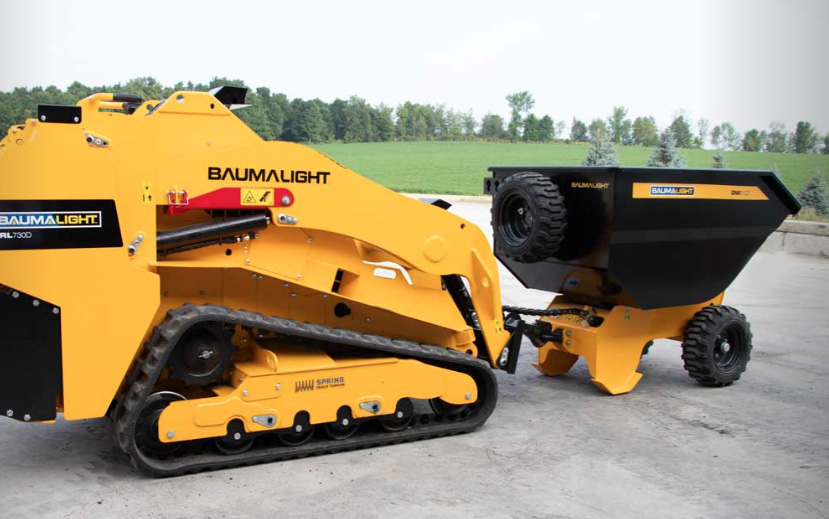

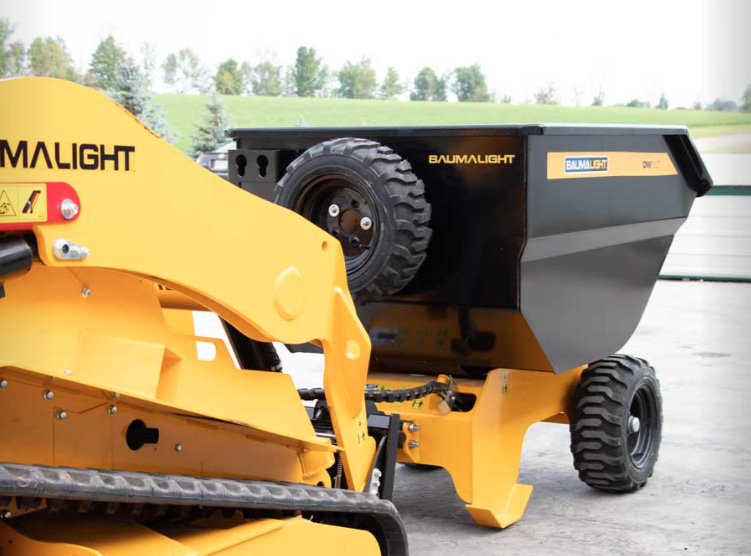

The DW51QT Mini Trailer Dumper is a cost-effective solution for landscapers to easily move fill and debris through narrow openings and tight spaces. The QT Mini Dumper model uses a mini skidsteer adapter to easily towed by your mini skidsteer. Powered by the auxiliary hydraulics from your carrier, this model is low maintenance and efficient. With a ground clearance of 7.25 inches, this model has a heaped bucket capacity of 1.2 Yard (0.93 m). DW51QT Mini Dumper is built with a heavy duty ¼” thick steel dump bucket and has 18-inch tires. The unit comes standard with a spare tire.
| UNIT | DW51QT | DT515RH |
|---|---|---|
| Net Engine HP | – | 22.1 HP |
| Displacement | – | 0.688 L |
| Engine Type | – | GAS |
| Fuel tank size | – | 13 |
| Engine Brand | – | Honda |
| Model | – | GX690 |
| Drive type | Pull | Hydrostatic |
| Drive control | – | Joy stick |
| Carriage | Tires | Tracks |
| Size | 18×8.50-10 6P | 150x72x45 (Upgradable-230x72x45) |
| Travel Speed | – | 7.84 KM/h |
| Hydraulic Reservoir Capacity | – | 23.75 L |
| Number of pumps | – | 3 |
| Bucket control | Hydraulic AUX | Lever |
| Normal bucket capacity | 1 Yard(0.72 m) | 0.7 Yard(0.55 m) |
| Bucket heaped capacity | 1.2 Yard(0.93 m) | 0.9 Yard(0.66 m) |
| Bucket Liquid capacity | 0.7 Yard(0.52 m) | 0.5 Yard(0.38 m) |
| Bucket tip height (Lifting condition) | 87.5″ | 83.75″ |
| Ground clearance | 7.25″ | 7.37″ |
| Overall size (With bucket) | 41.5″ W x 79″ L x 48.5″ H | 35.8″ W x 86.6″ L x 55″ H |
| Shipping Weight | 1004 lbs | 2465 lbs |

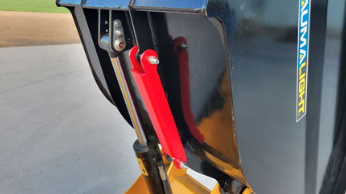

Bucket Safety Lock Bar
When you need to perform maintenance, the bucket safety lock bar allows you to raise the bucket and engage the locking bar. How you can safety stand under the raised bucket without risk of the bucket dropping.
Ground Clearance
The DW51QT has a ground clearance of 7.25 “.
Heavy Duty Bucket
The bucket is constructed with 1/4” thick steel plates.

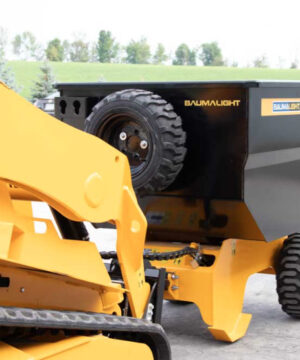

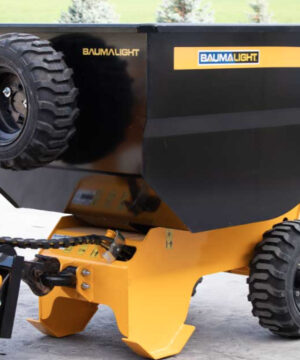

Spare Tire
18×8.50-10 6P SIZE spare tire.
Hose Hanger
It holds the hoses without operation.
Heavy Duty Cylinders
Large cylinders control the bucket lifting.
Powder Coated
Our powder coat finish is much tougher than conventional paint to stand up to the scratches and helps prevent rusting.
Armoured & Sleeved
Baumalight hoses are sleeved for the operator and hose protection. A pivoting arm is also standard with a greasable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.
Grease Pins On All Pivot Points
The Mini Dumper features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
Hardened Steel Bushings
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
| Weight | 1004 lbs |
|---|
