WLFX110RS
Wallenstein FX110RS Skidding Winch | CAT1/2 | 50-90 HP | 11000 lb Cap. | Remote | Synthetic Rope
$8,234.00
Weight: 796lbs

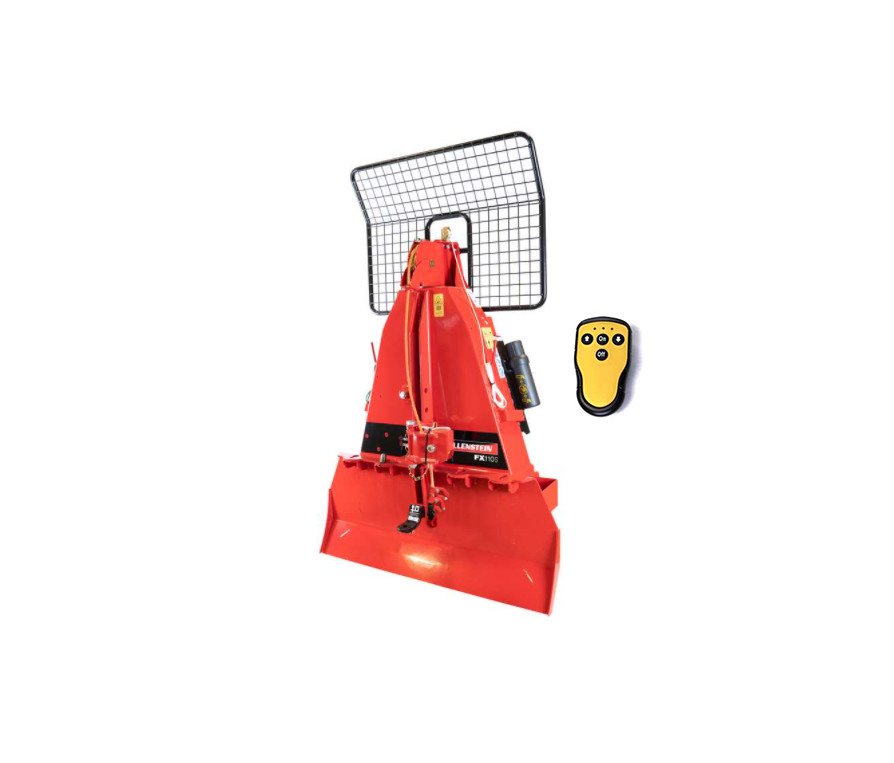

Wallenstein FX110RS Skidding Winch
- PTO Driven
- 11,000 lb Pulling Capacity
- Synthetic Rope
- Remote Controlled
11000 lbs pulling capacity, the FX110 PTO driven skidding winch with remote operation and synthetic rope is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.
| Pulling Capacity | 11000 lbs (4989 kg) |
| Engine HP Range | 50 – 90 |
| Required Hydraulic Flow | 1 – 2 gpm (4 – 8 lpm) |
| Winch Type | Mechanical, Dry Disc Clutch |
| Line Speed | 98 – 253 ft-min (30 – 77 m/min) |
| Cable Type | Synthetic Rope |
| Cable Length | 200′ (60 m) |
| Cable Diameter | 1/2″ (13 mm) |
| Choker Chains | 2 |
| PTO Input Speed | 540 rpm |
| PTO Height | 21″ (53 cm) |
| Total Weight | 796 lbs (361 kg) |
| Dimensions (LxWxH) | 28″ x 51″ x 79″ (71 cm x 130 cm x 201 cm) |
| Mounting System | Cat I & Cat II |
2 Choker Chains
Pull an additional two logs with the included steel choker chains.
2 Keyhole Sliders
Coupled with the included choker chains, pull an additional two logs.
Removable Clutch Assembly Easily service your winch with the removable clutch.
Shearbolt Protected PTO Drivetrain Included Move on from a power spike by simply replacing a single shear bolt.
Snatch Block Pulley System Adjust the pull angle for maximum stability in all pulling situations. Tow Bar Complete with keyhole slots to hook up choker chains for skidding logs out of the bush. Trailer Hitch Allows you to hook onto a trailer without detaching the winch. Factory Installed Remote Control Winch Kit Pull in your logs with the push of a button from up to 150 feet (45 m) away.
| Weight | 796 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
