WLFX140S
Wallenstein FX140S Skidding Winch | CAT II | 80-120 HP | 14000 lb Cap. | Synthetic Rope
$7,384.00
Weight: 898lbs

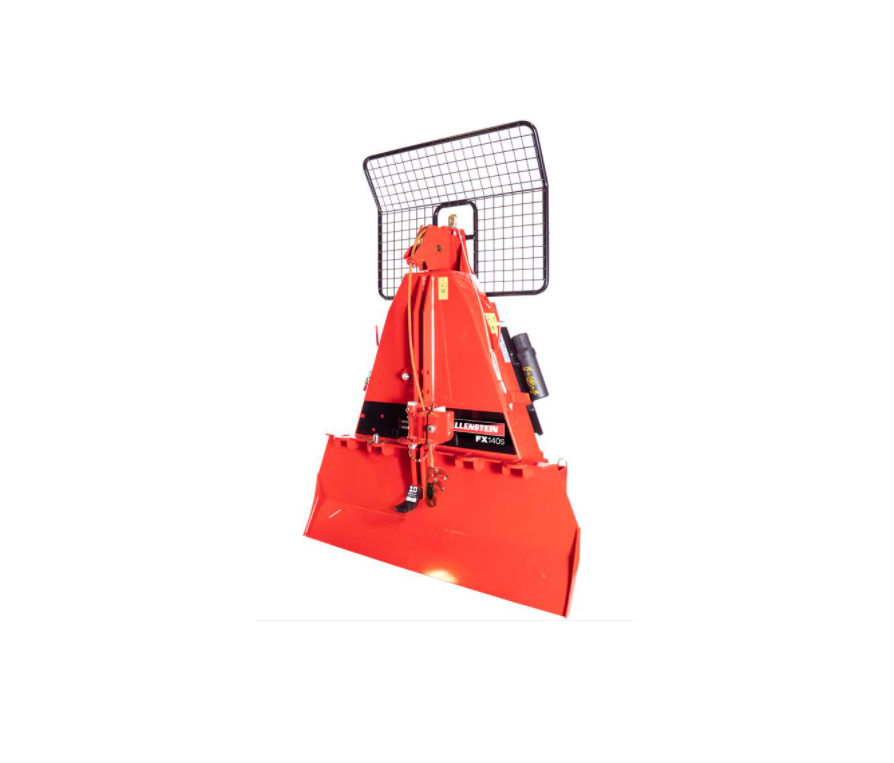

Wallenstein FX140S Skidding Winch
- PTO Driven
- 14,000 lb Pulling Capacity
- Synthetic Rope
- Manual Control Rope
14000 lbs pulling capacity, the FX140 PTO driven skidding winch with synthetic rope is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.
| Pulling Capacity | 14000 lbs (6350 kg) |
| Engine HP Range | 80 – 120 |
| Winch Type | Mechanical, Dry Disc Clutch |
| Line Speed | 98 – 246 ft-min (30 – 75 m/min) |
| Cable Type | Synthetic Rope |
| Cable Length | 200′ (60 m) |
| Cable Diameter | 1/2″ (13 mm) |
| Choker Chains | 2 |
| PTO Input Speed | 540 rpm |
| PTO Height | 22″ (56 cm) |
| Total Weight | 898 lbs (407 kg) |
| Dimensions (LxWxH) | 28″ x 59″ x 80″ (71 cm x 150 cm x 203 cm) |
| Mounting System | Cat II |
2 Choker Chains
Pull an additional two logs with the included steel choker chains.
2 Keyhole Sliders
Coupled with the included choker chains, pull an additional two logs.
Removable Clutch Assembly Easily service your winch with the removable clutch.
Rope Controlled Brake/Clutch System
Shearbolt Protected PTO Drivetrain Included Move on from a power spike by simply replacing a single shear bolt.
Snatch Block Pulley System Adjust the pull angle for maximum stability in all pulling situations. Tow Bar Complete with keyhole slots to hook up choker chains for skidding logs out of the bush. Trailer Hitch Allows you to hook onto a trailer without detaching the winch.
| Weight | 898 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
