WLFX40
Wallenstein FX40 Skidding Winch | CAT I | 12-30 HP | 4000 lbs Pulling Cap | Steel Cable
$3,709.00
Weight: 280lbs

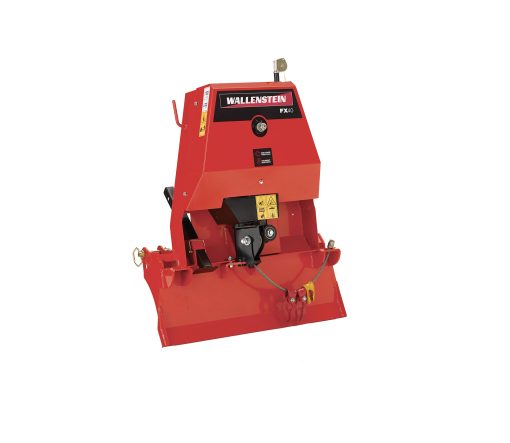

Wallenstein FX40 Skidding Winch
- PTO Driven
- 4,000 lb Pulling Capacity
- Steel Cable
- Manual Control Rope
4000 lbs pulling capacity, the FX40 PTO driven skidding winch is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.
| Pulling Capacity | 4000 lb (1814 kg) |
| Engine HP Range | 12 – 30 |
| Winch Type | Mechanical, Dry Disc Clutch |
| Line Speed | 103 – 290 ft/min (31 – 88 m/min) |
| Cable Type | Steel |
| Cable Length | 165′ (50 m) |
| Cable Diameter | 3/8″ (10 mm) |
| Choker Chains | 2 |
| PTO Input Speed | 540 rpm |
| PTO Height | 16″ (41 cm) |
| Total Weight | 280 lb (127 kg) |
| Dimensions (LxWxH) | 17″ x 36″ x 45″ (43 cm x 91 cm x 114 cm) |
| Mounting System | Cat I |
2 Choker Chains
Pull an additional two logs with the included steel choker chains.
2 Keyhole Sliders
Coupled with the included choker chains, pull an additional two logs.
Removable Clutch Assembly Easily service your winch with the removable clutch.
Rope Controlled Brake/Clutch System
Shearbolt Protected PTO Drivetrain Included Move on from a power spike by simply replacing a single shear bolt.
Snatch Block Pulley System Adjust the pull angle for maximum stability in all pulling situations. Tow Bar Complete with keyhole slots to hook up choker chains for skidding logs out of the bush.
| Weight | 280 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
