WLFX85S
Wallenstein FX85S Skidding Winch | CAT I | 30-55 HP | 8500 lbs Pulling Cap. | Synthetic Rope
$6,130.00
Weight: 470lbs

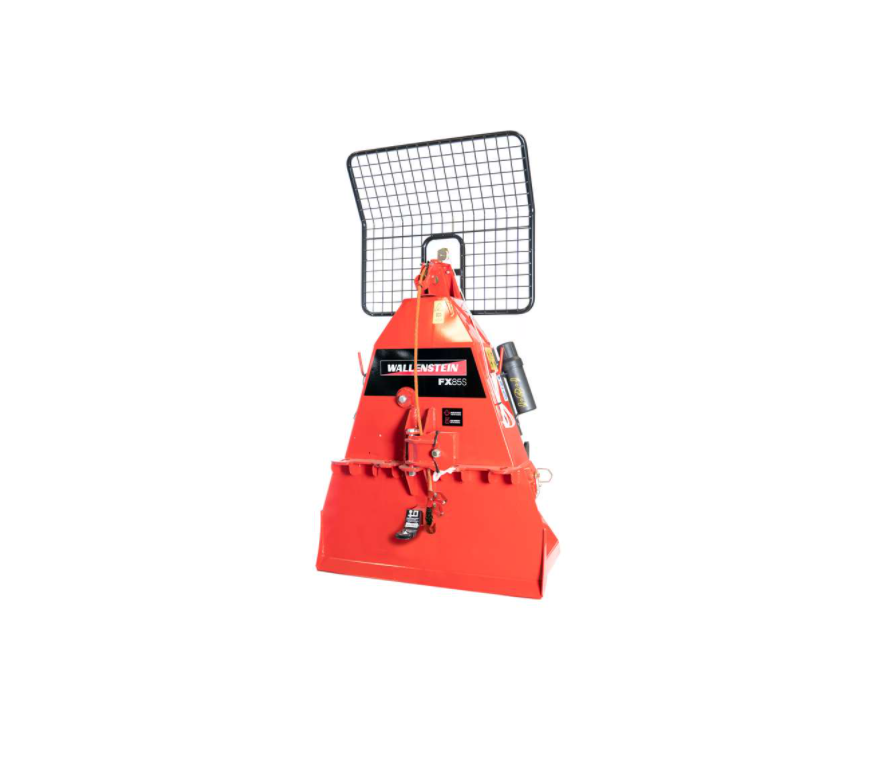

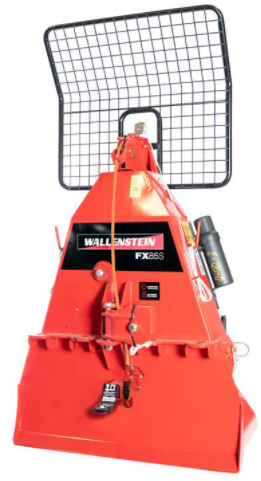

Wallenstein FX85S Skidding Winch
- PTO Driven
- 8,500 lb Pulling Capacity
- Synthetic Rope
- Manual Pull Rope
8500 lbs pulling capacity, the FX85 PTO driven skidding winch with synthetic rope is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.
| Pulling Capacity | 8500 lbs (3855 kg) |
| Engine HP Range | 30 – 55 |
| Winch Type | Mechanical, Dry Disc Clutch |
| Line Speed | 96 – 238 ft/min (29 – 72 m/min) |
| Cable Type | Synthetic Rope |
| Cable Length | 200′ (60 m) |
| Cable Diameter | 7/16″ (11 mm) |
| Choker Chains | 2 |
| PTO Input Speed | 540 rpm |
| PTO Height | 16″ (41 cm) |
| Total Weight | 470 lbs (213 kg) |
| Dimensions (LxWxH) | 27″ x 40″ x 76″ (69 cm x 102 cm x 193 cm) |
| Mounting System | Cat I |
2 Choker Chains
Pull an additional two logs with the included steel choker chains.
2 Keyhole Sliders
Coupled with the included choker chains, pull an additional two logs.
Removable Clutch Assembly Easily service your winch with the removable clutch.
Shearbolt Protected PTO Drivetrain Included Move on from a power spike by simply replacing a single shear bolt.
Snatch Block Pulley System Adjust the pull angle for maximum stability in all pulling situations. Tow Bar Complete with keyhole slots to hook up choker chains for skidding logs out of the bush. Trailer Hitch Allows you to hook onto a trailer without detaching the winch.
| Weight | 470 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
