WLGE605
Wallenstein GE605 6’4″ Backhoe | 15-35 HP | 2054 lbs Digging Force | 250 lbs Boom Lift
$7,100.00
Weight: 500lbs
Wallenstein GE605 Backhoes

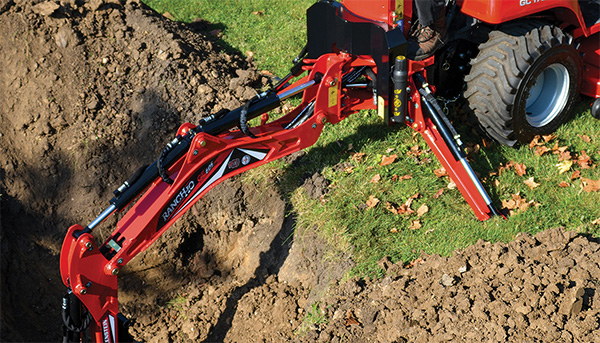

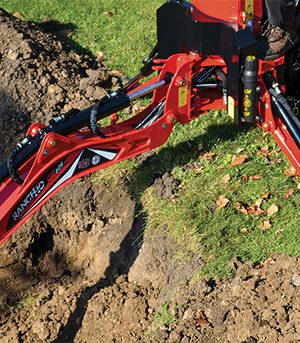

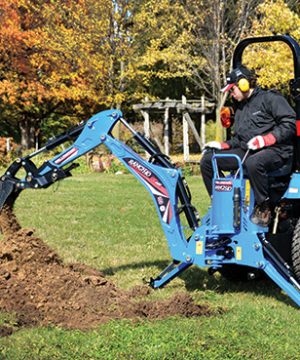

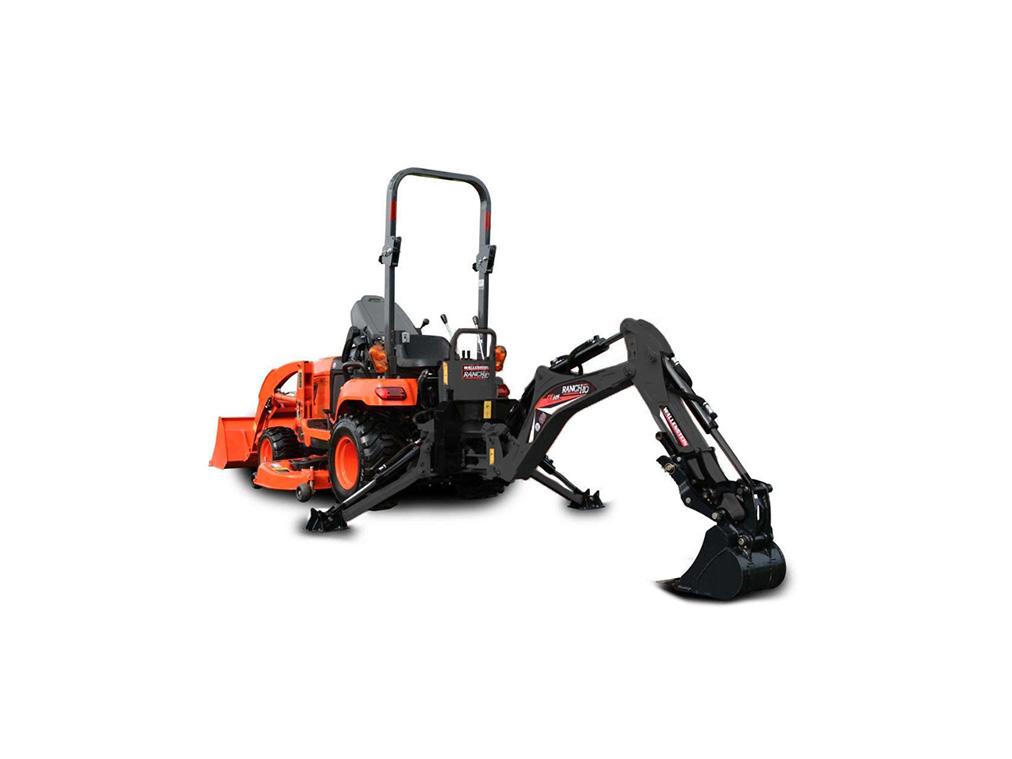

6′ 4″ digging depth, the GE605 backhoe can mount on your tractor to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.
| Digging Depth | 6′ 4″ (193 cm) |
| Engine HP Range (Tractor) | 15 – 35 |
| Required Hydraulic Flow | 4 – 12 gpm (15 – 45 lpm) |
| Stabilizer Width (Spread) | 72″ (183 cm) |
| Main Boom Cylinder Diameter | 2.5″ (64 mm) |
| Dipper Cylinder Diameter | 2.25″ (57 mm) |
| Bucket Cylinder Diameter | 2″ (51 mm) |
| Number of Swing Cylinders | 1 |
| Swing Cylinder Diameter | 2.5″ (64 mm) |
| Stabilizer Cylinder Diameter | 2″ (51 mm) |
| Reach from Swing Post | 100″ (254 cm) |
| Includes Flow Divider | No |
| Bucket Rotation | 180° |
| Swing Arc | 150° |
| SAE* Dipper Boom Digging Force | 1250 lbs (567 kg) |
| SAE* Bucket Digging Force | 2054 lbs (932 kg) |
| Boom Lift Capacity | 250 lbs (113 kg) |
| Ground Clearance | 8.5″ (22 cm) |
| Loading Height | 62″ (158 cm) |
| Overall Operating Height (Fully Raised) | 91″ (231 cm) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 500 lbs (227 kg) |
| Transport Dimensions (LxWxH) | 56″ x 41″ x 65″ (142 cm x 104 cm x 165 cm) |
| Operating Pressure | 1800 psi (12411 kPa) |
| Mounting System | Subframe |
Curved Boom
Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.
Greaseable Pins
Maintenance is easy with greasable pins on all pivot points.
Hydraulic Stabilizers
Easy to use hydraulic stabilizers help to prevent tipping.
Replaceable Teeth
Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.
Swing Cushioning
When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.
Operator’s Seat
Subframe Mount
Please Visit Wallenstein’s Site To Find Your Subframe Item Number For Your Specific Tractor. Please Provide The WLSF******** Subframe Mount Item Number For Your Tractor When Ordering.
Bucket (Select At Least 1)
| Weight | 500 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
