WLGX920XT
Wallenstein GX920XT 11’4″ Backhoe Base Unit | 45-120 HP | 580 lb Boom Lift | 3925 lbs. Digging Force
$13,700.00
Weight: 980lbs

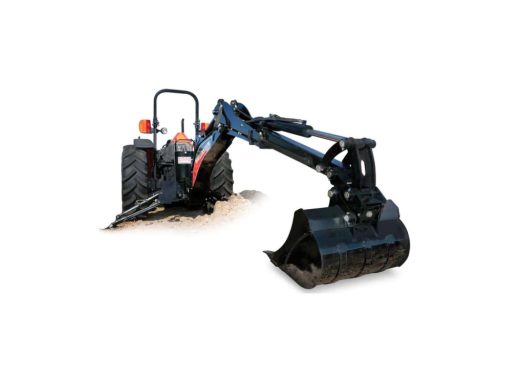

Wallenstein GX920XT Backhoes
11′ 4″ digging depth, the GX920XT backhoe can mount on your tractor or skidsteer to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.
| Digging Depth | 9′ 4″ (284 cm) |
| Engine HP Range (Tractor) | 60 – 120 |
| Engine HP Range (Skidsteer) | 60 – 120 |
| Digging Depth (Extended) | 11′ 4″ (345 cm) |
| Required Hydraulic Flow | 5 – 27 gpm (19 – 102 lpm) |
| Stabilizer Width (Spread) | 89″ (226 cm) |
| Main Boom Cylinder Diameter | 3″ (76 mm) |
| Dipper Cylinder Diameter | 2.5″ (64 mm) |
| Bucket Cylinder Diameter | 2.5″ (64 mm) |
| Extender Cylinder Diameter | 1.75″ (44 mm) |
| Number of Swing Cylinders | 2 |
| Swing Cylinder Diameter | 2.5″ (64 mm) |
| Stabilizer Cylinder Diameter | 3″ (76 mm) |
| Reach from Swing Post | 141″ (358 cm) |
| Reach From Swing Post (Extended) | 164″ (417 cm) |
| Includes Flow Divider | Yes |
| Bucket Rotation | 180° |
| Swing Arc | 180° |
| SAE* Dipper Boom Digging Force | 2200 lbs (998 kg) |
| SAE* Bucket Digging Force | 3925 lbs (1780 kg) |
| Boom Lift Capacity | 580 lbs (263 kg) |
| Ground Clearance | 10.5″ (27 cm) |
| Loading Height | 104″ (264 cm) |
| Overall Operating Height (Fully Raised) | 152″ (386 cm) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 980 LBS. |
| Transport Dimensions (LxWxH) | 81″ x 43″ x 92″ (206 cm x 109 cm x 234 cm) |
| Operating Pressure | 2250 psi (15513 kPa) |
| Mounting System | Subframe, Skidsteer Universal Plate, PT302 (Cat I), PT322 (Cat II) |
Curved Boom
Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.
Dual Swing Cylinders
Dual cylinders provide strong, consistent movement throughout the entire 180-degree range.
Greaseable Pins
Maintenance is easy with greasable pins on all pivot points.
Hardened Steel Bushings
To reduce wear, hardened steel bushings are installed on all the main pivot points.

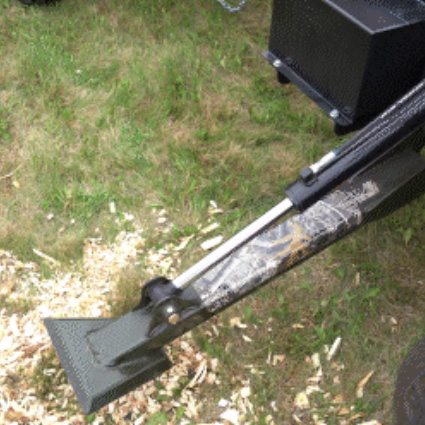

Hydraulic Stabilizers
Easy to use hydraulic stabilizers help to prevent tipping.

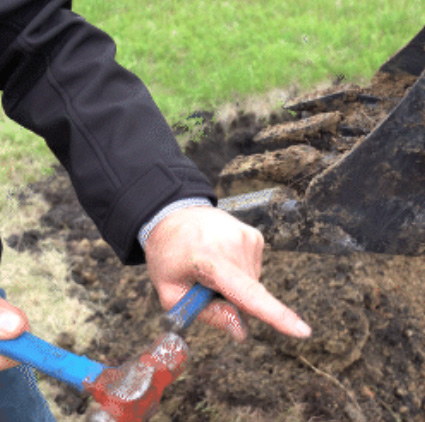

Replaceable Teeth
Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.

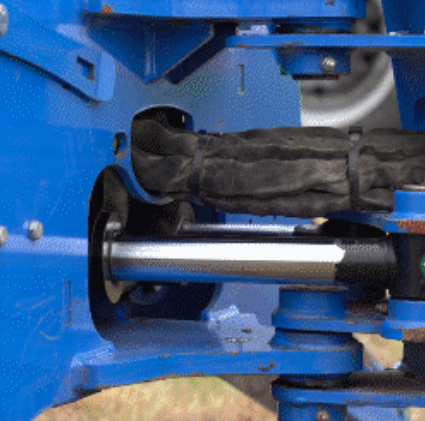

Swing Cushioning
When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.

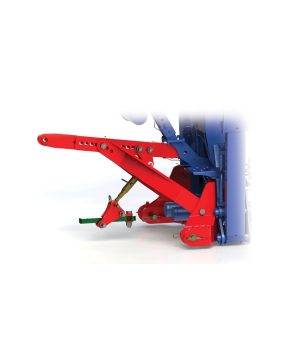

Mount
Please Visit Wallenstein’s Site To Find Your Subframe Item Number For Your Specific Tractor. Please Provide The WLSF******** Subframe Mount Item Number For Your Tractor When Ordering.

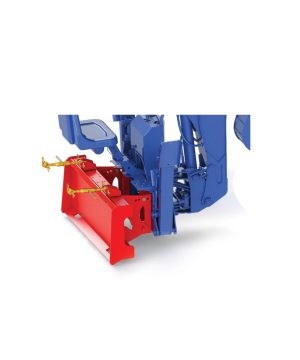

To Equip The Backhoe With Universal Skid Mounting Style, You Must Add BOTH The Universal Skid Mount & The Specific Tie Back Kit For Your Skid Steer.
Please Visit Wallenstein’s Site To Find Your Tie Back Kit Item Number For Your Specific Skid Steer. Please Provide The WLTB******** Tie Back Kit Item Number For Your Skid Steer When Ordering.
Bucket (Select At Least 1)
| Weight | 980 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
