WLISH918G
ISH918G Tree Shear | Grabber | 7000-18000 lb Skids | Horiz. | Up To 18″ Dia | 1 Blade | 20-70 GPM
$22,800.00
Weight: 2150lbs

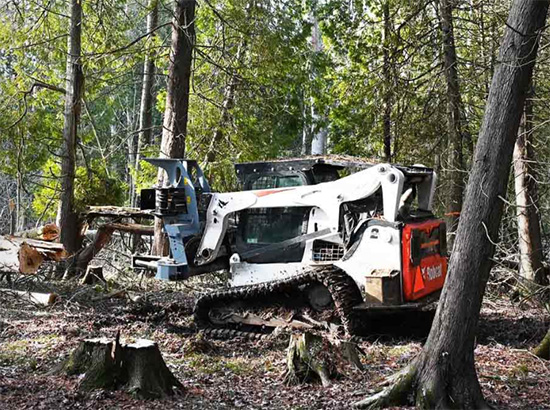

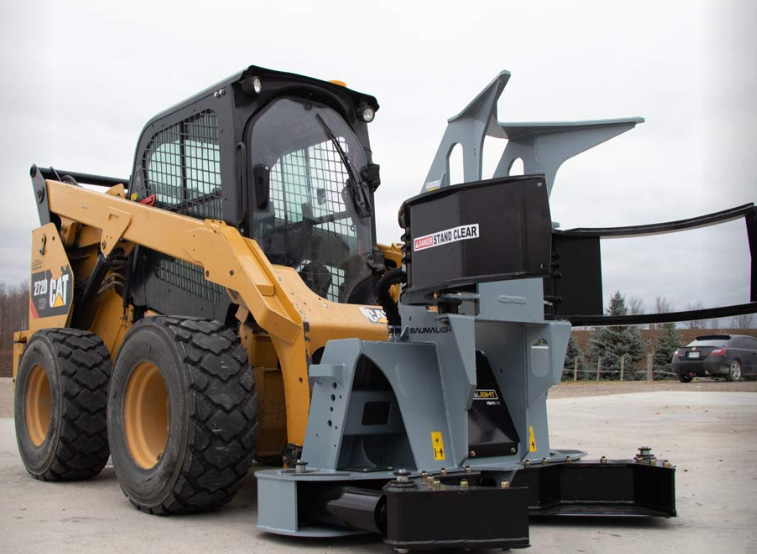

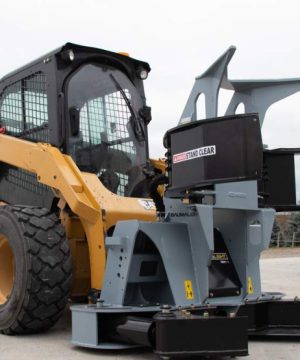

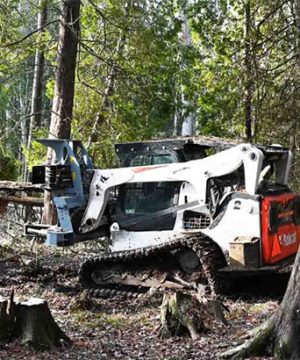

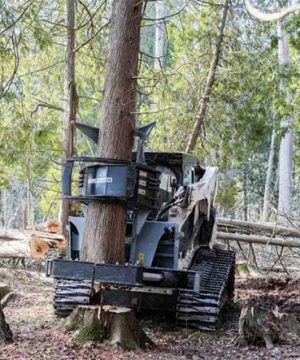

ISH918G Horizontal Skidsteer Tree Shear
The ISH918G horizontal tree shear for 7000 lb. to 18000 lb. class skidsteers will give you the ability to shear vertical trees and saplings up to 18 inch diameter. Equipped with an individually moving grabber arm and a fixed curved cradle bar, this tree shear allows you to securely move the sheared trees and limbs to a desired safe location.
| Model # | Carrier | Blade Angle |
Blade cylinder Bore size |
Weight Class |
Limb Size |
Grabber | GPM | Electrical AUX |
Unit Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| ISH510G | Skid Steer | Horizontal | 5” | 4,000–7,000 | 10 | Yes | 10–50 | Not required | 990 |
| ISH512G | Skid Steer | Horizontal | 5” | 5,000–8,000 | 12 | Yes | 15–60 | Not required | 995 |
| ISH712G | Skid Steer | Horizontal | 5” | 6,000–12,000 | 12 | Yes | 15–60 | Not required | 1540 |
| ISH918G | Skid Steer | Horizontal | 5” | 7,000–18,000 | 18 | Yes | 20–70 | Not required | 2150 |
| Model | WOOD TYPE | 2000 PSI | 2500 PSI | 2800 PSI | 3000 PSI | 3400 PSI | 4000 PSI |
| ISH510G | Hardwood | N/A | 4″ | 7″ | 8″ | 9″ | 10″ |
| Softwood | 4″ | 7″ | 8″ | 9″ | 10″ | 10″ | |
| ISH512G | Hardwood | N/A | 5″ | 9″ | 10″ | 11″ | 12″ |
| Softwood | 5″ | 9″ | 10″ | 11″ | 12″ | 12″ | |
| ISH712G | Hardwood | 8″ | 10″ | 11″ | 12″ | 12″ | 12″ |
| Softwood | 10″ | 11″ | 12″ | 12″ | 12″ | 12″ | |
| ISH918G | Hardwood | 11″ | 12″ | 13″ | 14″ | 15″ | 16″ |
| Softwood | 14″ | 15″ | 17″ | 18″ | 18″ | 18″ |
The ISH918G is made from tough, abrasion-resistant AR400 steel. This grade of steel alloy is strong enough to handle the labours of tree shearing.
GRABBER ARMS
The grabber arms have a robust design and are made with AR400 steel.
FAST ARM MOVEMENT WITH A STRONG PULL
With a special hydraulic valve, we momentarily send high volume flow to the grabber arm cylinder which have special linkage to give a very fast and very strong pull to grab the tree before it falls out of reach of the arms.
Heavy Cutting
Capable of cutting and clearing multiple varieties of softwoods, this robust tree shear is equally adept at tackling and taking down tough hardwood trees like oak, ash and maple.
Blade Adjusting Cam
Allows for easy adjustments to the blade positions to ensure proper alignment and position, ensuring a clean cut.
Grease Pins on All Pivot Points
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the unit’s joints over their lifetime.
Double Shielding Hoses
The connecting hoses are sleeved and wrapped in hose armour for double protection while a pivoting arm reduces slack and safeguards the hoses from pinching and strain.
Anti-Slip Step
Extra traction from anti-slip streps provides improved safety as well as ease of entry and exit from the cab.
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
| Weight | 2150 lbs |
|---|
