WLLSR724S
Baumalight LSR724S Grapple Saw | Univ Skid | 25-42 GPM | 6,000-10,000 lbs Skid Steers | 3″-24″ Logs
$33,470.00
Weight: 1650lbs

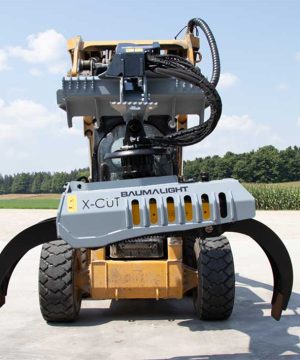

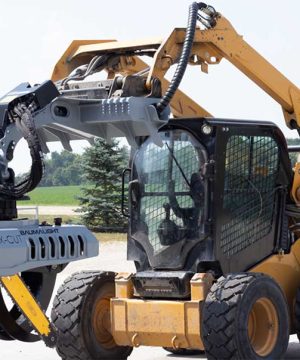

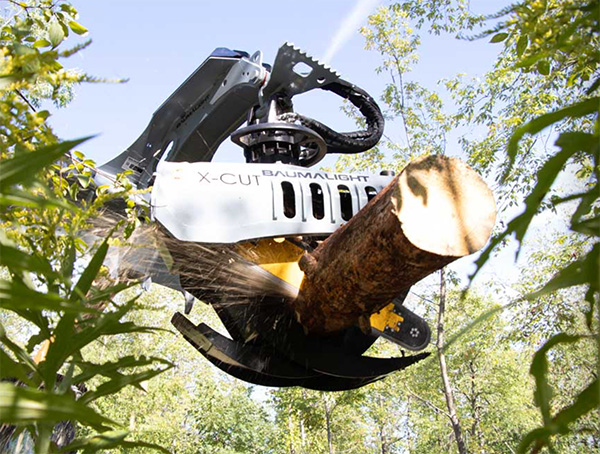

Baumalight LSR724S Grapple Saw

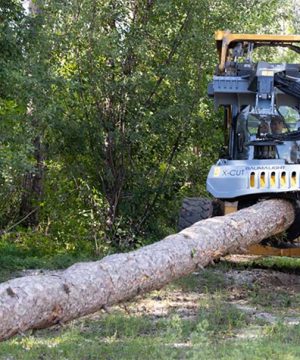

The Baumalight LSR724S is a grapple saw that clamps and cuts logs to length which can be a real time and labor saver. Designed for skid steers, this attachment is engineered with heavy-duty components and AR400 steel jaws.
The LSR724S features a powerful integrated saw blade, giving you both a firm grip and cutting capability without getting out of the skidsteer. Its full 360° rotating function enables maximum maneuverability, while the heavy-duty jaw operating cylinder provides the force needed for confident clamping. For enhanced protection and longevity, hydraulic hoses are armoured and sleeved, and key access points are designed for easy maintenance. The grapple also includes a built-in oil tank, ensuring efficient hydraulic fluid management and helping reduce downtime.
Every design element of the LSR724S is focused on ease of serviceability: from structural strength and abrasion protection to ease of upkeep and flexibility in operation. Whether lifting, gripping, cutting, or loading, this grapple is your go-to solution for professional work in rough terrain or large-scale timber environments.
| Model | LSR724S |
|---|---|
| Rotation | 360° |
| Skidsteer Weight Range | 6,000 lbs – 10,000 lbs |
| Oil flow | 25 – 42 GMP |
| Torque at 25MPA | 3,400 Nm (2,500 lbs ft) |
| Clamp force at 3,000 psi | 13,169 lbs |
| Clamp force at 4,000 psi | 17,559 lbs |
| PSI | 2,800 – 4,000 |
| Minimum Opening Diameter | 3″ |
| Maximum Opening | 72″ |
| Min/Max log holding size | 3″ – 24″ |
| Width | 59″ |
| Total Height | 69″ |
| Saw Bar Length | 28â |
| Weight | 1,650 lbs |

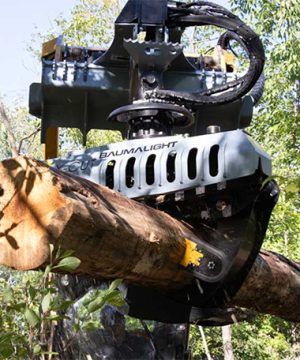

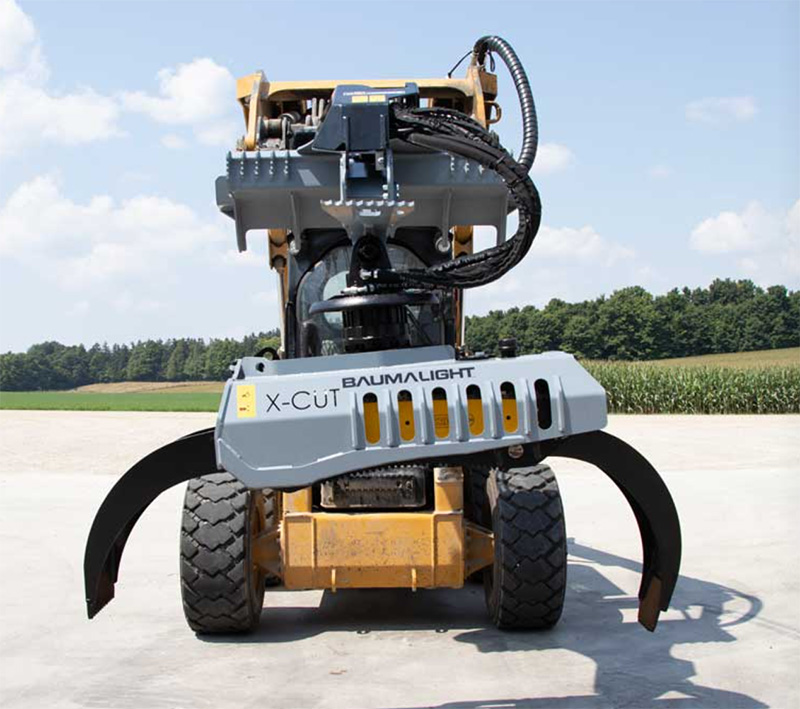

Serrated Grapple
The serrated grapple arms provide a firm hold on uneven and irregular loads. This ensures logs, brush, and debris are securely clamped, reducing slippage and boosting operator efficiency.

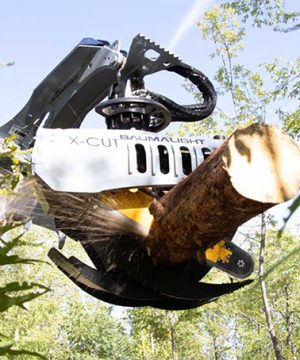

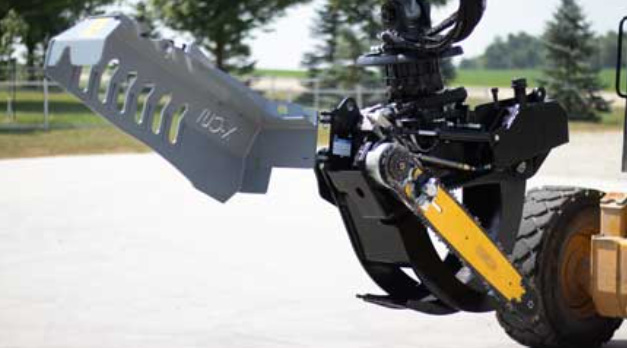

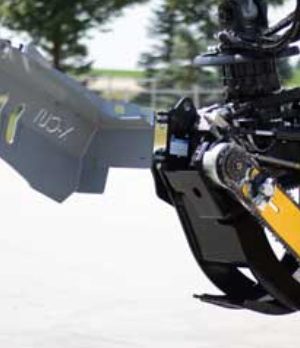

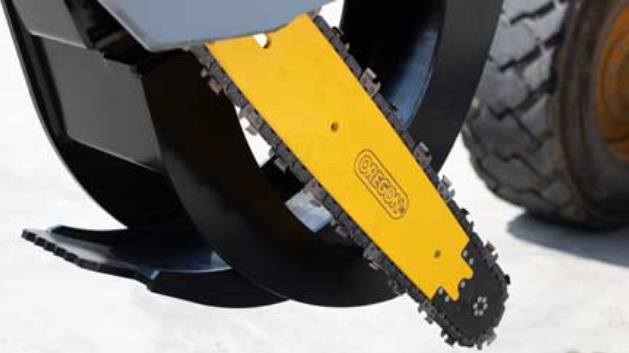

Integrated Saw Blade
A powerful built-in saw blade allows quick and efficient cutting of logs and branches. This reduces the need for extra handling, saving time during forestry and land clearing operations.

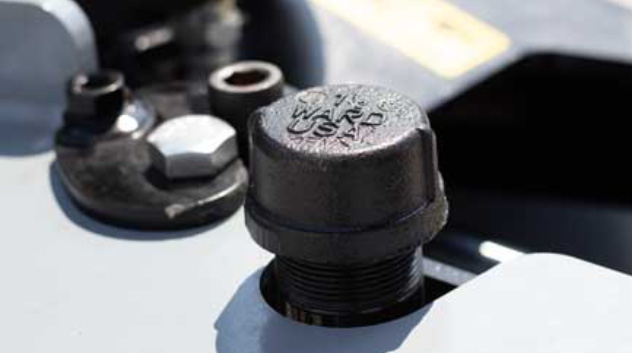

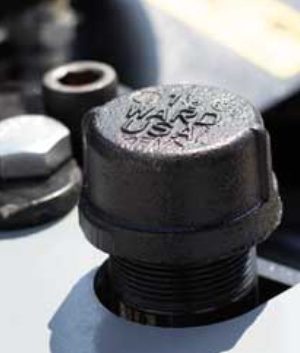

Built-In Oil Tank
The integrated oil tank delivers a reliable supply of lubrication for hydraulic systems. This design helps maintain consistent performance while reducing maintenance requirements.

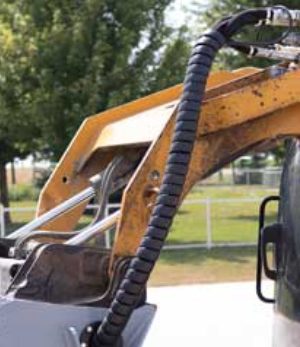

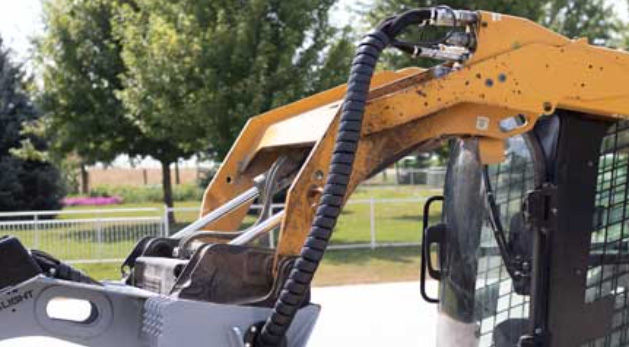

Armoured & Sleeved Hydraulic Hoses
All hydraulic hoses are fully protected with armour and sleeves for maximum durability. This prevents damage from debris and wear, extending service life even in rugged conditions.

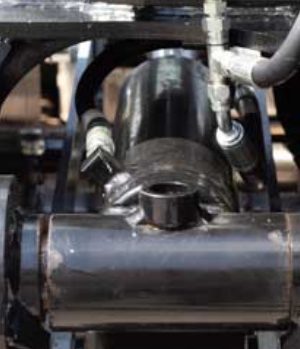

Heavy-Duty Jaw Operating Cylinder
The robust jaw cylinder provides strong clamping force for gripping large logs securely. Its heavy-duty design ensures long-lasting performance under tough working environments.

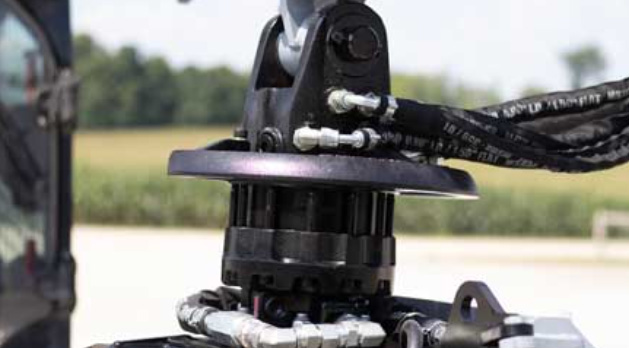

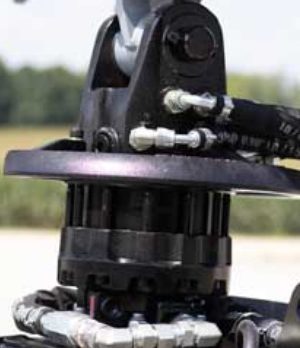

Full 360° Rotating Function
The grapple can rotate a full 360 degrees, giving the operator complete maneuverability. This feature makes positioning and handling logs faster and more efficient in tight spaces.

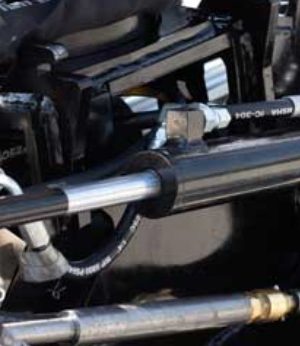

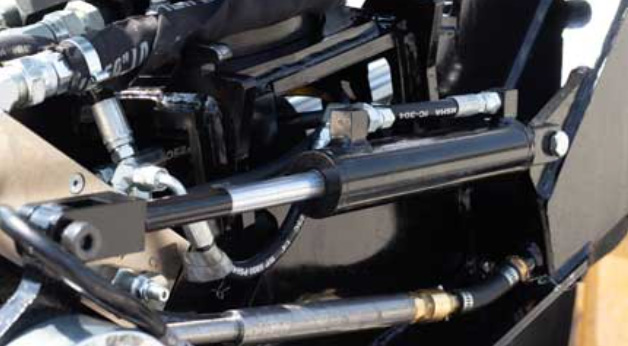

Hydraulic Cylinder for Saw Blade Actuation
A dedicated hydraulic cylinder powers the saw blade with precision and strength. This ensures reliable cutting performance while maintaining operator control.
Durable Powder-Coated Finish
A premium powder-coated finish protects against rust, chips, and harsh weather. This durable coating keeps the grapple looking and performing like new over time.
AR400 Steel Jaws & Main Frame
Constructed from AR400 high-strength steel, the jaws and frame deliver maximum toughness. This ensures long wear life and resistance to bending or breaking in heavy-duty use.
Easy Access for Saw Blade Maintenance
Engineered with serviceability in mind, the grapple allows quick access to the saw blade. This reduces downtime and makes routine maintenance simple for operators.
Equipped with Bent Axis Piston Motor (to be confirmed)
A powerful bent axis piston motor (pending confirmation) is designed to deliver high torque and efficiency. This ensures smooth, dependable performance for demanding forestry applications.
Grease Pins on all Pivot Points
The Grapple Saw features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
Hardened Steel Bushings
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
What Is A Case Drain Line ?
On most skidsteer and excavator Hydraulic systems, Hydraulic motors and pumps require a case drain line. Sometimes referred to as a third line, the case drain line will relieve any excess pressure and drain it back to your return line, then into the reservoir. Without a properly installed case drain, that extra pressure could blow a seal or damage your hydraulic line. For higher flow motors or on piston and gear motors, a case drain line is always required. Although, no matter the size of your motor, a case drain is always a good idea as it will relieve the amount of pressure on your shaft seal, helping to prolong its life. A case drain line can also increase the efficiency of your hydraulic system as it will lower the back pressure on the tank line.
Since most machines have a unique style of coupler, BaumaLight does not include a coupler on our case drain line, although they are available. If your skidsteer is not equipped with a case drain, then it can be field installed.
How Important Is A Case Drain Line ?
If we say having a case drain is critical and you operate without one, you will blow out your shaft seal. Be sure to check the motor sizing charts on our website.
Exception If You Have A Hammer Valve
There is one exception in the need for a case drain on gear motors and that is if you excavator is equipped with a hammer valve, this is a larger free flow line back to tank.
Identifying Your Case Drain Line
The following galleries show a highlighted case drain line on multiple skidsteer and excavator models.
*The Unit Comes With Baumalightâs Auxiliary Electrical Connection. When Ordering Unit, Please Note What Model Of Skid Steer It Is Going On & The Pin Connection. Baumalight Will Equip The Unit With Your Skid Steerâs Specific Auxiliary Connection Prior To Shipment. There is no optional control box & the carrier must have electric aux with associated joystick controls.
*Do You Have A Newer Bobcat Skid Steer With A Specific Bobcat 7-Pin Connector?
- To Run This Unit With Your Skid Steer, You Will Either Have To Add The Control Box Kit, Add The Bobcat 7-Pin CANBUS Plug/Circuit Board Kit, Or Contact Your Bobcat Dealer For A 7-Pin To 14-Pin Adapter.
Hydraulic Couplers
| Fitting Size | Hose Description | Qty |
| 3/4 JIC FM | Pressure & Return | 2 |
| 1/2 JIC FM | Case Drain | 1 |
| Weight | 1650 lbs |
|---|
