WLLXG320R

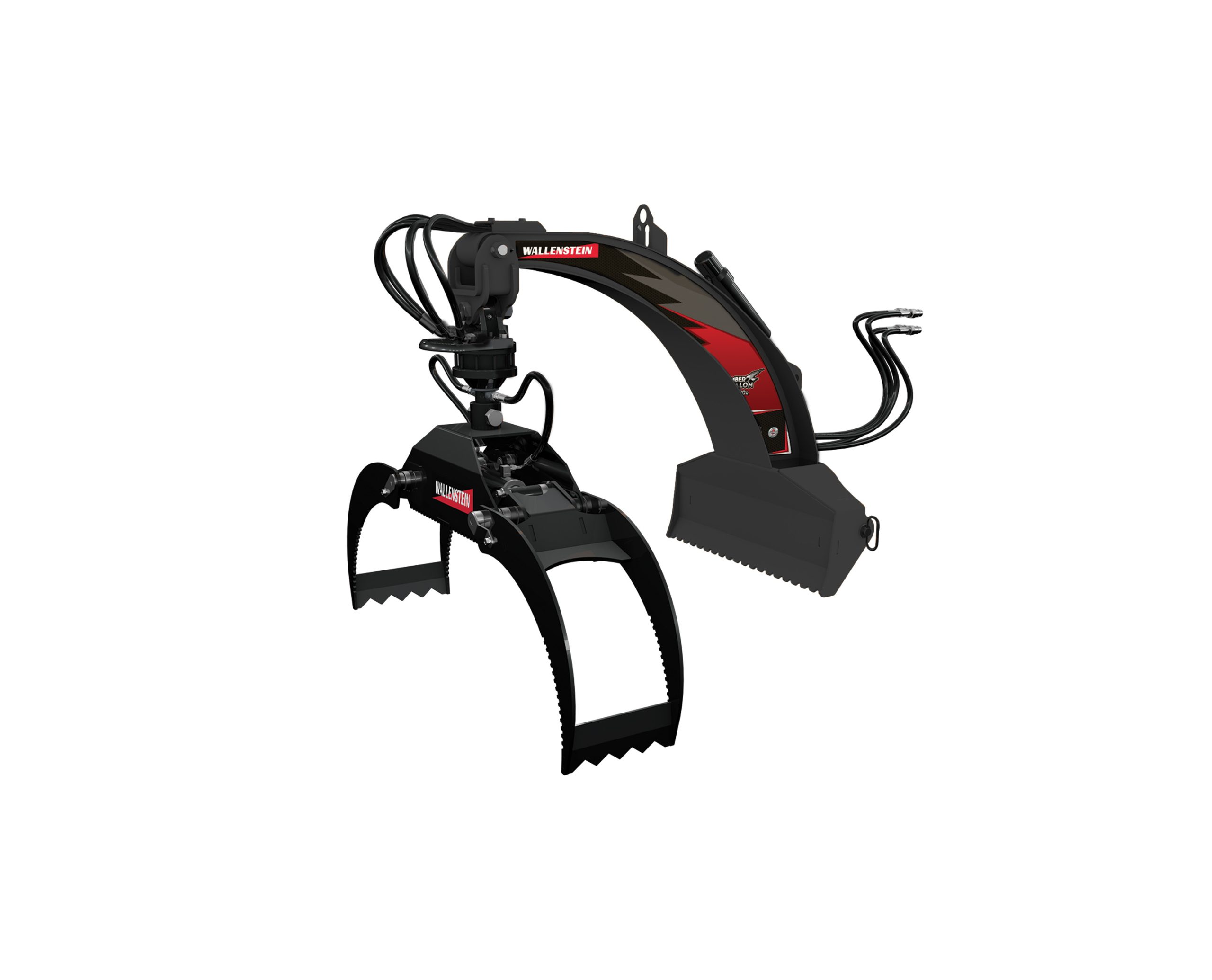

Wallenstein LXG320R Rotating Log Grapple | CAT I | Lift Cap. 3000 lbs | 25-65 HP | Opens To 48″
$5,680.00
Weight: 353lbs
Wallenstein LXG320R Log Grapples
- CAT 1 3PT
- 3,000 lbs Lift Capacity
- 48″ Grapple Opening
- 360 Degree Hydraulic Grapple Rotation
48″ opening, the LXG320R 3-point hitch mount, hydraulic log grapple picks up logs in any position and moves them exactly where you want with the 360 hydraulic rotator. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.
| Lift Capacity | 3000 lbs (1360 kg) |
| Engine HP Range | 25 – 65 |
| Recommended Hydraulic Flow | 5 gpm (19 lpm) |
| Grapple Opening | 3″ – 48″ (8 cm – 122 cm) |
| Grapple Rotation | 360° |
| Clamp Force | 9400 lbs (4264 kg) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 353 lbs (160 kg) |
| Dimensions (LxWxH) | 51″ x 52″ x 46″ (130 cm x 132 cm x 117 cm) |
| Mounting System | Cat I |
Bypass Grapples
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
360° Hydraulic Rotation
360° Hydraulic Rotation
Pick up logs in any position and orient them exactly where you want.
| Weight | 353 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
