WLLXG330RP
Wallenstein LXG330RP Rot.Log Grapple | CAT 2/3 | Boom | Winch | Lift 4500 lb | 55-120 HP | Opens 72″
$17,750.00
Weight: 1229lbs
Wallenstein LXG330RP Log Grapples
- CAT II & III
- 4,500 lbs Lift Capacity
- 72″ Grapple Opening
- 360 Degree Hydraulic Rotation

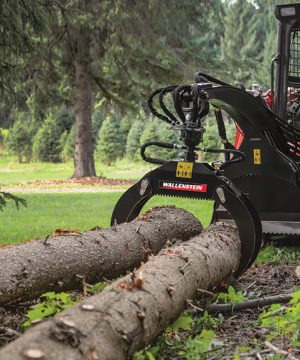

72″ opening, the LXG330RP 3-point hitch mount, hydraulic log grapple picks up logs in any position and moves them exactly where you want with the 360 hydraulic rotator. Add the warn winch, extendable boom, and push bar, and this professional series log grapple is ready to take on the jobs for the serious woodlot, rural property and logging contractors.
| Lift Capacity | 4500 lbs (2041 kg) |
| Engine HP Range | 55 – 120 |
| Recommended Hydraulic Flow | 10 gpm (38 lpm) |
| Grapple Opening | 3″ – 72″ (8 cm – 182 cm) |
| Grapple Rotation | 360° |
| Clamp Force | 21000 lbs (9525 kg) |
| Extendable Boom | 24″ (61 cm) |
| Push Bar Width | 19″ (48 cm) |
| Winch Pulling Capacity | 9000 lbs (4082 kg) |
| Winch Rope Length | 100′ (30 m) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 1229 lbs (558 kg) |
| Dimensions (LxWxH) | 68″ x 76″ x 70″ (173 cm x 193 cm x 178 cm) |
| Mounting System | Cat II & III |
360° Hydraulic Rotation
Pick up logs in any position and orient them exactly where you want.
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
Extendible Boom
Gain additional reach capacity by extending the boom.
Hydraulic Warn Winch
Plenty of winching power at your disposal to help retrieve stubborn logs.
Push Bar
Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.
| Weight | 1229 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
