WLLXG420R
Wallenstein LXG420R Rot. Log Grapple | Universal Skid | 3000 lb Lift | 25-65 HP | 5 GPM | Opens 48″
$6,920.00
Weight: 588lbs

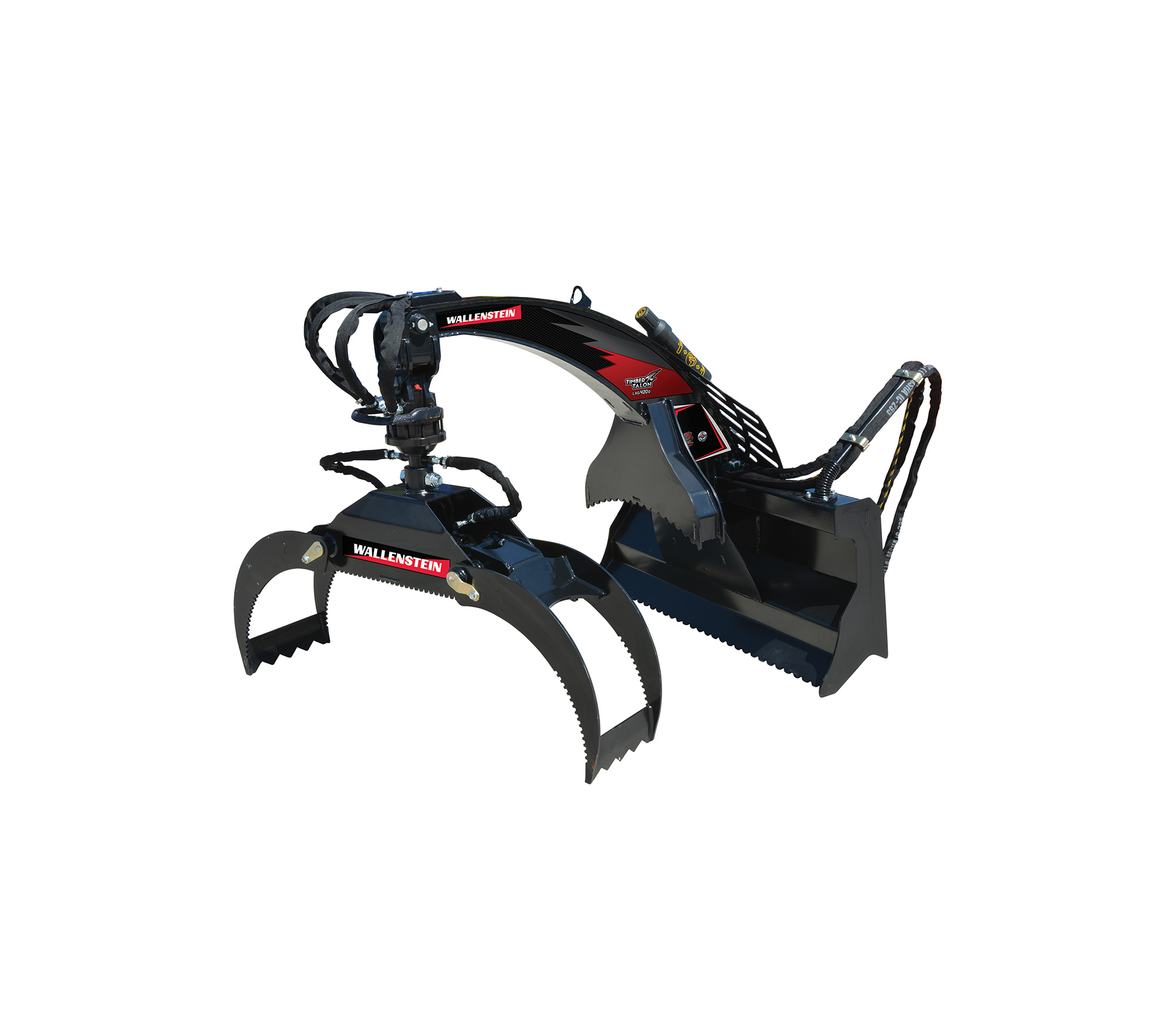

Wallenstein LXG420R Log Grapples
- Universal Skid Mount
- 3,000 lbs Lift Capacity
- 48″ Grapple Opening
- 360 Degree Hydraulic Rotation

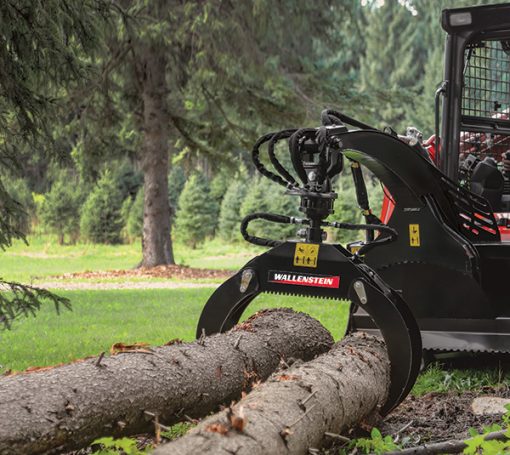

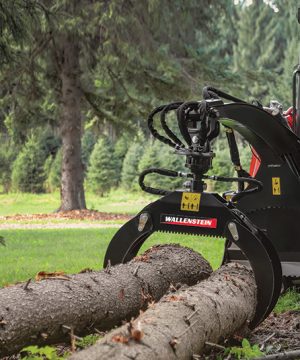

48″ opening, the LXG320R skidsteer, hydraulic log grapple picks up logs in any position and moves them exactly where you want with the 360 hydraulic rotator. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.
| Lift Capacity | 3000 lbs (1360 kg) |
| Engine HP Range | 30 – 70 |
| Recommended Hydraulic Flow | 5 gpm (19 lpm) |
| Grapple Opening | 3″ – 48″ (8 cm – 122 cm) |
| Grapple Rotation | 360° |
| Clamp Force | 9400 lbs (4264 kg) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 588 lbs (267 kg) |
| Dimensions (LxWxH) | 51″ x 52″ x 47″ (130 cm x 132 cm x 120 cm) |
| Mounting System | Universal Skidsteer Quick Attach Plate |
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
360° Hydraulic Rotation Pick up logs in any position and orient them exactly where you want.
| Weight | 588 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
