WLLXG420S
Wallenstein LXG420S Log Grapple | Universal Skid | 3000 lb Lift | 25-65 HP | 5 GPM Req | Opens 48″
$5,770.00
Weight: 560lbs

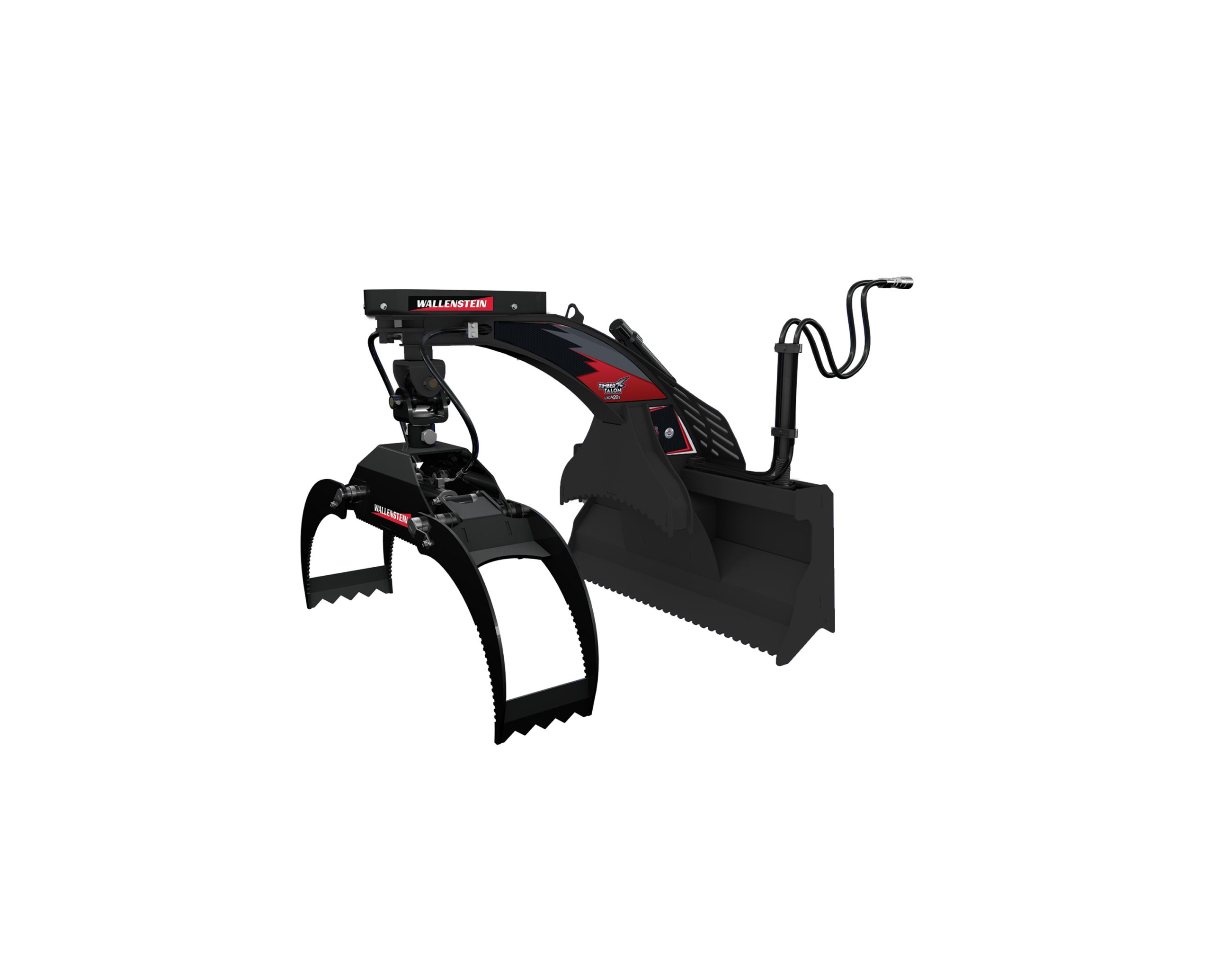

Wallenstein LXG420S Log Grapples
- Universal Skid Mount
- 3,000 lbs Lift Capacity
- 48″ Grapple Opening
- 180 Degree Spring Return Rotation
48″ opening, the LXG420S skidsteer, spring-centered log grapple twists when turning corners but stays straight when grabbing logs. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.
| Lift Capacity | 3000 lbs (1360 kg) |
| Engine HP Range | 25 – 65 |
| Recommended Hydraulic Flow | 5 gpm (19 lpm) |
| Grapple Opening | 3″ – 48″ (8 cm – 122 cm) |
| Grapple Rotation | 180° |
| Clamp Force | 9400 lbs (4264 kg) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 560 lbs (254 kg) |
| Dimensions (LxWxH) | 51″ x 52″ x 44″ (130 cm x 132 cm x 112 cm) |
| Mounting System | Universal Skidsteer Quick Attach Plate |
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
Spring Centered Grapple With Locking Positions The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.
| Weight | 560 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
