WLLXG430R
Wallenstein LXG430R Rot. Log Grapple | Universal Skid | 4500 lb Lift | 60-100 HP | 5 GPM | Opens 72″
$10,920.00
Weight: 1124lbs

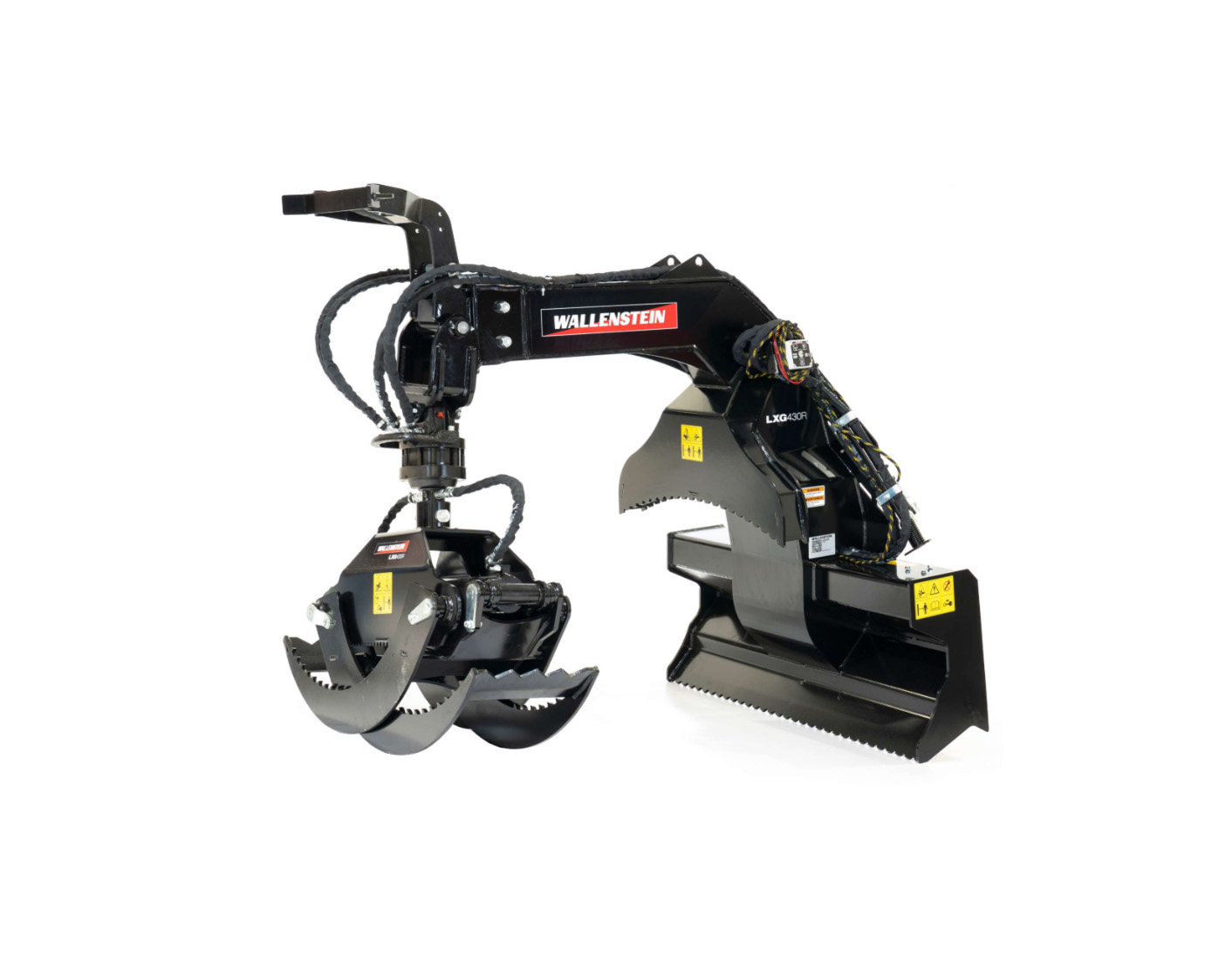

Wallenstein LXG430R Log Grapples
- Universal Skid Mount
- 4,500 lbs Lift Capacity
- 72″ Grapple Opening
- 360 Degree Hydraulic Rotation
72″ opening, the LXG330R skidsteer, hydraulic log grapple picks up logs in any position and moves them exactly where you want with the 360 hydraulic rotator. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.
| Lift Capacity | 4500 lbs (2041 kg) |
| Engine HP Range | 60 – 100 |
| Recommended Hydraulic Flow | 5 gpm (19 lpm) |
| Grapple Opening | 3″ – 72″ (8 cm – 182 cm) |
| Grapple Rotation | 360° |
| Clamp Force | 21000 lbs (9525 kg) |
| Push Bar Width | 19″ (48 cm) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 1124 lbs (510 kg) |
| Dimensions (LxWxH) | 67″ x 76″ x 67″ (171 cm x 193 cm x 171 cm) |
| Mounting System | Universal Skidsteer Quick Attach Plate |
Bypass Grapples
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
360° Hydraulic Rotation Pick up logs in any position and orient them exactly where you want. Push Bar Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.
| Weight | 1124 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
