WLLXG430RP
Wallenstein LXG430RP Rot. Log Grapple | SS | Boom | Winch | 4500 lb | 60-100 HP | 10 GPM | Open 72″
$18,134.00
Weight: 1444lbs

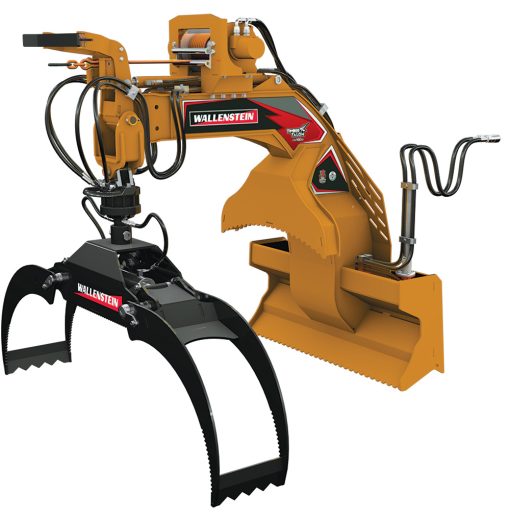

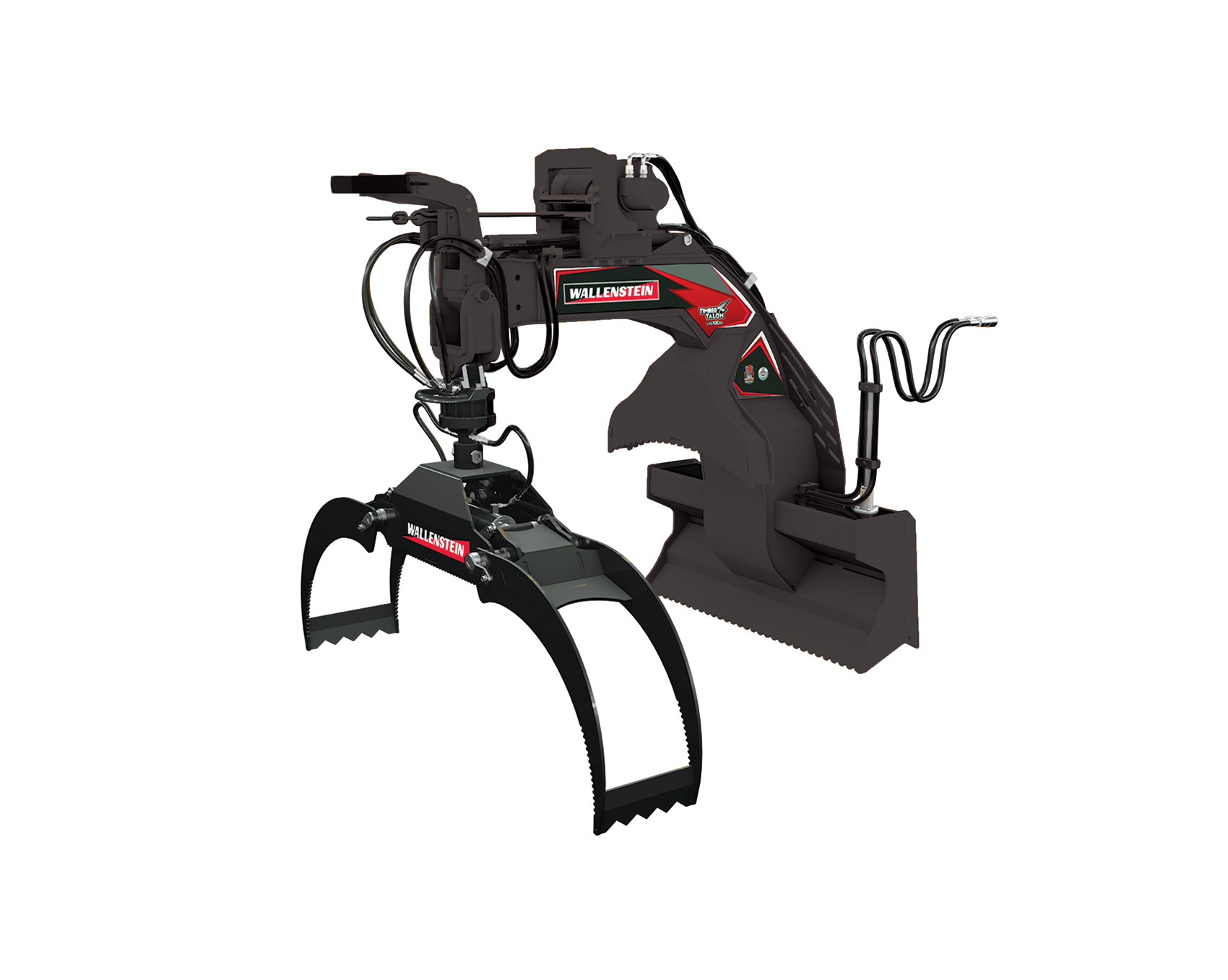

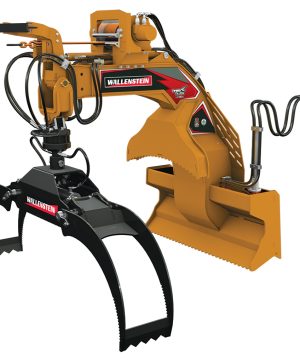

Wallenstein LXG430RP Log Grapples
- Universal Skid Mount
- 4,500 lbs Lift CapacityÂ
- 72″ Grapple Opening
- 360 Degree Hydraulic Rotation
72″ opening, the LXG330RP skidsteer, hydraulic log grapple picks up logs in any position and moves them exactly where you want with the 360 hydraulic rotator. Add the warn winch, extendable boom, and push bar, and this professional series log grapple is ready to take on the jobs for the serious woodlot, rural property and logging contractors.
| Lift Capacity | 4500 lbs (2041 kg) |
| Engine HP Range | 70 – 100 |
| Recommended Hydraulic Flow | 10 gpm (38 lpm) |
| Grapple Opening | 3″ – 72″ (8 cm – 182 cm) |
| Grapple Rotation | 360° |
| Clamp Force | 21000 lbs (9525 kg) |
| Extendable Boom | 24″ (61 cm) |
| Push Bar Width | 19″ (48 cm) |
| Winch Pulling Capacity | 9000 lbs (4082 kg) |
| Winch Rope Length | 100′ (30 m) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 1444 lbs (655 kg) |
| Dimensions (LxWxH) | 67″ x 76″ x 70″ (171 cm x 193 cm x 178 cm) |
| Mounting System | Universal Skidsteer Quick Attach Plate |
Bypass Grapples
Grapple tines interlink as tight as 3â (7.5 cm), ensuring easy handling of smaller logs and branches.
Cantilever Cradle
Leverage and secure your load with the serrated cradle when lifting logs in-line.
360° Hydraulic Rotation Pick up logs in any position and orient them exactly where you want. Push Bar Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer. Extendible Boom Gain additional reach capacity by extending the boom. Hydraulic Warn Winch Plenty of winching power at your disposal to help retrieve stubborn logs.
| Weight | 1444 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
