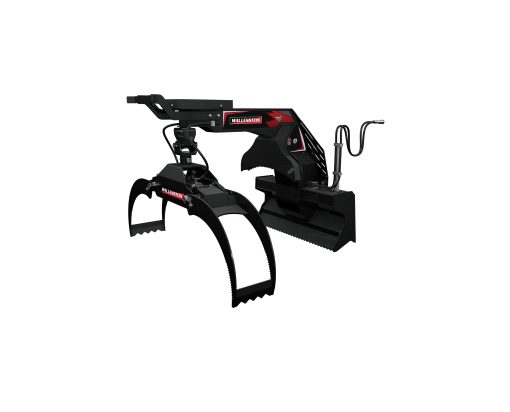

LXG430S Log Grapple | Universal Skid | Red | Lift Cap. 4500 lbs | 60-100 HP | 5 GPM Req | Opens To 72″
Log Grapples Stocked In Red, Additional Colors Available Upon Special Request.
When you need to load, transport and stack logs smoothly and quickly at the sawmill, look no further than Wallenstein’s Skidsteer log grapples. Mounted directly to your skidsteer, these heavy-duty grapples give you total control from inside the cab to pick up and move logs with incredible agility.
|Lift Capacity:||4500 lbs (2041 kg)|
|Engine HP Range:||60 – 100|
|Required Hydraulic Flow:||5 gpm (19 lpm)|
|Grapple Opening:||3″ – 72″ (8 cm – 182 cm)|
|Clamp Force:||21000 lbs (9525 kg)|
|Push Bar Width:||19″ (48 cm)|
|Rotator/Pivot Rating:||9000 lbs (4082 kg)|
|Total Weight:||1050 lbs (476 kg)|
|Dimensions (LxWxH):||69″ x 76″ x 53″ (176 cm x 193 cm x 135 cm)|
|Mounting System:||Universal Skidsteer Quick Attach Plate|
Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.
Leverage and secure your load with the serrated cradle when lifting logs in-line.
Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.
The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.
PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB ATWOOD, KS
