WLLXT95
LXT95 Off Road Log Trailer | Self-Contained | Load Cap 5000lbs | Lift Cap 800 lbs | 30″ Grapple Open
$22,490.00
Weight: 1650lbs

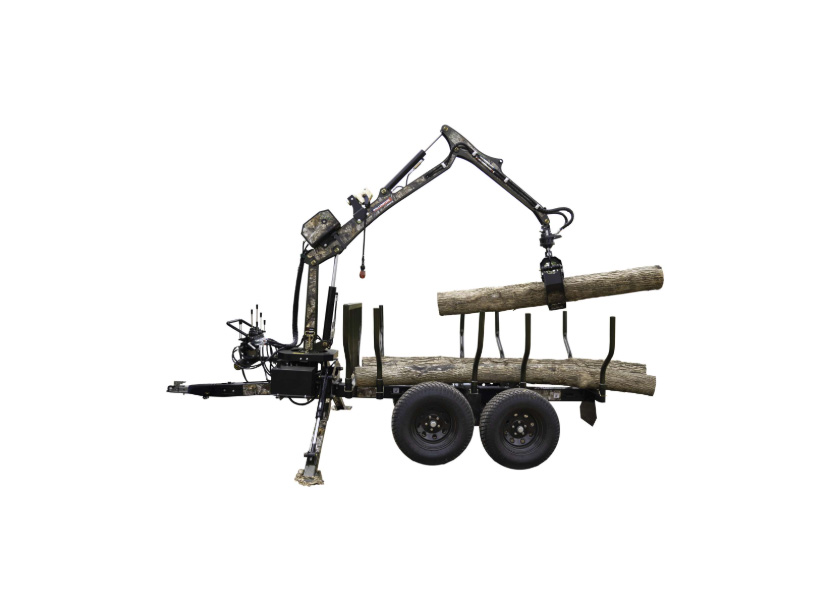

Wallenstein LXT95 Log Loading Trailer
- 8′ Bed Length
- 800 lb Lift Capacity
- 9’6″ Boom Reach
- 5,000 lb Load Capacity
5000 lb load capacity, 800 lb lift capacity, the LXT95 log loader trailer is the ultimate equipment for larger all terrain vehicles. Add an expaneded metal flatbed and a dump box to maximize the versatility.
| Load Capacity | 5000 lbs (2268kg) |
| Lift Capacity | 800 lbs (363 kg) |
| Engine | Vanguard® 6.5 hp (203 cc) |
| Grapple Opening | 3″ – 30″ (8 cm – 76 cm) |
| Grapple Rotation | 360° |
| Boom Rotation | 270° |
| Trailer Bed Length | 96″ (244 cm) |
| Sliding Axle | Hydraulic |
| Horizontal Reach | 9′ 6″ (290 cm) |
| Vertical Reach (Ground to Closed Grapple) | 12′ 11″ (394 cm) |
| Stabilizer Width (Spread) | 7′ 5″ (226 cm) |
| Main Boom Cylinder Diameter | 2.5″ (6 cm) |
| Dipper Cylinder Diameter | 2.5″ (6 cm) |
| Stabilizer Cylinder Diameter | 2″ (5 cm) |
| Ground Clearance | 14″ (36 cm) |
| Tires | 27 x 10.5 – 15 |
| Hitch | 2″ Ball |
| Brakes | Surge |
| Tongue Weight (Trailer Empty with Log Loader) | 200 lbs – 465 lbs (91 kg – 211 kg) |
| Tongue Weight (Trailer Empty with Log Loader & Power Pack) | 250 lbs – 515 lbs (114 kg – 234 kg) |
| Trailer Weight (Empty) | 1650 lbs (748 kg) |
| Dimensions (LxWxH) | 161″ x 64″ x 58″ (409 cm x 163 cm x 147 cm) |
270° Boom Swing Range
Gives you full access to both sides of the trailer while providing an operator safety zone.
360° Hydraulic Rotation
Pick up logs in any position and orient them exactly where you want.
5 Stick Control With Swivel
Enables operation of the boom from either side of the trailer.
Hydraulic Stabilizers
Easy to use hydraulic stabilizers help to prevent tipping.
Self Centering Bunk Posts
If bumped, the log posts naturally return to their proper position.
Surge Brakes
The hydraulic brakes automatically engage if the trailer begins to surge forward, such as traveling downhill or slowing.
Walking Beam Axle
Smoothly travel over uneven ground.
| Weight | 1650 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
