WLSWA550-D510

PROTECTIVE POWDER COAT FINISH

Heavy duty construction and a durable powder coated finish.

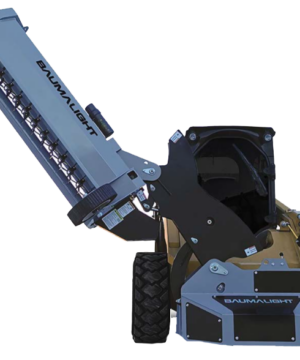

CURVED BOOM

Baumalight signature curved boom allows for extra clearance when you need to get over obstacles.

AUX ELECTRICAL CONNECTION FOR IN CAB CONTROL

For simple in cab control, the DSA530 is available with Baumalight’s Auxiliary Electrical Connection. This connection gives you simple quick connections and access to all the attachments functions using your machine’s own controls.

BENT AXIS PISTON MOTOR

Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

FOLDS FOR TRAVEL

The boom is compact enough for travel on tighter paths and trailering.

ANTI-SLIP MAT FOR EASY ACCESS TO CAB

For ease of entry and exit from the cab an anti-slip strip gives sure footing.

ARMOURED AND SLEEVED HOSES

All hoses are sleeved for operator and hose protection.

ADJUSTABLE CUT LENGTH

Front and rear adjustable mounting points allow you to control how close you cut.

FLOATING DECK ROLLER

Keeping things level is a heavy duty steel roller.

GREASEABLE PINS

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

HARDENED STEEL BUSHING

Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.

HEAVY DUTY CYLINDERS

Large cylinders control the arm for quick flow so you’re spending less time adjusting positions and more time rolling and cutting.

SAFETY BREAK AWAY

Shear pins on the boom are mounted in 4 places so if you ever run into trouble you’re protected from large scale damage.

200 SERIES FLAIL TEETH

Currently available on our 200 Series Brush Fire mulchers, these flail type cutters are an economic and efficient way to beat back heavy vegetation and light to moderate brush. Ideally suited for small carriers, these flails provide good cutting performance and great mulching. Bolt-on replaceable for quick and easy servicing, even in the field.

Upgrade to our Heavy Blade Teeth and instantly increase your mulching capacity. These upgraded heavy duty blade teeth are 6mm thick and will allow you to double your brush size mulching capacity without any other equipment adjustments required.

SOLID FLAT FREE TIRE

The durable solid flat free tire achieves a floating deck effect which takes the unit weight off the skid steer and with adjustable height positions you can change depending on cutting application.

MAXIMUM MOWING SIZE

(Brush Diameter in Inches)

* Running a skidsteer at half throttle is ideal

* Running a skidsteer at half throttle is ideal

OPTION #1 – JOY STICK CONTROL WITH 4 LIVE PINS

The ideal solution, the operator can easily control both functions (tilt & boom) of the Boom Mower using your skidsteer’s joy stick buttons. Requires 4 live pins in a14-pin plug and 4 button joy stick controls.

INCLUDED PARTS IN KIT :
WLD004904 – 4 live pins in a 14-pin plug

OPTION #2 – JOY STICK CONTROL WITH 3 LIVE PINS

Another option to still use your built in joy stick controls, but if you only have 3 live pins in a 14-pin plug. The tilt is operated with 2 buttons, your toggle switch on the joy stick will switch to boom control.

OPERATOR MUST HOLD TWO BUTTONS FOR SOME FUNCTIONS.

INCLUDED PARTS IN KIT :
WLD004905 – 3 live pins in a 14-pin plug

OPTION #3 – CONTROL BOX WITH 4 LIVE PINS

Another option for contolling the Boom Mower is using our auxiliary control box. This control box uses 12V power, connects into the Boom Mower using 4 live pins in a 14-pin plug and sits on the operator’s lap. This is a 2 button control box that controls both functions (lift & boom) of the Boom Mower using one hand. Requires 4 live auxiliary pins.

INCLUDED PARTS IN KIT :
WLD004904 – 4 live pins in a 14-pin plug
WLD004906 – Control Box with 12V Plug

OPTION #4 – CONTROL BOX WITH 3 LIVE PINS

You can also use our auxiliary control box with 3 live pins. The control box uses 12V power, connects into the Boom Mower using 3 live pins in a 14-pin plug and sits on the operator’s lap. This control box is a single button control so the operator must use both hands to operate. The button controls the tilt function, then the toggle switches control to the boom operation.

INCLUDED PARTS IN KIT :
WLD004905 – 3 live pins in a 14-pin plug
WLD004907 – Control Box with 12V Plug
