WP1840 Wood Processor | Trailer | 20 Ton | 40HP Vanguard | Opens 26″ | Live Deck feed | 12′ Conveyor

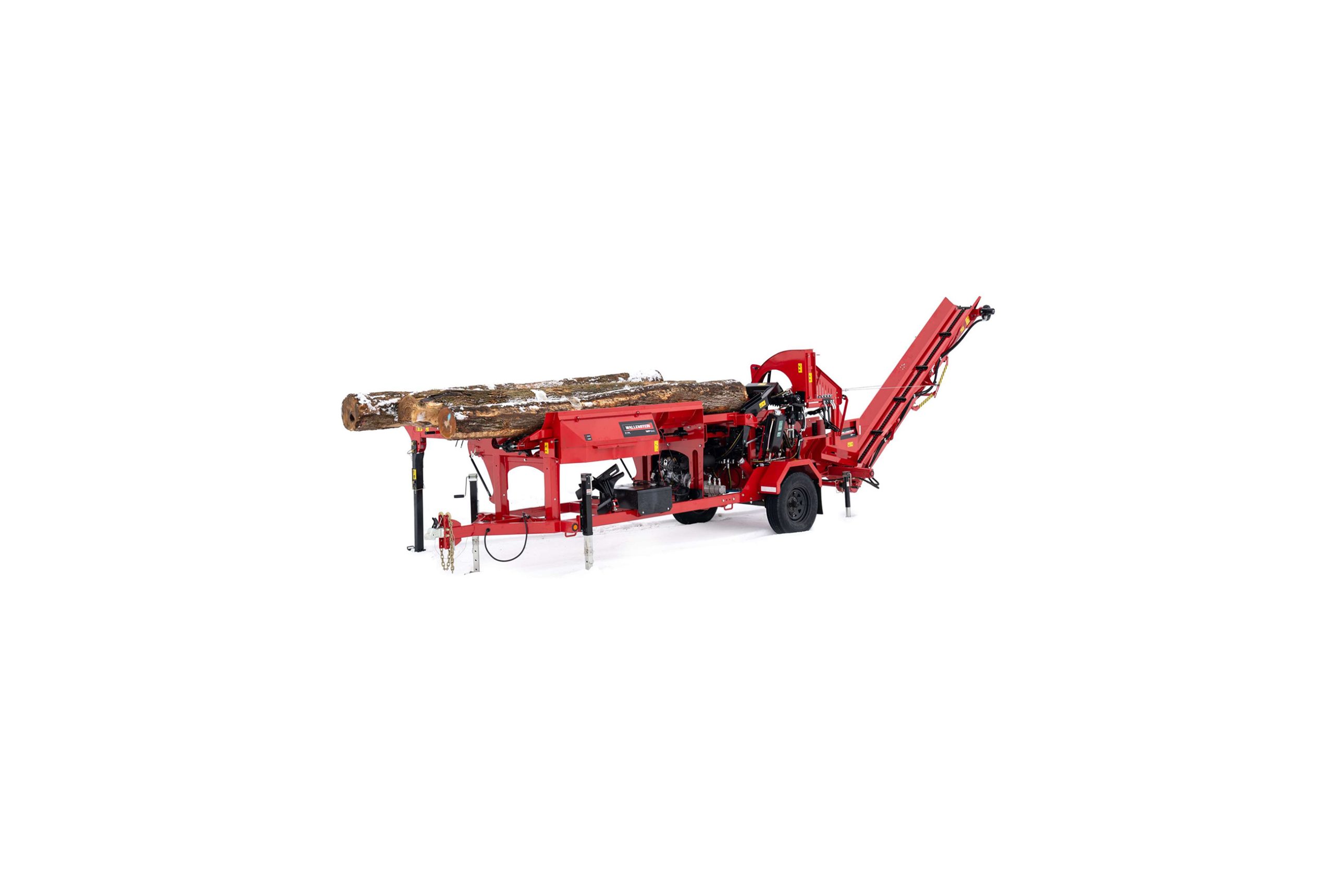

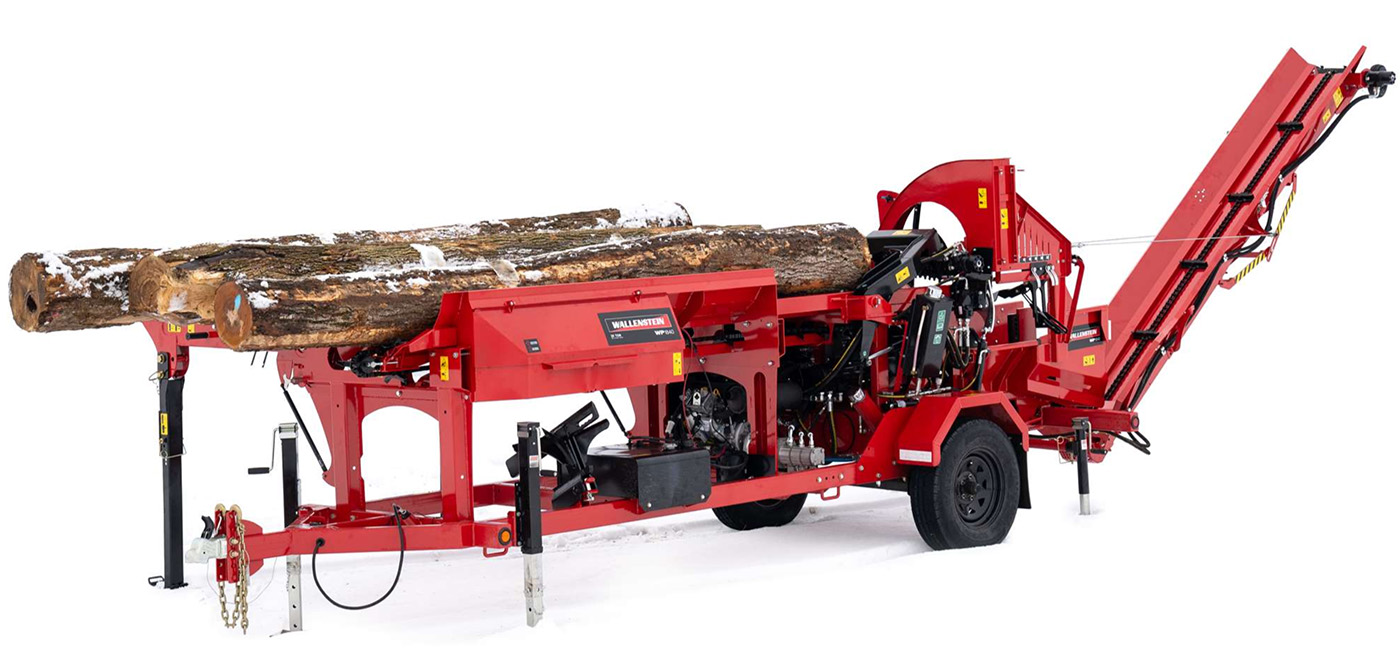

Wallenstein WP1840-12 Firewood Processor
- Pull Type
- 12′ Integrated Conveyor
- 20 Ton Split Force
- Load, Cut, & Split
- Hydraulic Saw
20 ton split force, the WP1840-12 towable wood processor (12′ integrated conveyor) is commercially designed to load, block, split, and pile without wasting time and when time is money. The controls are at your fingertips and when processing cords of wood is your game, the WP1840-12 is your tool to get the job done fast.
| Split Force | 20 Ton |
| Engine | Vanguard® 40 hp (993 cc) EFI |
| Split Opening | 26″ (66 cm) |
| Average Cut to Cut Cycle Time | 12 Seconds |
| Full Stroke Splitting Cycle Time | 6.5 Seconds |
| Cylinder Diameter | 4″ (10 cm) |
| Recommended Log Diameter | 16″ (31 cm) |
| Maximum Log Diameter | 18″ (46 cm) |
| Maximum Log Length | 192″ (488 cm) |
| Log Trough Length | 150″ (381 cm) |
| Log Deck Type | Folding Two-Stage Live Deck |
| Log Deck Length | 70″ (178 cm) |
| Log Deck Width | 72″ (183 cm) |
| Log Deck Height | 53″ (135 cm) |
| Saw Bar | Oregon® 25″ (64 cm) Harvester Bar |
| Saw Chain | 18HX 0.404 |
| Saw Drive | Hydraulic Gear Motor |
| Bar Oiler | Automatic |
| Saw Bar Oil Reservoir Capacity | 1.5 US gal (5.6 l) |
| Hydraulic Pump – Stage 1 | 14 gpm (53 lpm) |
| Hydraulic Pump – Stage 2 | 7.75 gpm (29.3 lpm) |
| Hydraulic Pump – Stage 3 | 4.15 gpm (15.7 lpm) |
| Splitter Chute Clearance | 20″ (51 cm) |
| Throughput | Up to 3.5 Cords Per Hour |
| Tires | ST205/75R15 |
| Hitch | 2″ Ladder Style Ball Coupler |
| Tongue Weight | 480 lbs (218 kg) |
| Total Weight | 3700 lbs (1450 kg) |
| Dimensions Open (LxWxH) | 232″ x 114″ x 76″ (589 cm x 289 cm x 193 cm) |
| Dimensions Folded (LxWxH) | 232″ x 66″ x 105″ (589 cm x 167 cm x 266 cm) |
| Hydraulic Capacity | 26 US gal (102 l) |
| Fuel Tank Capacity | 10 US gal (38 l) |
| Included Conveyor | 12′ Integrated Conveyor |
Auto Return
After your split, simply pull the lever into the return position which will engage the auto return detent. The cylinder will retract automatically, allowing you to focus on your next piece.
Highway Towable
Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
|---|
