WLWP1840
Wallenstein WP1840 Wood Processor | Trailer | 20 Ton | 40 HP Vanguard | Opens 26″ | Live Deck Infeed
$53,015.00
Weight: 3700lbs

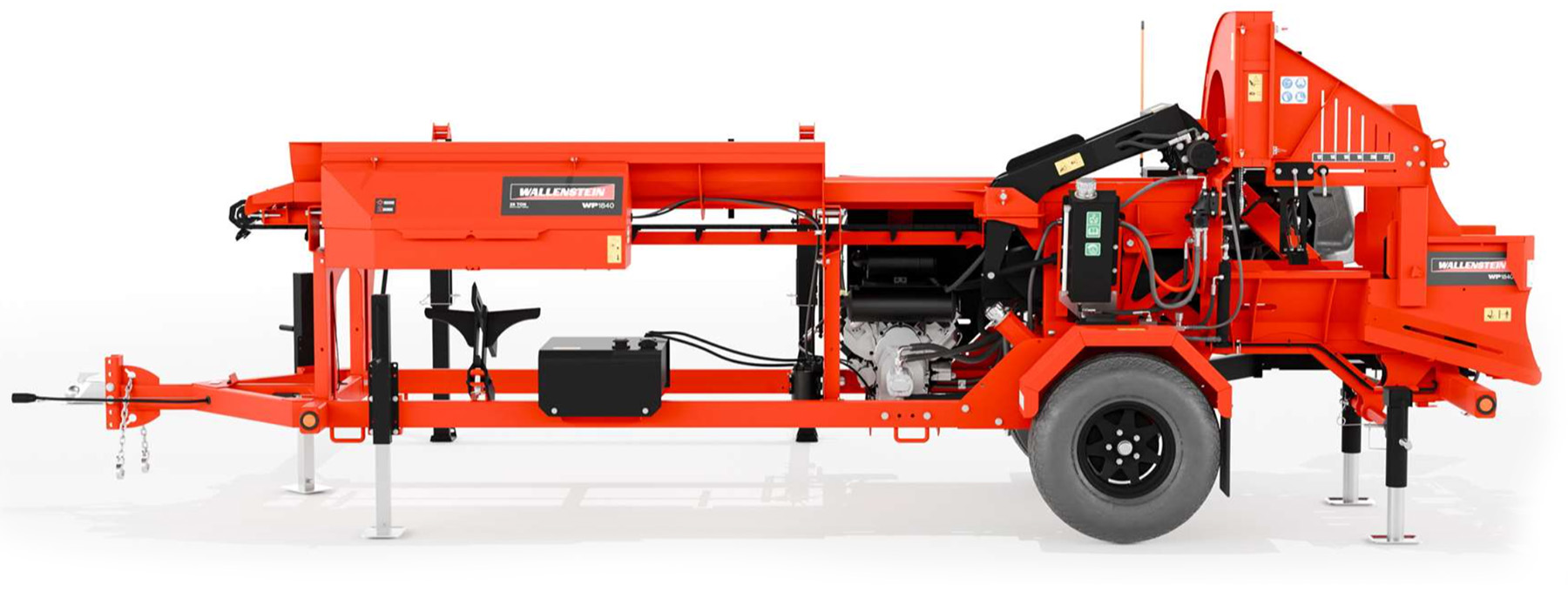

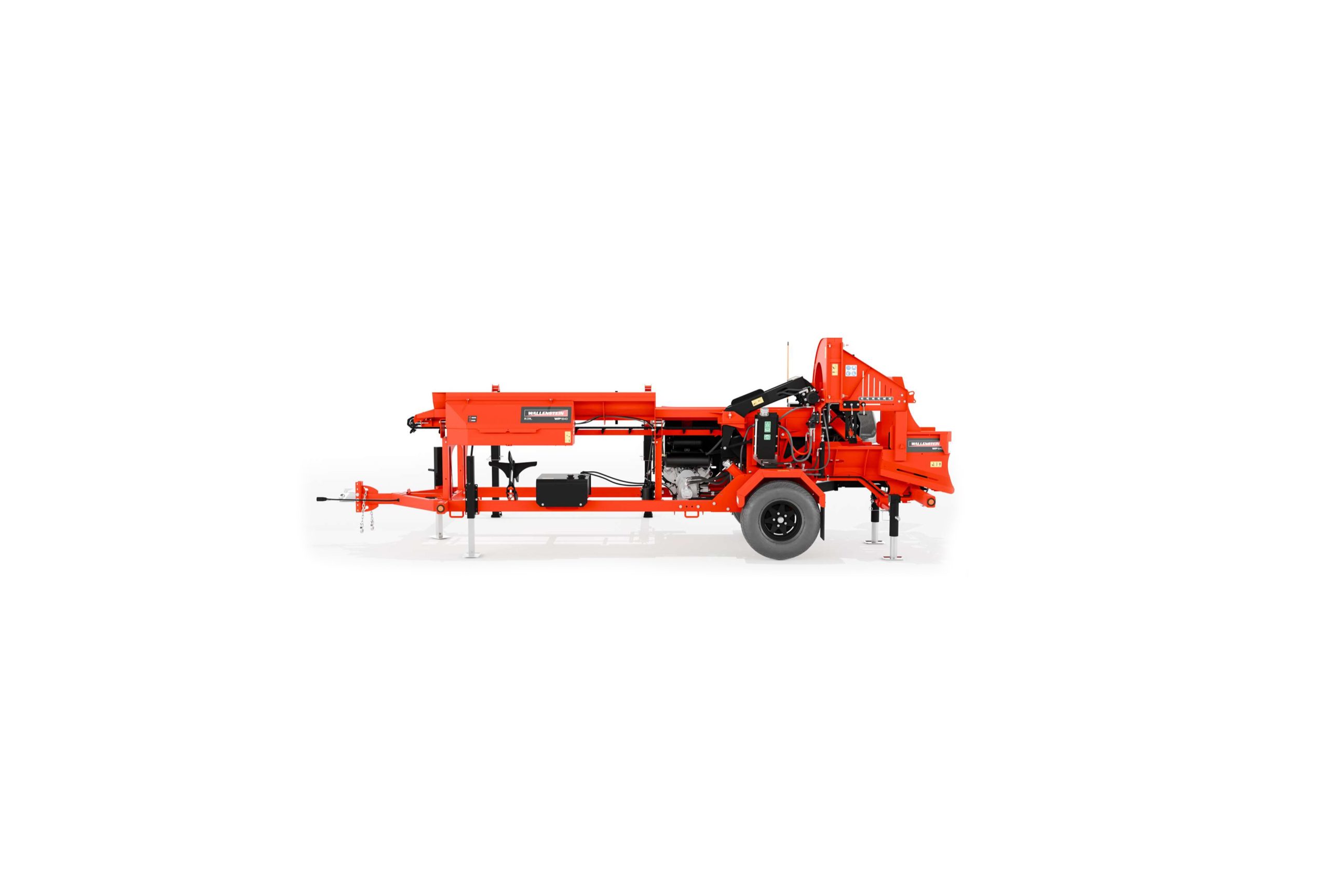

Wallenstein WP1840 Firewood Processor
- Pull Type
- 20 Ton Split Force
- Load, Cut, & Split
20 ton split force, the WP1840 towable wood processor (without conveyor) is commercially designed to load, block, split, and pile without wasting time and when time is money. The controls are at your fingertips and when processing cords of wood is your game, the WP1840 is your tool to get the job done fast.
| Split Force | 20 Ton |
| Engine | Vanguard® 40 hp (993 cc) EFI |
| Split Opening | 26″ (66 cm) |
| Average Cut to Cut Cycle Time | 12 Seconds |
| Full Stroke Splitting Cycle Time | 6.5 Seconds |
| Cylinder Diameter | 4″ (10 cm) |
| Recommended Log Diameter | 16″ (31 cm) |
| Maximum Log Diameter | 18″ (46 cm) |
| Maximum Log Length | 192″ (488 cm) |
| Log Trough Length | 150″ (381 cm) |
| Log Deck Type | Folding Two-Stage Live Deck |
| Log Deck Length | 70″ (178 cm) |
| Log Deck Width | 72″ (183 cm) |
| Log Deck Height | 53″ (135 cm) |
| Saw Bar | Oregon® 25″ (64 cm) Harvester Bar |
| Saw Chain | 18HX 0.404 |
| Saw Drive | Hydraulic Gear Motor |
| Bar Oiler | Automatic |
| Saw Bar Oil Reservoir Capacity | 1.5 US gal (5.6 l) |
| Hydraulic Pump – Stage 1 | 14 gpm (53 lpm) |
| Hydraulic Pump – Stage 2 | 7.75 gpm (29.3 lpm) |
| Hydraulic Pump – Stage 3 | 4.15 gpm (15.7 lpm) |
| Splitter Chute Clearance | 20″ (51 cm) |
| Throughput | Up to 3.5 Cords Per Hour |
| Tires | ST205/75R15 |
| Hitch | 2″ Ladder Style Ball Coupler |
| Tongue Weight | 480 lbs (218 kg) |
| Total Weight | 3700 lbs (1450 kg) |
| Dimensions Open (LxWxH) | 232″ x 114″ x 76″ (589 cm x 289 cm x 193 cm) |
| Dimensions Folded (LxWxH) | 232″ x 66″ x 105″ (589 cm x 167 cm x 266 cm) |
| Hydraulic Capacity | 26 US gal (102 l) |
| Fuel Tank Capacity | 10 US gal (38 l) |
| Included Conveyor | None |
| Trailer Light Kit | Standard |
Adjustable 4-Way and 6-Way Wedge
Easily adjust the wedge height to accommodate different sized logs.
Auto Return
After your split, simply pull the lever into the return position which will engage the auto return detent. The cylinder will retract automatically, allowing you to focus on your next piece.
Automatic Chain Lube
Pressure activated chainsaw lube keeps the saw bar oiled without wasting excess oil.
Block Dropper
Gas spring actuated adjustable shelf catches the block and neatly drops it in the trough for hassle-free splitting.
Easy Fold Live Deck
Balanced pivot allows easy employment and storage of live deck by hand without any tools.
Electric Brakes
Go easy on your vehicle with electric brakes.
Four Crank Jacks
Level your processor during setup using height adjustable jacks.
Highway Towable
Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.
Hydraulic Adjustable Wedge
Easy adjustment of splitting wedge by lever.
Large Toolbox
Store a medium length chainsaw, spare chains, small tools and more in the covered lockable toolbox.
Length Indicator
Set the indicator for consistant firewood length.
Top Roller
The top roller follows the log’s contour and maintains consistent pressure during log infeed then provides automatic clamp with every cut.
Torflex® Suspension Axle
Axles are designed to absorb road impact, providing a smoother towing experience.
| Weight | 3700 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
