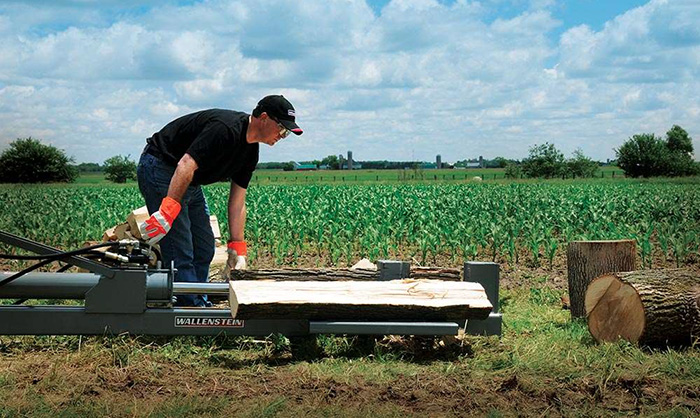

Wallenstein WX330 Log Splitter | CAT I | 25 Ton | 13 GPM | Horiz | Opens 48″ | 4.5″Cyl
$3,590.00
Weight: 650lbs
Wallenstein WX330 Log Splitters
- 3PT
- 25 Ton Split Force
- Horizontal Splitting
- Wide Wedge
25 ton split force, the WX330 horizontal 3-point hitch hydraulic log splitter is designed with a wide wedge which makes that wood block pop” early in the split process. Ideal for those who have a compact tractor and want split wood up to 48″ long for your outdoor wood furnace.
| Split Force | 25 Ton |
| Recommended Hydraulic Flow | 13 gpm (50 lpm) |
| Split Opening | 48″ (122 cm) |
| Orientation | Horizontal |
| Average Splitter Cycle Time | 15.24 Seconds *depends on flow from tractor |
| Full Cycle | 30.48 Seconds *depends on flow from tractor |
| Cylinder Diameter | 4.5″ (11 cm) |
| Wedge Height | 10″ (25 cm) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 425 lbs (193 kg) |
| Dimensions (LxWxH) | 120″ x 30″ x 24″ (305 cm x 77 cm x 61 cm) |
| Mounting System | Cat I, iMatch™ & Quick Hitch Compatible |
Direct Pressure
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
Hands Free Return Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral.
Cat I iMatch Quick Hitch Compatible Easily attach to your tractor without leaving your seat.
Grip-Strip Stop Block Engineered to support an enhanced split action
Wide Wedge Wide wedge spreads and pops the log in a short distance, reducing cycle time. Wide Log shelves Wide shelves help keep logs in place while splitting.
| Weight | 650 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
