WLWX430
Wallenstein WX430 Log Splitter | Universal Skid | 25 Ton | 13 GPM | Inv Horz | Opens 36″ | 4.5″ Cyl
$3,350.00
Weight: 585lbs

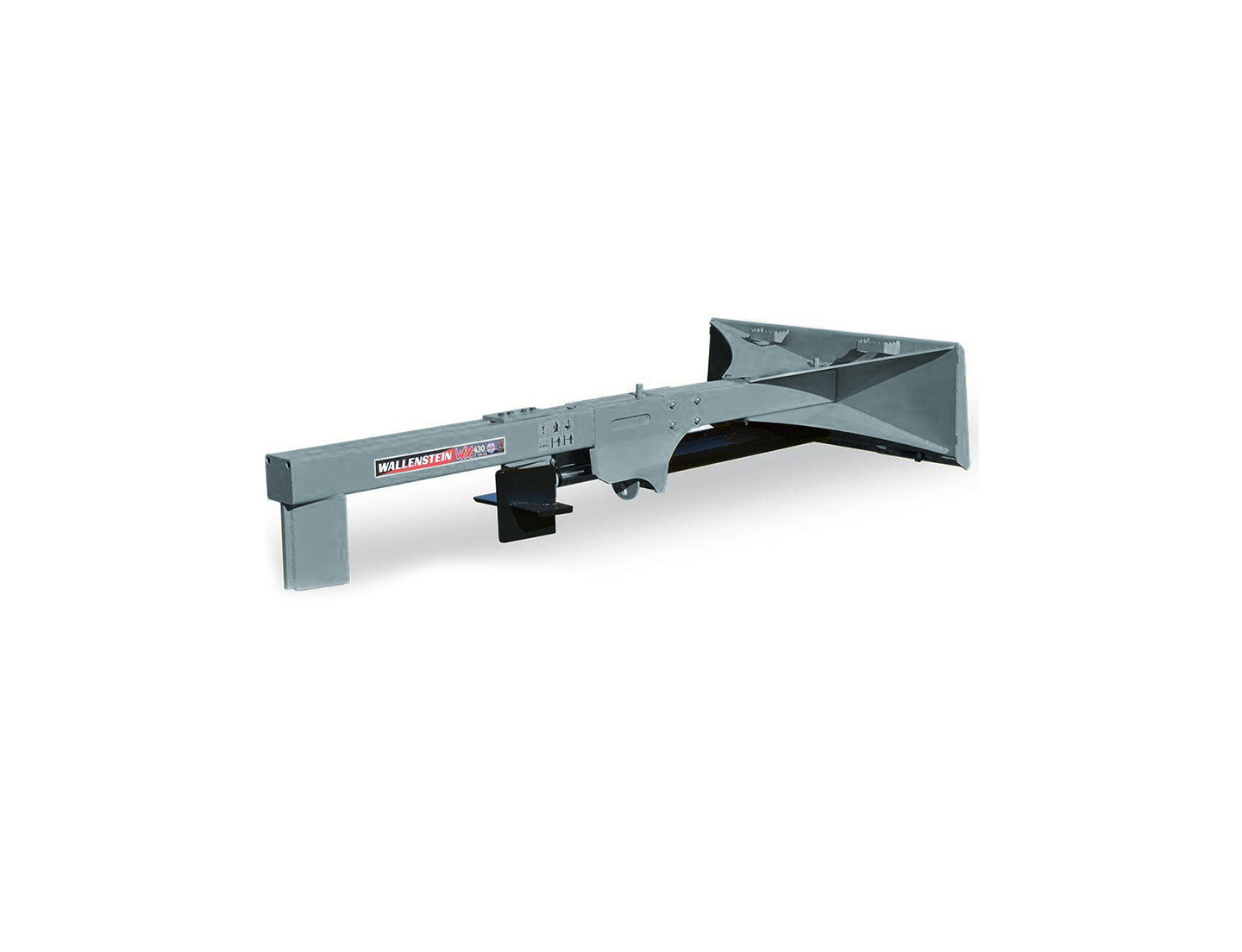

Wallenstein WX430 Log Splitters
- Universal Skid Mount
- 25 Ton Split Force
- Inverted Horizontal Splitting
- Wide Wedge

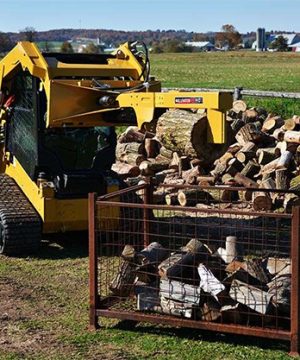

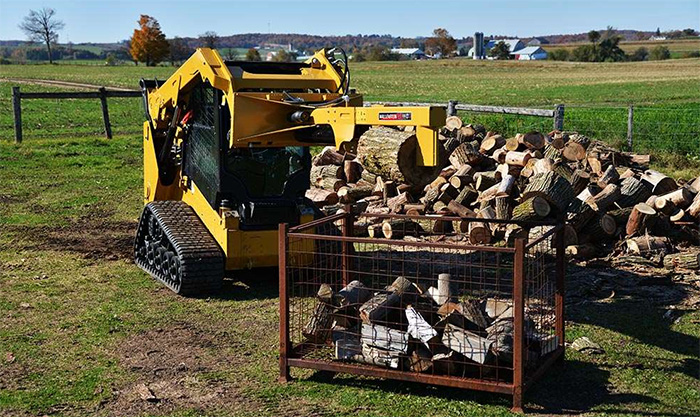

25 ton split force, your WX430 inverted horizontal skidsteer driven log splitter is designed to grab the blocked pieces and split with the wide wedge which makes that wood block “pop” early in the split process. Operated from the cab of the skidsteer, there is no need to bend over and load logs onto the splitting bed. Great for use on your rural and woodlot properties, this splitter is built for everyday use. The 36″ splitting bed also makes this a great choice for your outdoor wood furnace.
| Split Force | 25 Ton |
| Recommended Hydraulic Flow | 13 gpm (50 lpm) |
| Split Opening | 36″ (91 cm) |
| Orientation | Inverted Horizontal |
| Average Splitter Cycle Time | 11.43 Seconds *depends on flow from skidsteer |
| Full Cycle | 22.86 Seconds *depends on flow from skidsteer |
| Cylinder Diameter | 4.5″ (11 cm) |
| Wedge Height | 10″ (25 cm) |
| Includes Hydraulic Hoses and Couplers | Yes |
| Total Weight | 320 lbs (146 kg) |
| Dimensions (LxWxH) | 96″ x 36″ x 22″ (244 cm x 91 cm x 56 cm) |
| Mounting System | Universal Quick Attach |
Direct Pressure
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
Block Stripper Plates Easily remove gnarly blocks that stick to the splitting wedge.
Wide Wedge Wide wedge spreads and pops the log in a short distance, reducing cycle time.
| Weight | 585 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
