WX980L Hwy Splitter | Trailer | 31 Ton | 10HP Vanguard | Horz/Vert | Opens 24″ | 5″ Cyl | Light Kit
$4,740.00
Weight: 635lbs

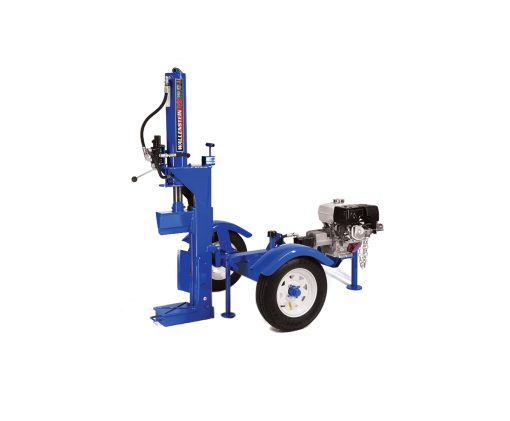

Wallenstein WX980L Log Splitters
- Towable
- 31 Ton Split Force
- Horizontal/Vertical Opening
- Wide Wedge
31 ton split force, the WX980 (lights) horizontal/vertical towable log splitter is designed with a wide wedge which makes that wood block “pop” early in the split process. The vertical position helps with those heavy logs eliminating the need to lift them up onto the splitting bed. Great for use on your rural and woodlot properties or for any rental business, this splitter is built for everyday use.
| Split Force | 31 Ton |
| Engine | Vanguard® 10 hp (305 cc) |
| Split Opening | 24″ (61 cm) |
| Orientation | Horizontal / Vertical |
| Average Splitter Cycle Time | 6.69 Seconds |
| Full Cycle | 13.38 Seconds |
| Cylinder Diameter | 5″ (13 cm) |
| Wedge Height | 10″ (25 cm) |
| Bed Height | 26″ (66 cm) |
| Tires | 5.30 x 12 |
| Hitch | 2″ Ball |
| Total Weight | 635 lbs (288 kg) |
| Dimensions (LxWxH) | 80″ x 50″ x 42″ (203 cm x 127 cm x 107 cm) |
| Hydraulic Capacity | 4.5 US gal (17 l) |
Direct Pressure
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
Hands Free Return Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral.
Two Stage Hydraulic Pump Maximize your efficiency with the 2-stage pump that moves quickly and splits powerfully.
Vertical & Horizontal Splitting Quickly and easily switch into the vertical position to split logs too large to lift onto the splitting bed.
Wide Wedge Wide wedge spreads and pops the log in a short distance, reducing cycle time. Highway Towable Transport your unit with hitch, safety chains, highway tires, and full trailer lighting. Factory Installed Light Kit L Model units come with a factory installed light kit equipped with brake lights and turn signals. They use a standard 4-pin connector.
| Weight | 635 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
