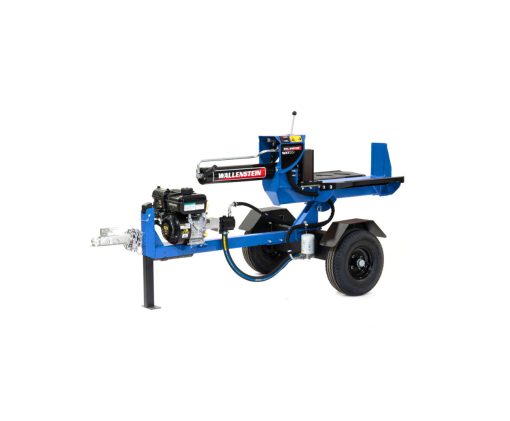

Wallenstein WXT20V Log Splitter | Trailer | 20 Ton | Horz/Vert | Opens 24″ | 4″ Cyl
$4,245.00
Weight: 480lbs
Wallenstein WXT20V Log Splitters
- Towable
- 20 Ton Split Force
- Horizontal/Vertical Splitting
- Wide Wedge
20 ton split force, the WXT20V horizontal/vertical towable log splitter is designed with a wide wedge which makes that wood block “pop” early in the split process. The vertical position helps with those heavy logs eliminating the need to lift them up onto the splitting bed. Great for use on your rural and woodlot properties or for any rental business, this splitter is built for everyday use.
| Split Force | 20 Ton |
| Engine | Vanguard® 6.5 hp (203 cc) |
| Split Opening | 24″ (61 cm) |
| Orientation | Horizontal / Vertical |
| Average Splitter Cycle Time | 6.44 Seconds |
| Full Cycle | 12.88 Seconds |
| Cylinder Diameter | 4″ (10cm) |
| Wedge Height | 9.5″ (24 cm) |
| Bed Height | 27.5″ (69.85 cm) |
| Tires | 18.2″ (46.23 cm) |
| Hitch | 2″ Ball |
| Tongue Weight | 64.7 lbs (29 kg) |
| Total Weight | 480 lbs (218 kg) |
| Dimensions (LxWxH) | 97″ x 43.2″ x 48.8″ (246 cm x 110 cm x 124 cm) |
| Hydraulic Capacity | 3.7 US Gal (14 l) |
Direct Pressure
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
Hands Free Return Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral.
Two Stage Hydraulic Pump Maximize your efficiency with the 2-stage pump that moves quickly and splits powerfully.
Vertical & Horizontal Splitting Quickly and easily switch into the vertical position to split logs too large to lift onto the splitting bed.
Wide Wedge Wide wedge spreads and pops the log in a short distance, reducing cycle time.
| Weight | 480 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
